Quick Details
-
Model Number:
-
YS-G-THPT09
-
Accuracy:
-
Class I, II, A and B
-
Temperature range:
-
-200~650℃
-
Mounting:
-
Thread/flange/none
-
Pairs quantity of element:
-
Simplex/duplex
-
Certificate:
-
CE ISO ROHS
-
Types of terminal box:
-
Anti-spray/water-proof
-
Probe size:
-
customized
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Model Number:
-
YS-G-THPT09
-
Accuracy:
-
Class I, II, A and B
-
Temperature range:
-
-200~650℃
-
Mounting:
-
Thread/flange/none
-
Pairs quantity of element:
-
Simplex/duplex
-
Certificate:
-
CE ISO ROHS
-
Types of terminal box:
-
Anti-spray/water-proof
-
Probe size:
-
customized
Product Description

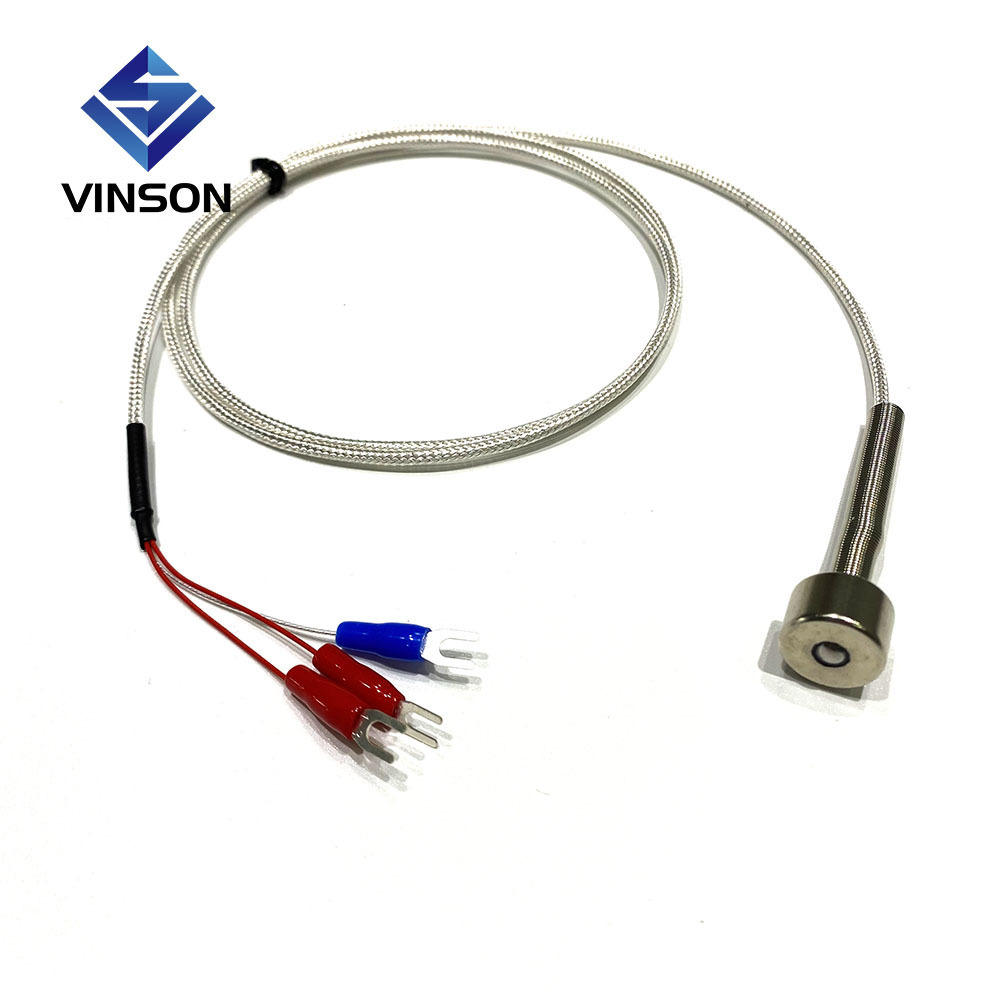

Vinson magnetic surface thermocouple K J E type rtd pt100 type industrial temperature sensor
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation
Specification
|
Classify
|
Armored thermocouple
|
Assembly Thermocouple
|
|
|
Model
|
YS-WRK
|
YS-WR
|
|
|
Thermocouple type
|
K,N,E,J,T,S,B,R
|
K,N,E,J,T,S,B,R
|
|
|
Thermocouple diameter (mm)
|
φ3,φ4 ,φ4.5 ,φ5,φ6 ,φ8
|
φ12,φ16,φ20,φ25,etc.
|
|
|
Sheath material
|
304,316,310s, Incoloy600 etc.
|
304,316,310s, Incoloy600 etc.
|
|
|
Probe structure
|
Grounded,Ungrouned,Exposed(YS-WR)
|
|
|
|
Core number
|
1,2,4
|
|
|
|
Terminal box(optional)
|
Cast aluminum,Stainless steel
|
|
|
|
Accuracy
|
±1.5℃/±0.5℃ or 0.4%|t|℃
|
|
|
|
Electrical connection
|
Thread
|
|
|
|
Explosion proof level
|
√
|
|
|
|
Installation
|
Thread/flange
|
|
|
|
Output Signal
|
mV,4-20mA
|
|
|
Model and tolerance
|
Conductor
|
Model
|
Type
|
Use temperature°C
(short time)
|
Use temperature°C
(long time)
|
|
Ni-Cr / Ni-Si
|
WRKK
|
K
|
0-1200°C
|
0-900°C
|
|
Ni-Cr-Si / Ni-Cr-Mg
|
WRKN
|
N
|
0-1000°C
|
0-1000°C
|
|
Ni-Cr / Ni-Cu
|
WRKE
|
E
|
0-700°C
|
0-600°C
|
|
Fe / Cu-Ni
|
WRKJ
|
J
|
0-600°C
|
0-500°C
|
|
Cu / Cu-Ni
|
WRKT
|
T
|
0-400°C
|
0-350°C
|
|
Pt-Rh10 / Pt
|
WRKS
|
S
|
0-1600°C
|
0-1300°C
|
|
Pt-Rh13 / Pt
|
WRKR
|
R
|
0-1600°C
|
0-1300°C
|
|
Pt-Rh30 / Pt6
|
WRKB
|
B
|
0-1800°C
|
0-1600°C
|
|
Classification
|
Type
|
Standard Model
|
Features
|
Temperature
|
Material
|
Use Requirement
|
|
Resistance
|
C
|
WZP
|
Special
|
0~2300℃
|
W/Re
|
Vacuum field
|
|
|
PT10
|
WZP
|
Normal
|
-200~650℃
|
Pt
|
Stable
|
|
|
PT100
|
WZP
|
Normal
|
-200~650℃
|
Pt
|
With Different Range
|
|
|
PT1000
|
WZP
|
Normal
|
-200~650℃
|
Pt
|
|
|
|
Cu50
|
WZC
|
Normal
|
-50~100℃
|
Cu
|
|
|
|
Cu100
|
WZC
|
Normal
|
-50~100℃
|
Cu
|
|
|
|
PT500
|
WZP
|
Special
|
-200~650℃
|
Pt
|
|
|
|
PT200
|
WZP
|
Special
|
-200~650℃
|
Pt
|
|
|
Thermistor
|
NTC
|
|
Low Accurcy
|
|
|
|
Application
1. Widely Used In Science and Industry
2. Temperature Measurement for kilns
3.Gas Turbine Exhaust Application
4. Used For Diesel Engines and Other Industrial Processes
Diameter and length of probe
Material of probe
Size of thread
Material and length of lead wire
