Quick Details
-
Voltage:
-
customized
-
Disc Dia.:
-
Auto Spray Booth
-
No Load Speed:
-
0.25-0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingderixin
-
Warranty:
-
12 Months
-
Certification:
-
ce
-
Spray Booth:
-
Telescopic Movable
-
Intake Air Way:
-
Lateral straight negative pressure type
-
Fan Power:
-
11KW
-
Noise:
-
Noise < 80 Db
-
Illumination:
-
Lux
-
Air Speed:
-
> 0.4m/s
-
Fileration Effeciency:
-
>98%
-
Over-sprayed Paints:
-
Filter paper and fiberglass filter
-
Wastw gas:
-
Activated carbon
Quick Details
-
Power:
-
44.5kw
-
External Size:
-
8200mm(L)*4700mm(W)*4000mm(H)
-
Internal Size:
-
8000mm(L)*4500mm(W)*3500mm(H)
-
Voltage:
-
customized
-
Disc Dia.:
-
Auto Spray Booth
-
No Load Speed:
-
0.25-0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingderixin
-
Warranty:
-
12 Months
-
Certification:
-
ce
-
Spray Booth:
-
Telescopic Movable
-
Intake Air Way:
-
Lateral straight negative pressure type
-
Fan Power:
-
11KW
-
Noise:
-
Noise < 80 Db
-
Illumination:
-
Lux
-
Air Speed:
-
> 0.4m/s
-
Fileration Effeciency:
-
>98%
-
Over-sprayed Paints:
-
Filter paper and fiberglass filter
-
Wastw gas:
-
Activated carbon

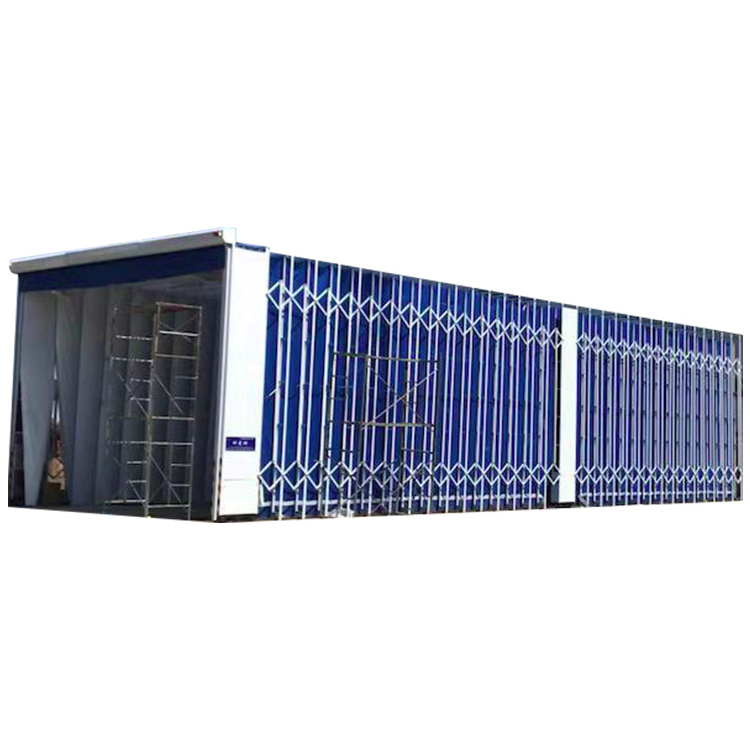

Top Sale Folded Spray Booth / Folding Spray Booth / Mobile Spray Booth
For big work piece
1-Specification
|
Inside Size :(mm) (L*W*H) |
8000×4500×3500 |
Total Power |
12kw |
||||
|
Cabin System |
assistant carriage |
Primary and secondary and post-holder carriage is mainly composed of 80*80mm square steel pipe, welded into steel frame structure on both sides of the main carriage, there is a removable gear motor. |
|||||
|
back fixation |
|||||||
|
Linkage |
Consist of 40 * 60 square steel tube and bushings, shaft pin and other components. |
||||||
|
Fire-proof soft curtain |
From anti-flammable soft cloth curtain, transparent PVC soft curtain on both sides of the chamber body for observing interior operating conditions at any time during the day. |
||||||
|
Guide rail and pulleys |
4 sets of rails, made by 12kg rail track steel underground. Steel wheel welded with the primary and secondary carriage, can slide freely on the track. |
||||||
|
Air circulation System |
Exhaust fan |
Putting the back of the booth outside, have air valves for adjusting the air pressure. |
|||||
|
Quantity |
1 sets |
Power |
11 kw |
||||
|
Pressure |
1767-1399pa |
Air flow |
27375-50712m 3 /h |
||||
|
The frame for exhaust fan is made by square pipe and galvanized steel, and soft connection, the exhaust air duct is made by 1mm zinc plates. |
|||||||
|
Air Purification System |
Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. It’s Filtering Rate Reaches 98%. |
||||||
|
Light System |
Two rows of roof lights on the ceiling, 12 sets of the carriae. |
||||||
|
E-Control System |
Spray & Baking Switch, Light Switch, Emergency Stop, Alarm, timer, etc |
||||||
|
Environmental System |
Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards |
||||||
2-Other Models
|
No. |
Model |
Name |
|
1 |
MD-CBD |
Diesel Heater |
|
2 |
MD-CBG |
Gas Heater |
|
3 |
MD-CBE |
IR Heater |
|
Choose your favorite one according to your requirement |
||
