Quick Details
-
Power:
-
15000w
-
Weight:
-
450 KG
-
Dimension(L*W*H):
-
880*880*1380mm
-
Name:
-
Commercial Waffle Maker Pizza Cone Machine
-
Application:
-
Ice cream sugar cone Baking Machine Cream Cones
-
Capacity:
-
600-800 pieces/h
-
Baking circle:
-
1-2 min
-
Open and close molding:
-
Manual cone pizza machine
-
Packaging size:
-
900*1000*1540mm
-
Product processing:
-
Batter injection, cone baking,cone rolling
-
Gross weight:
-
510kg
-
Color:
-
Silver hot sale pizza cone oven
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OCEAN MACHINERY
-
Voltage:
-
220V/380V
-
Power:
-
15000w
-
Weight:
-
450 KG
-
Dimension(L*W*H):
-
880*880*1380mm
-
Name:
-
Commercial Waffle Maker Pizza Cone Machine
-
Application:
-
Ice cream sugar cone Baking Machine Cream Cones
-
Capacity:
-
600-800 pieces/h
-
Baking circle:
-
1-2 min
-
Open and close molding:
-
Manual cone pizza machine
-
Packaging size:
-
900*1000*1540mm
-
Product processing:
-
Batter injection, cone baking,cone rolling
-
Gross weight:
-
510kg
-
Color:
-
Silver hot sale pizza cone oven

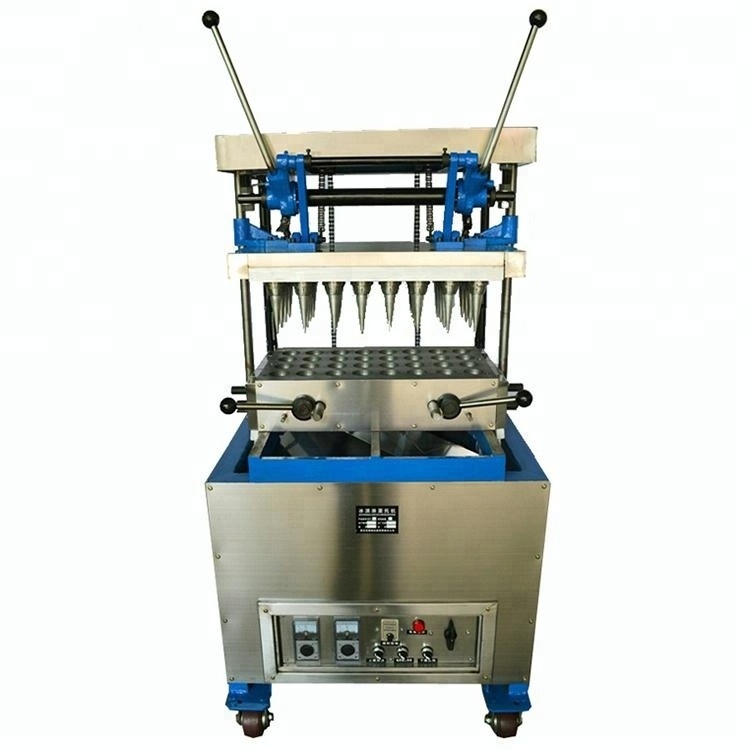

OC-32 Commercial Waffle Maker Pizza Cone Machine
Brief Introduction of Automatic Ice Cream Sugar Cone Maker :
The machine is divided into the upper mold and the lower mold, the upper mold through the thermostat knob when the temperature first tune up, the temperature rose up to pull up, the lower mold closed, poured into pastes, and then the upper die and the lower mold together and about one to two minutes after,the cone can be molded, the mode pull up the lower die opened, the cone will automatically fall into the following channels and slide out.
Features of Automatic Ice Cream Sugar Cone Maker:
1. Speed baking: 1-2mins
2. Your logo carving on the cone mould is possible
3. We can design your favorable cone shape according to your sample
4. High Production
5. Easy to operate, Easy for cleaning
6. Low noise, High Capacity with low Power
| Technical Parameters of Automatic Ice Cream Cone Maker | |||||||||||
| Model | OC-2 | OC-4 | OC-10 | OC-12 | OC-24 | OC-24C | OC-32 | OC-32C | OC-40 | OC-40C | OC-60C |
| Baking heads | 2 | 4 | 10 | 12 | 24 | 24 | 32 | 32 | 40 | 40 | 60 |
| Capacity (pcs/h) | 50-60 | 100-120 | 250-300 | 300-350 | 600-800 | 600-800 | 800-1000 | 800-1000 | 1200-1400 |
1200 -1400 |
2400 -3000 |
| Power(kw) | 1.5 | 2.4 | 4.5 | 6.5 | 12 | 12 | 15 | 15 | 18 | 18 | 21 |
| Dimensions(mm) |
450*350 *700 |
530*430 *650 |
760*600 *1050 |
800*700 *880 |
1050*800 *900 |
730*800 *1370 |
1200*800 *900 |
880*880 *1300 |
1080*800 *1440 |
1080*800 *1440 |
1260*1140 *1640 |
|
Weight(kg) |
45 | 80 | 200 | 180 | 280 | 350 | 320 | 450 | 580 | 600 | 850 |
| Baking circle(min) | 1-2 | ||||||||||
| Open and close molding operation | Manual | ||||||||||
The Ice Cream Cone Types:
The Product Processing of Automatic Ice Cream Sugar Cone Maker:
