Quick Details
-
Application:
-
Tower Crane
-
Quality:
-
High Guarantee
-
Delivery:
-
Express
-
MOQ:
-
1 pc
-
Certification:
-
CE
-
Product Keywords:
-
Ratio
-
Part name:
-
Limit switch
-
Delivery time:
-
Ready to ship
-
Weight:
-
1.5 kg
Quick Details
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
GK
-
Application:
-
Tower Crane
-
Quality:
-
High Guarantee
-
Delivery:
-
Express
-
MOQ:
-
1 pc
-
Certification:
-
CE
-
Product Keywords:
-
Ratio
-
Part name:
-
Limit switch
-
Delivery time:
-
Ready to ship
-
Weight:
-
1.5 kg
1.Specification:

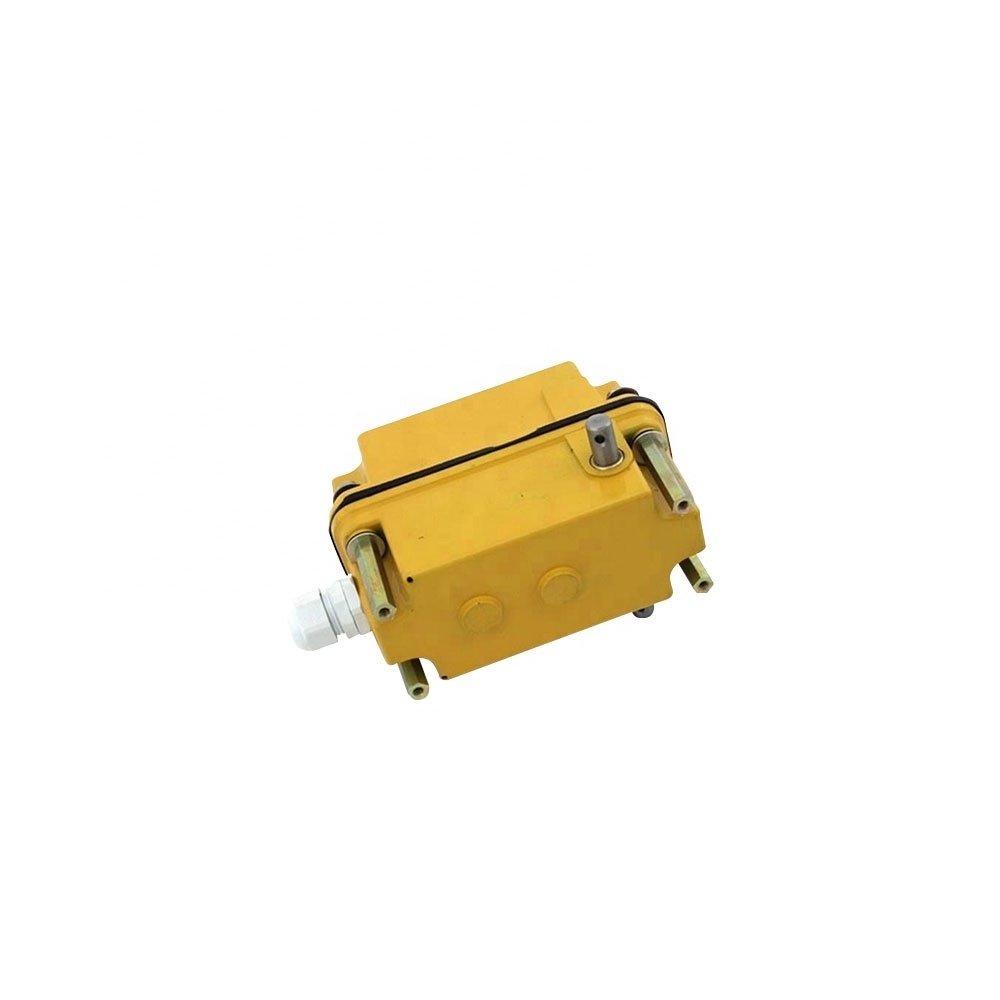

DXZ series multi-functional turning angle type travel limiter is a kind of new safety protection drvice disigned and produced
domestically after the introduction of products from France,applicable to space three-cooodinate bilateral control,control of any position, turning angle and travel and analog sensory control, widely used in tower cranes, port cranes,various windlasses and other construction machinery, as well as control circuit of similar machinery.
The product has a variety of functions, such as small size, large transmission ratio, high accuracy, convenient installation and debugging versatility and so on, having been applied more and more widely.
2.. DXZ limit switch divide drive rate as 1: 13-960, eight specification in all, control loop 1-4 PCS (Non-standard can reach 6 PCS), repeat positioning accuracy≤0.3(turning angle error of memory cam).
|
Drive rate No. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
Drive rate |
1:13 |
1:17 |
1:46 |
1:60 |
1:78 |
1:210 |
1:274 |
1:660 |
1:960 |
3.Product Description:
| ITEM:DXZ | Data | |
| Housing | Aluminum | |
| Rating load | 10A/250VAC | |
| Rated Voltage | AC 220/380V | |
| Rated Current | 6~10A | |
| Operating speed | 1mm-50cm/s | |
| Operating frequency | Mechanical | 120times/min |
| Electrical | 30times/min | |
| Insulation resistance | 100MΩ(Above)DC500V | |
| Contact resistance | 25MΩ(intial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
FAQ
Q1
: Are you a trading company or a factory?
A1
: We are factory.
Q2
: How about the installation?
A2
: Engineer could be sent to your site for installing and inspection.
Q3
: How long is your delivery time?
A3
:
Generally 7-15 days after advance payment.
Q4
: Do you test all your goods before delivery?
A4
: Yes, we have 100% test before delivery.
Q5
: Is it convenient to see visit your factory ?
A5
: Yes,we welcome every customer to visit our company. We also supply to visit our factory by live stream.
Q6
: What certificates do you have?
A6
: CE, TUV, ISO9001
Q7:
What info should I provide with the inquiry?
A7:
Speed ratio
