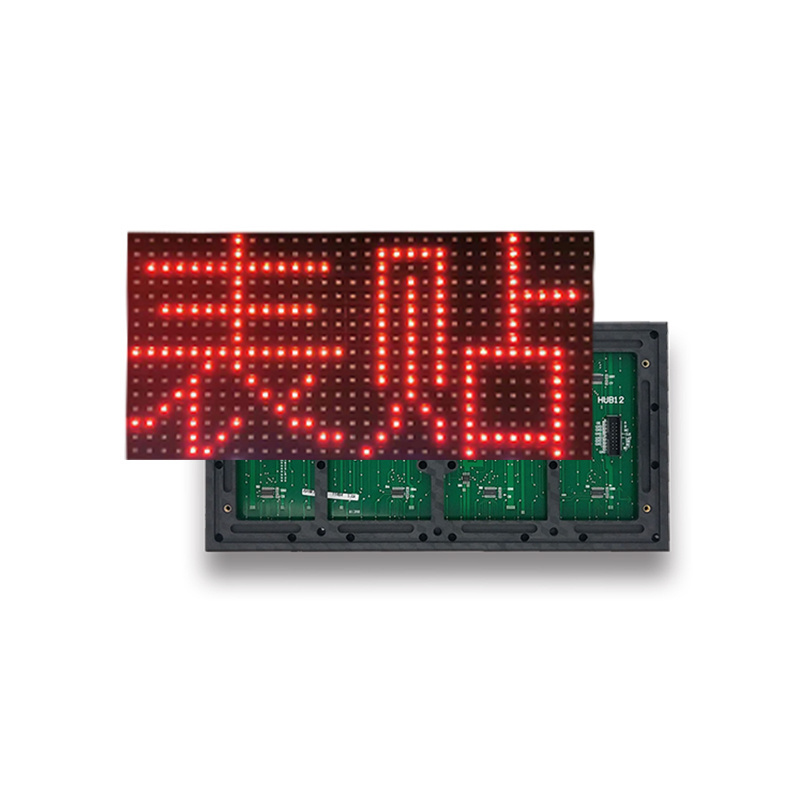

Quick Details
-
Panel Size:
-
320*160
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
P10
-
size:
-
320*160 mm
-
Usage:
-
outdoor
-
Pixel resolution:
-
32dots(W)*16dots(H)
-
Module thickness(mm):
-
15 mm
-
Control method:
-
Synchronization/Asynchronization
-
Drive type:
-
constant current
-
Driving device:
-
Constant drive IC
-
Port type:
-
HUB12
-
Average Power consumption:
-
≤300 W/m²
-
Brightness:
-
≥2500cd/m²
-
Pixel Pitch:
-
10mm, 10
Quick Details
-
Application:
-
Outdoor
-
Brand Name:
-
XinRui
-
Color:
-
1R/1G/1B/IY
-
Panel Size:
-
320*160
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
P10
-
size:
-
320*160 mm
-
Usage:
-
outdoor
-
Pixel resolution:
-
32dots(W)*16dots(H)
-
Module thickness(mm):
-
15 mm
-
Control method:
-
Synchronization/Asynchronization
-
Drive type:
-
constant current
-
Driving device:
-
Constant drive IC
-
Port type:
-
HUB12
-
Average Power consumption:
-
≤300 W/m²
-
Brightness:
-
≥2500cd/m²
-
Pixel Pitch:
-
10mm, 10
Product Description
Specification
|
Parameter NO.
|
Semi-outdoor P10 Single Color
|
Outdoor P10 Single Color
|
Semi-outdoor P10 Double Colors
|
Outdoor P10 Double Colors
|
|||
|
Size of Board(mm)
|
320*160
|
|
|
|
|||
|
Pixel Pitch(mm)
|
10
|
|
|
|
|||
|
Pixel Configuration
|
1R/1G/1B/1W/1Y
|
|
1R+1G/ 1R+1B
|
|
|||
|
Pixel Density (dots/m2)
|
10000
|
|
|
|
|||
|
Driver Chip
|
Constant current Driving
|
|
|
|
|||
|
Brightness of Board (cd/m2)
|
≥1500/1800/1600/1600/1600
|
|
≥2500
|
≥3000
|
|||
|
Board maximum power consumption(W)
|
≤20/17/17/20/17
|
≤20/17/25/17/17
|
≤20.5
|
≤35
|
|||
|
Process Potting
|
No
|
Yes
|
No
|
Yes
|
|||
|
Waterproof Pan
|
No
|
Yes
|
No
|
Yes
|
|||
|
Viewing Angle(Horizontal/Vertical)
|
H100 Degree/V40 Degree |
|
|
|
|||
|
LED Encapsulation way
|
546 /448 Oval
|
|
|
|
|||
|
Resolution of Board (dots)
|
32*16
|
|
|
|
|||
|
Thickness of Board(mm)
|
13
|
25
|
13
|
25
|
|||
|
Weight of Board(Kg)
|
0.4±0.05
|
0.66±0.05
|
0.4±0.05
|
0.73±0.05
|
|||
|
Scanning Control Method (S)
|
1/4
|
|
|
|
|||
|
Configuration Adapter Board
|
Hub 12
|
|
|
|
|||
|
Using Environment of Board
|
Semi-outdoor
|
Outdoor
|
Semi-outdoor
|
Outdoor
|
|||
|
Design Feature
|
Lamp Driving in-one
|
|
|
|
|||
Packing & Delivery
Packing and delivery
3.Package:Flight case/ Anti-shaking wooden case/Carton box.
4. Shipping port: Xiamen, China
5. Warranty time: 1years
6. Leadtime: 15-25 days normally.
7.Shipping term: 25-35 Days by sea/7-10 Days by air/3-5 Days by express.
