Quick Details
-
Brand Name:
-
wolon
-
Use:
-
FTTH
-
Warranty Time:
-
5 years
-
Product name:
-
Fiber Optic Transceiver Module
-
Application:
-
FTTH FTTxFTTB Network
-
Color:
-
Customer Requirement
-
Certification:
-
CE/ROHS/ISO9001
-
Fiber Type:
-
Duplex
-
Material:
-
Cold Rolled Steel
-
Wavelength:
-
1310/1550nm
-
Connector:
-
Double LC
-
Operating temperature:
-
40~+70
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
SFP C+++ 2.5G
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
wolon
-
Use:
-
FTTH
-
Warranty Time:
-
5 years
-
Product name:
-
Fiber Optic Transceiver Module
-
Application:
-
FTTH FTTxFTTB Network
-
Color:
-
Customer Requirement
-
Certification:
-
CE/ROHS/ISO9001
-
Fiber Type:
-
Duplex
-
Material:
-
Cold Rolled Steel
-
Wavelength:
-
1310/1550nm
-
Connector:
-
Double LC
-
Operating temperature:
-
40~+70

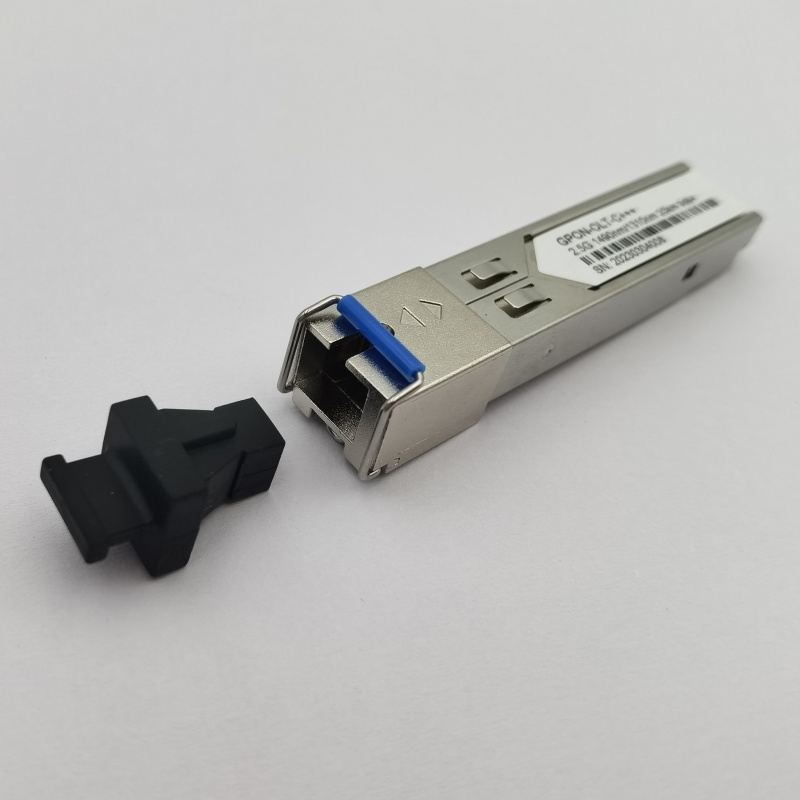

9dBm GPON OLT PON SFP C+++ 2.5G Transceiver Module compatible with Huawei ZTE GPON OLT
Product Features:
1. Support ITU-T G.984.2 GPON OLT C+++ application
2. Single fiber bidi data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
3. 1490nm continuous-mode transmitter with DFB LD
4. 1310nm burst-mode receiver with APD-TIA
5. 2-wire interface for integrated digital diagnostic Monitoring
6. Receiver REST, Singal Detect, RSSI function indication(REST, RX_SD, RSSI)
7. SFP package with SC/UPC receptacle optical interface
8. Single +3.3V power supply
9. Operating case temperature: 0-70
10. RoHS6 compliance
|
Operating temperature
|
0℃-+70℃
|
|
Storage temperature
|
-40℃-+85℃
|
|
Bit Rate for Tx
|
2.488Gbps
|
|
Bit Rate for Rx
|
1.244Gbps
|
|
TX Wavelength
|
1490nm
|
|
RX Wavelength
|
1310nm
|
|
Sensitivity
|
-30dBm
|
|
Extinction Ratio
|
9dB
|
