Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1740x900x1370mm
-
Machine Weight:
-
860 kg
-
Bucket capacity:
-
0.15M3
-
Marketing Type:
-
New Product 2024
-
After Warranty Service:
-
Online support
Quick Details
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
23HP
-
Brand Name:
-
HENGTIAN
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1740x900x1370mm
-
Machine Weight:
-
860 kg
-
Bucket capacity:
-
0.15M3
-
Marketing Type:
-
New Product 2024
-
After Warranty Service:
-
Online support

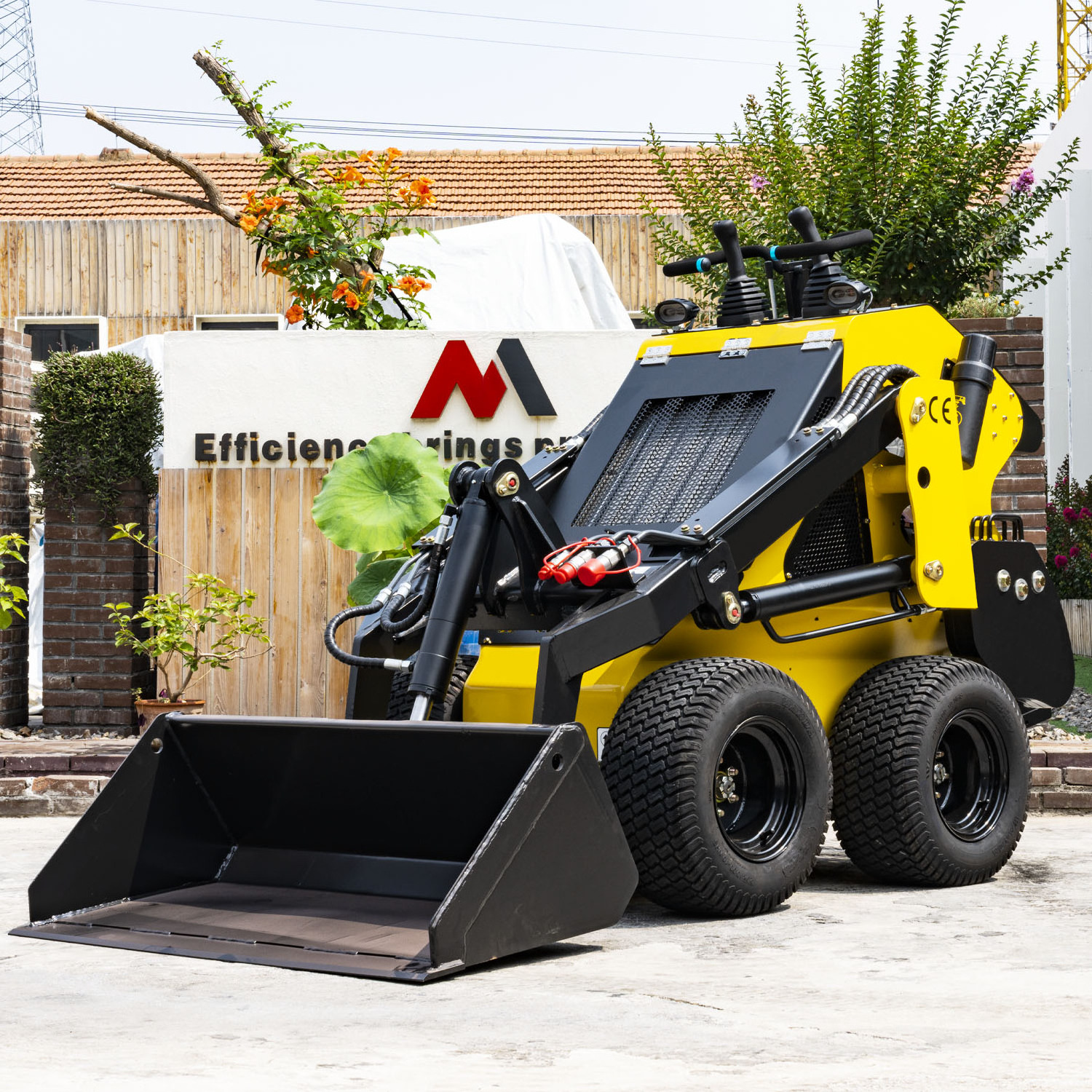

Cheap price EPA approved wheel type skid steer mini loader with mini skid steer attachments
1. TY-323S mini wheel loader is an excellent tool in tight sports like inside buildings or compact roadways where bigger machines can not go.
2. The combination of powerful America engine and motor, Italy pumps and other quality parts helps you to lift more than TY323 mini loader listed.
3. Construction tires, turf tires , solid tires and narrow tires are available , depending on the jobsite.
4. 1370mm total height, working stand up on the back, it is have a widely wide view. Mini skid steer loader.
>>>>>>Standard configuration
|
Engine : |
23HP American Briggs&Stratton VANGUARD engine or Kohler engine |
|
Pump : |
American PERMCO , Italy Hansa pump for optional |
|
Valves: |
Italian Hydraulic control valves |
|
Motor: |
American WHITE |
|
Bearing: |
Japanese NSK |
|
Drive: |
4x4 wheels |
|
Instrument: |
Waterproof instrument |
|
All parts electrophoresis avoid rusting |
|
|
Item |
Main description |
Units - Metric |
Units- US |
|
A |
Overall operating height |
2452mm |
96.5 in |
|
B |
Height to bucket hinge pin |
1914mm |
75.3in |
|
C |
Height to top of cab |
1370mm |
54in |
|
D |
Height to bottom of level bucket |
1790mm |
70.4in |
|
E |
Overall length without bucket |
1740mm |
68.5in |
|
F |
Overall length with bucket |
2170mm |
85.4in |
|
G |
Dumping angle at maximum height (°) |
33.7 |
33.7 |
|
H |
Dumping height |
1515mm |
60in |
|
I |
Dumping reach |
545mm |
21.5in |
|
J |
Rollback of bucket on ground (°) |
26 |
26 |
|
K |
Rollback of bucket at full height (°) |
114 |
114 |
|
L |
Wheelbase |
657mm |
25.9in |
|
M |
Ground clearance |
140mm |
5.5in |
|
N |
Angle of departure (°) |
23 |
23 |
|
O |
Turning radius front without bucket |
801mm |
31.5in |
|
P |
Front turning radius with bucket |
1282mm |
50.4in |
|
Q |
Rear turning radius |
1026mm |
40.5in |
|
S |
Tread width, centerline to centerline |
960mm |
37.8in |
|
T |
Width between outside of two wheels |
1150mm |
45.3in |
|
U |
Bucket width |
1160mm |
45.7in |
1. less than 3 units, will be packed into plywood cover box, the packing measurement should be negotiated with he seller according to your order items(including attachments, tools,etc..
2. more than 3 units, will be in a nude package loaded into container directly.
3. 4-6 units into one 20'GP container.
4. 8-10 units into one 40'GP container.
