Quick Details
-
Model Number:
-
320, 320A
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Powerful
-
WLL:
-
3/4T-30T
-
Delivery time:
-
about 30 days
-
Packing:
-
iron pallet,gunny bag,woven bag,box and others
-
Surface:
-
painted or others
-
MOQ:
-
100pcs
-
Payment terms:
-
T/T,L/C,discussion
-
Logo:
-
OEM Service
Quick Details
-
Finish:
-
Plain, ZINC, Red painted
-
Application:
-
Heavy Industry, Mining, Retail Industry, General Industry, Oil & Gas, Automotive Industry
-
Material:
-
carbon steel or alloy steel
-
Model Number:
-
320, 320A
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Powerful
-
WLL:
-
3/4T-30T
-
Delivery time:
-
about 30 days
-
Packing:
-
iron pallet,gunny bag,woven bag,box and others
-
Surface:
-
painted or others
-
MOQ:
-
100pcs
-
Payment terms:
-
T/T,L/C,discussion
-
Logo:
-
OEM Service
|
Powerful Machinery |
Specifications |
| Quick Details |
|
|
• Size - 3/4T-30T • Material - carbon steel or alloy steel • Surface - Galvanized,painted and others • Technology - forged • Safety Factor - 4:1
|
|
| Introduction | |
|
• this products is used for lifting, pullling and other usages. |

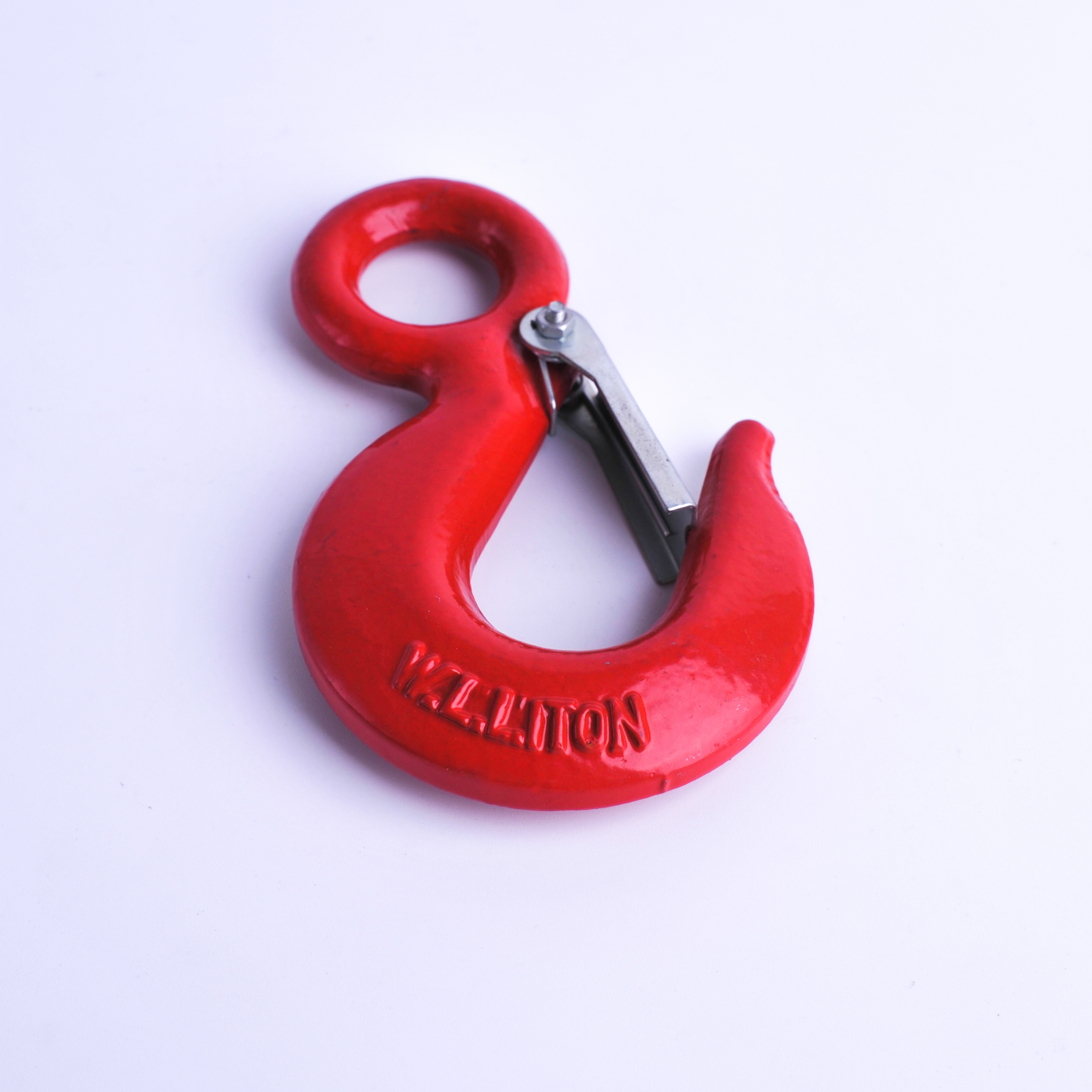

| 1.Commodity description | U.S TYPE 320A EYE HOIST HOOK WITH SAFETY LATCH |
| 2.Category | Rigging hardware, Rigging |
| 3.Standard | S-320 |
| 4.Material of body | carbon steel/alloy steel |
| 6.Surface treatment | painted or others |
| 7.Technology | drop forged |
| 8.Size | 3/4TON-60T |
| 9.MOQ | 100pcs |
| 10.Supply ability | 100Ton per month |
| 11.Packing | packed iniron pallet,gunny bag,woven bag,box and others |
| 12.Delivery time | as the quantity in order.20-30days |
| 13.Payment term | 30% deposit prepaid after confirmed PI, the balance against copy of BL before cargo arrival |
| 14.Main products |
Chains : anchor chains, US TYPE NACM standard chains, G80 lifting chains, G100 lifting chains, G80 long link lashing chains DIN5685 /DIN766/DIN763 chains decorative chains. Rigging hardware : shackles , turnbuckles, wire rope clips, pulley blocks, load binders, bolts and nuts, quick links , snap hooks, swivels, wire rope thimbles, ferrules and sleeves
|
| 15.Company name | QINGDAO POWERFUL MACHINERY CO.,LTD |
| 16.Experience | 17years experience in the area of chains and rigging hardware |
| 17.Main market | the United States, Europe, Mid East, Southeast Asia |
| 18.our advantage | 1)more than 15 years experience in the area of chains and rigging hardware |
| 2)quick react to your email at the first time | |
| 3)provide best price, good quality and my team will supply best service |
|
Powerful Machinery |
Specifications |
|
S-320 Eye Hook |
|
| WLL(TON) | Dimensions(IN.) |
Weight LBS/PC |
||
| Carbon | Alloy | B | E | LBS/PC |
| 3/4 | 1 | 0.75 | 0.88 | 0.61 |
| 1 | 1-1/2 | 0.91 | 0.97 | 0.89 |
| 1-1/2 | 2 | 1.12 | 1 | 1.44 |
| 2 | 3 | 1.25 | 1.12 | 2.07 |
| 3 | 5 | 1.56 | 1.34 | 4.3 |
| 5 | 7 | 2 | 1.69 | 8.3 |
| 7-1/2 | 11 | 2.44 | 2.06 | 15 |
| 10 | 15 | 2.83 | 2.22 | 21.6 |
| 15 | 22 | 3.5 | 3.02 | 39.5 |
|
Powerful Machinery |
Similar Products |
|
Powerful Machinery |
Production Process |
Noted: This process is suitable for almost rigging hardware products. Such as shackles, turnbuckles, hooks and others.
|
