Quick Details
-
Brand Name:
-
TS filter
-
Voltage:
-
/
-
Power:
-
/
-
Dimension(L*W*H):
-
/
-
Weight:
-
45 KG
-
Filter Type:
-

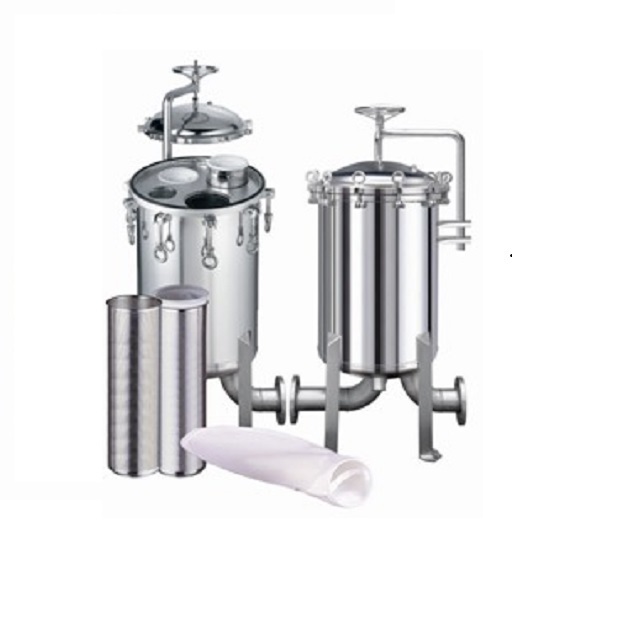

Stainless steel bag filter housing
-
Material:
-
SS304, SS316L
-
Inlet, Outlet:
-
Tri Clamp, Flange, Thread, DIN, etc
-
Inlet,, outlet locations:
-
Side in side out or side in bottom out
-
Surface finish:
-
Mirror Polish, Sand blasting
-
Bag size:
-
#2, #1
-
Operating pressure:
-
6 bar
-
Bag number:
-
1,2, 3, 4, 5, 6, 7, 8, etc
-
MOQ:
-
1 piece
-
Application:
-
High Viscosity Liquids honey filter housing
Quick Details
-
Core Components:
-
Stainless steel bag filter housing
-
Production Capacity:
-
/
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS filter
-
Voltage:
-
/
-
Power:
-
/
-
Dimension(L*W*H):
-
/
-
Weight:
-
45 KG
-
Filter Type:
-
Stainless steel bag filter housing
-
Material:
-
SS304, SS316L
-
Inlet, Outlet:
-
Tri Clamp, Flange, Thread, DIN, etc
-
Inlet,, outlet locations:
-
Side in side out or side in bottom out
-
Surface finish:
-
Mirror Polish, Sand blasting
-
Bag size:
-
#2, #1
-
Operating pressure:
-
6 bar
-
Bag number:
-
1,2, 3, 4, 5, 6, 7, 8, etc
-
MOQ:
-
1 piece
-
Application:
-
High Viscosity Liquids honey filter housing
Products Description
PARAMETER INFORMATION
|
Material
|
|
|
Housing
|
Stainless Steel 304 and 316 for choice
|
|||
|
|
|
|
Basket
|
Stainless Steel 304 and 316 for choice
|
|||
|
|
|
|
Gasket
|
Silicone, Viton, Teflon, etc
|
|||
|
Inlet/Outlet
|
|
|
|
Size, type and position according to customers’ requirement
|
|||
|
Vent
|
|
|
|
¼" NPT
|
|||
|
Drain
|
|
|
|
1" male or as your request.
|
|||
|
Surface finish
|
|
|
|
Electro polished or Sand blasting
|
|||
|
Designed Pressure
|
|
|
|
9.6bar(139psi)with in 30mins.
|
|||
|
Max.operating pressure
|
|
|
|
6.0bar(87psi)
|
|||
|
Temperature
|
|
|
|
Max.115 ℃ (Design 140℃ )
|
|||
