The oil line is just 0.36mm, good for filtering residues. Finally oil can reach to the cooking grade directly,
And the oil is clear and edible. High quality steel and special heating treatment make it stronger enough and safety.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V or as customized
-
Dimension(L*W*H):
-
400*500*850mm
-
Weight:
-
250 KG
-
Marketing Type:
-
New Product 2023
-
Product name::
-
Cocoa butter hydraulic oil press
-
Keyword::
-
Cold oil press machine
-
Function::
-
Oil Extractor
-
Name::
-
Oil Pressing Machine
-
Material::
-
304 Stainless Steel and steel
-
Raw material::
-
Oil Seeds
-
Application::
-
Oil Production Line
-
Advantage::
-
High Oil Output with 60 Mpa pressure
-
After service::
-
Online Engineer
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OLIVE
-
Voltage:
-
220V/380V or as customized
-
Dimension(L*W*H):
-
400*500*850mm
-
Weight:
-
250 KG
-
Marketing Type:
-
New Product 2023
-
Product name::
-
Cocoa butter hydraulic oil press
-
Keyword::
-
Cold oil press machine
-
Function::
-
Oil Extractor
-
Name::
-
Oil Pressing Machine
-
Material::
-
304 Stainless Steel and steel
-
Raw material::
-
Oil Seeds
-
Application::
-
Oil Production Line
-
Advantage::
-
High Oil Output with 60 Mpa pressure
-
After service::
-
Online Engineer

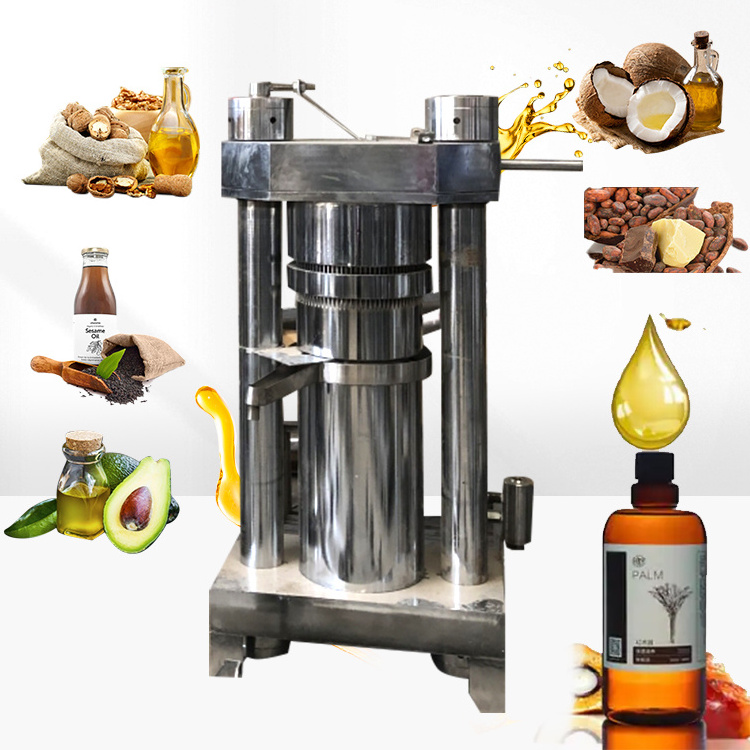

Hydraulic oil press machine
T
he hydraulic press is a kind of mechanical equipment used to extract vegetable oil. It mainly consists of main part, hydraulic system, electric control system and other parts.
1. The main part includes the press screw, press screw box and other parts, which are made of stainless steel and have the characteristics of corrosion resistance, wear resistance and easy cleaning.
2. The hydraulic system adopts high quality hydraulic components to drive the pressing screw through the hydraulic cylinder for pressing, which is characterized by high pressure, even pressing and easy operation.
3. The electric control system is easy to operate, safe and reliable, and can be operated by keyboard to achieve different functions such as start-up and stoppage.
The hydraulic oil press can be used for different types of oil seeds, such as sesame, peanut, almond, walnut, olive, etc. It has high efficiency, environmental protection and energy saving. It is ideal for oil extraction at home and in factories.
Product Parameter
|
Model
|
Weight（Kg）
|
Motor Power
|
Dimensions
|
Force at 60Mpa（t）
|
Barrel capacity（Kg）
|
|
OT-150
|
250
|
0.75KW
|
700*800*780mm
|
47
|
2
|
|
OT-180
|
570
|
1.5KW
|
800*900*1050mm
|
106
|
4
|
|
OT-230
|
970
|
1.5KW
|
900*1000*1400mm
|
188
|
8
|
|
OT-260
|
1250
|
1.5KW
|
1050*1100*1550mm
|
250
|
12
|
|
OT-320
|
1750
|
2.2KW
|
1120*1200*1650mm
|
318
|
17.5
|
|
OT-360
|
2050
|
2.2KW
|
1200*1200*1680mm
|
369
|
22.5
|
|
OT-415
|
2250
|
2.2KW
|
1250*1250*1700mm
|
424
|
30
|
|
OT-460
|
3050
|
3.0KW
|
1500*1500*2150mm
|
482
|
45
|
1. Pressing Barrel Precision oil line
2. Electric control panel
Internal temperature control parts to solve the problem of low oil yield in winter (the normal of machine's oil yield will be lower in winter）. Only two buttons control the whole working pressure and temperature, very simple to operate. The buttons was test very strictly before shipping, make sure it safety and Long service life.
3. Pressure Cylinder
Carbon steel material. The total multiplying high pressure of the oil cylinder is pushed upward, and the oil flows out from the oil lines
4. Hydraulic Pump
The core part of the machine which offers the main power for the machine. We use the double hydraulic pump system to improve the
working efficiency. Real max working pressure can be reached 60 MPa. This machine adopts advanced hydraulic pump station, low speed, high oil pressure and high tempera-ture
working efficiency. Real max working pressure can be reached 60 MPa. This machine adopts advanced hydraulic pump station, low speed, high oil pressure and high tempera-ture
resistance. stable performance
5. Solid piston
Using high quality steel, pressing more thorough and cleaner. Repeatedly squeeze the material to increase oil yield.
The Uses and
Benefits
of Hydraulic Oil Press Cake
A pressed cake or oil cake which as a by-product produced by our hydraulic oil press machine. Can be mainly used as feed or ingredients. You can reuse the oil cake in many ways, like making pancakes, as animal feed for cattle, sheep, poultry, fish and shrimp, using as fertilizer of flowers, selling to feed mill and farms which can bring you
extra profits
.
Customer Review
Available material
Product Display
COMPANY PROFILE
Henan Olive Technology Co., Ltd
Henan Olive technology is a company with the technology and independent research and development capability. Our company is located in Zhengzhou High-tech Development district, the capital of Henan Province. It has convenient transportation (China's important railway transportation hub, about one hour driving distance away from Zhengzhou Airport, closing to Qingdao and Shanghai Seaport). Olive-tech is specialized in selling oil pressing machine, chaff cutter, animal feed pellet making machine, Shredder and other machines. 15 years rich industry experience helps us to save our valued customer`s money and time. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits. Welcome old and new customers hold hands together for exploring and developing.
Contact us
FAQ
Q:
What is your Business Model? Trading company or factory?
A:
We are a 15 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.
Q:
Can I visit your factory?
A:
Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO. We will pick you up at airport. Welcome to visit our factory.
Q:
What is the Quality of your products?
A:
Olive Group products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q:
What is the Installation of your products?
A:
Olive Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
Q:
How long is the Warranty of your equipment?
A:
Our warranty period is one year generally.
Q:
What should I provide to get the suitable quotation?
A:
1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
You can send inquiries from this page.Once we get your answers,we can provide you the best quotation immediately.
