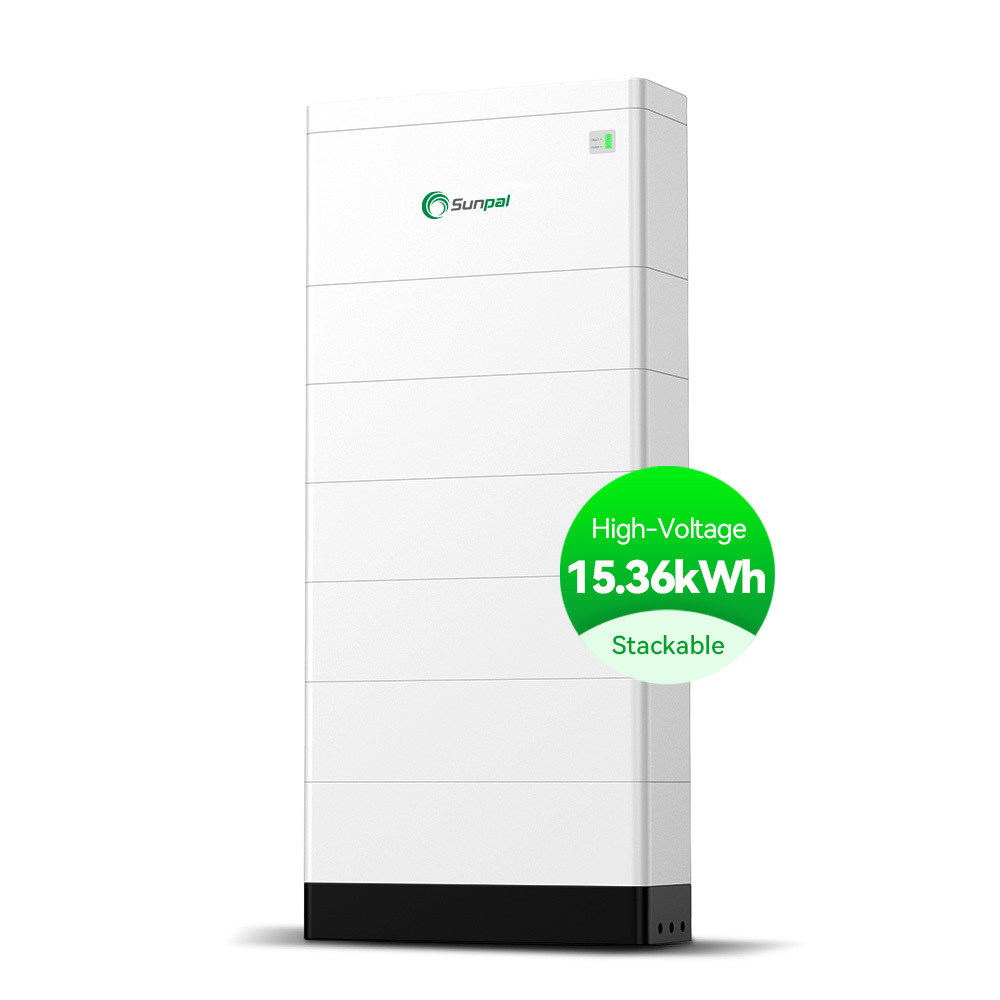

Voltage 51.2V 100-300AH
51.2-15.36KWH
51.2-15.36KWH
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Sunpal
-
Model Number:
-
StackArk
-
Battery Size:
-
153.6V 50Ah-512V 50Ah
-
Place of Origin:
-
Anhui, China
-
Weight:
-
102.5kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Nominal Voltage:
-
129.6V-168.48V
-
Number of layers:
-
3-10 layers
-
Nominal Capacity(Wh):
-
7.68KWh-25.6KWh
-
Cooling:
-
Natural convection
-
Dimension(mm):
-
600*210*820
-
Communication Port:
-
RS485,CAN
-
Display:
-
SOC status indicator, LED indicato
-
Cycle life:
-
6000 @ 80% DOD, 25°C / 0.5C
-
Certification:
-
CB, IEC62619; CE-EMC, CE-GPSD, UKCA; UN38.3, MSDS
-
IP Class:
-
IP65
Quick Details
-
Storage Type:
-
-20℃-55℃
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances, Electric Power Systems, Solar Energy Storage Systems
-
Brand Name:
-
Sunpal
-
Model Number:
-
StackArk
-
Battery Size:
-
153.6V 50Ah-512V 50Ah
-
Place of Origin:
-
Anhui, China
-
Weight:
-
102.5kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Nominal Voltage:
-
129.6V-168.48V
-
Number of layers:
-
3-10 layers
-
Nominal Capacity(Wh):
-
7.68KWh-25.6KWh
-
Cooling:
-
Natural convection
-
Dimension(mm):
-
600*210*820
-
Communication Port:
-
RS485,CAN
-
Display:
-
SOC status indicator, LED indicato
-
Cycle life:
-
6000 @ 80% DOD, 25°C / 0.5C
-
Certification:
-
CB, IEC62619; CE-EMC, CE-GPSD, UKCA; UN38.3, MSDS
-
IP Class:
-
IP65
Products Description
Specifications
|
Model
|
153.6V 50Ah
|
204.8V 50Ah
|
256V 50Ah
|
307.2V 50Ah
|
||||
|
Number of layers
|
3 layers
|
4 layers
|
5 layers
|
6 layers
|
||||
|
Energy
|
7.68KWh
|
10.24KWh
|
12.8KWh
|
15.36KWh
|
||||
|
Operating Voltage Range
|
129.6V-168.48V
|
172.8V-224.64V
|
216V-280.8V
|
259.2V-336.96V
|
||||
|
Dimension(L*W*H)
|
600*210*820
|
600*210*980
|
600*210*1140
|
600*210*1300
|
||||
|
Net Weight
|
102.5
|
129
|
155.5
|
182
|
||||
|
Recommend charge current
|
10~25A
|
|
|
|
||||
|
Max continue charge current
|
50A
|
|
|
|
||||
|
Max continue discharge current
|
50A
|
|
|
|
||||
|
Peak current
|
100A
|
|
|
|
||||
|
Display
|
The information of Battery, such as SOC, battery voltage and so on
|
|
|
|
||||
|
Communication
|
Support RS485 / CAN
|
|
|
|
||||
|
Operating temperature
|
-20℃-55℃
|
|
|
|
||||
|
Environment
|
Indoor
|
|
|
|
||||
|
Relative humidity
|
5%～95%
|
|
|
|
||||
|
Cooling
|
Natural convection
|
|
|
|
||||
|
Cell technology
|
Lithium-iron phosphate (LiFePO4)
|
|
|
|
||||
|
Life cycle
|
6000 times @80%DOD
|
|
|
|
||||
|
Single module Technical Specification
|
|
|
|
|
||||
|
Dimension (L*W*H)
|
High Voltage Box:600*210*250 Battery Box:600*210*160
|
|
|
|
||||
|
Battery module weight
|
26.5kg
|
|
|
|
||||
|
Model
|
358.4V 50Ah
|
409.6V 50Ah
|
460.8V 50Ah
|
512V 50Ah
|
||||
|
Number of layers
|
7 layers
|
8 layers
|
9 layers
|
10 layers
|
||||
|
Energy
|
17.92KWh
|
20.48KWh
|
23.04KWh
|
25.6KWh
|
||||
|
Operating Voltage Range
|
302.4V-393.12V
|
345.6-449.28V
|
388.8V-505.44V
|
432V-561.6V
|
||||
|
Dimension(L*W*H)
|
600*210*1460
|
600*210*1620
|
600*210*1780
|
600*210*1940
|
||||
|
Net Weight
|
208.5
|
235
|
261.5
|
288
|
||||
|
Recommend charge current
|
10~25A
|
|
|
|
||||
|
Max continue charge current
|
50A
|
|
|
|
||||
|
Max continue discharge current
|
50A
|
|
|
|
||||
|
Peak current
|
100A
|
|
|
|
||||
|
Display
|
The information of Battery, such as SOC, battery voltage and so on
|
|
|
|
||||
|
Communication
|
Support RS485 / CAN
|
|
|
|
||||
|
Operating temperature
|
-20℃-55℃
|
|
|
|
||||
|
Environment
|
Indoor
|
|
|
|
||||
|
Relative humidity
|
5%～95%
|
|
|
|
||||
|
Cooling
|
Natural convection
|
|
|
|
||||
|
Cell technology
|
Lithium-iron phosphate (LiFePO4)
|
|
|
|
||||
|
Life cycle
|
6000 times @80%DOD
|
|
|
|
||||
|
Single module Technical Specification
|
|
|
|
|
||||
|
Dimension (L*W*H)
|
High Voltage Box:600*210*250 Battery Box:600*210*160
|
|
|
|
||||
|
Battery module weight
|
26.5kg
|
|
|
|
||||
