Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LANCHUANG
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
0.5 KG, depend on size
-
After-sales Service Provided:
-
Overseas third-party support available
-
Application:
-
industrial equipment,medical eguipment
-
Insulation material:
-
Silicone Rubber
-
Working Temperature:
-
0-500℃
-
Wattage:
-
0.5-0.7w/cm2
-
Size:
-
Reqiured
-
Delivery date:
-
7-15days after payment
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V-220V, 12V,24V,36V,110V,220,240,480V,or customzed
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LANCHUANG
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
0.5 KG, depend on size
-
After-sales Service Provided:
-
Overseas third-party support available
-
Application:
-
industrial equipment,medical eguipment
-
Insulation material:
-
Silicone Rubber
-
Working Temperature:
-
0-500℃
-
Wattage:
-
0.5-0.7w/cm2
-
Size:
-
Reqiured
-
Delivery date:
-
7-15days after payment
Dear Sir or Madam
Because the products are customized products, the products are different in size, voltage and power, so the price is different. Please contact us before ordering. We will give you a favorable price according to the specifications of the products.
Applications:

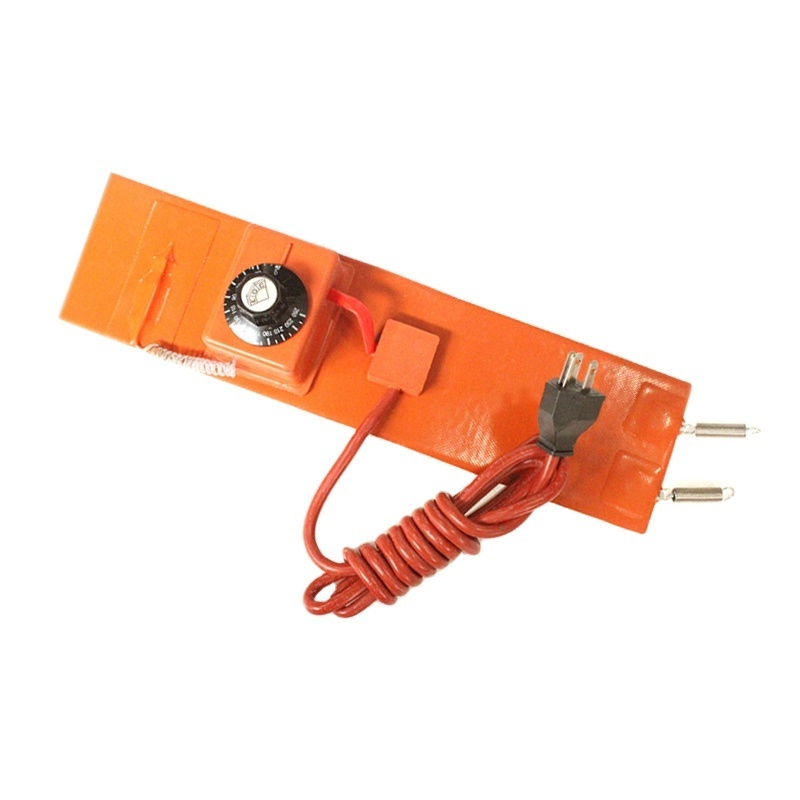

1. Silicone rubber band heater can be used in damp , no explosive gas atmosphere, industrial equipment pipelines, heat preservation for can and barrel .
2. It can be used as a frozen prevention, air conditioner compressor ,assisting heating of elctrical equipment .
3. Also it can be used as medical equipmentand medical care (such as blood tube heater, blood analyzer, heat supplementary for corset and waistband
Oil-Drum silicone rubber heater specification
|
Oil Drum |
Size |
Voltage |
Power |
Gross Weight |
Temperature controller |
|
200L |
250*1740mm |
220V |
2000W |
1.6kgs |
30-150 ℃ Switch temperature controller Or Digital show temperature controller |
|
200L |
125*1740mm |
220V |
1000W |
1.1kgs |
|
|
20L |
200*860mm |
220V |
800W |
0.9kgs |
|
|
20L |
120*860mm |
220V |
500W |
0.7kgs |
Ammonia Gas bottle heating plate
|
Model |
Size |
Heating area |
Voltage |
Power |
Thermocouple |
Temperature switch |
|
47L |
1100*690mm |
1000*600mm |
220v |
3000w |
K type 2pcs |
2Pcs |
|
470L |
1600*800mm |
1400*700mm |
220v |
4000w |
K type 3pcs |
3Pcs |
|
930L |
2000*1000mm |
1600*900mm |
220v |
6000w |
K type 3pcs |
3Pcs |
All the above specification only for reference,the products can be made as customers ’ designs,shapes and power.
|
Maximum temperature resistant of insula te |
300℃
|
|
Maximum operating temperature
|
250 ℃ -300 ℃ |
|
Withstanding voltage
|
1500V/5s
|
|
Power Tolerance
|
± 8%
|
|
Electric voltage
|
> 5KV
|
|
Max Width
|
1170mm
|
|
Thickness
|
1.5mm (Min:0.8mm,Max:4mm)
|
|
Lead wire
|
25cm ( as requirements )
|
|
3M Glue |
As requirements |
|
