4pcs/ctn 55*55*47cm 12kg
- Product Details
- {{item.text}}
Quick Details
-
Total insertion loss:
-
2.0
-
Switching losses:
-
<=1.0
-
Spectral loss:
-
<=0.5
-
Connector loss:
-
<=0.5
-
Return loss:
-
≥55
-
Polarization dependence loss:
-
<=0.1
-
Switching time:
-
<=10
-
voltage:
-
AC135~250V
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
wavelength:
-
1310-1563
-
Input optical power range:
-
-30~-20
-
Total insertion loss:
-
2.0
-
Switching losses:
-
<=1.0
-
Spectral loss:
-
<=0.5
-
Connector loss:
-
<=0.5
-
Return loss:
-
≥55
-
Polarization dependence loss:
-
<=0.1
-
Switching time:
-
<=10
-
voltage:
-
AC135~250V
Product Description
Product Paramenters

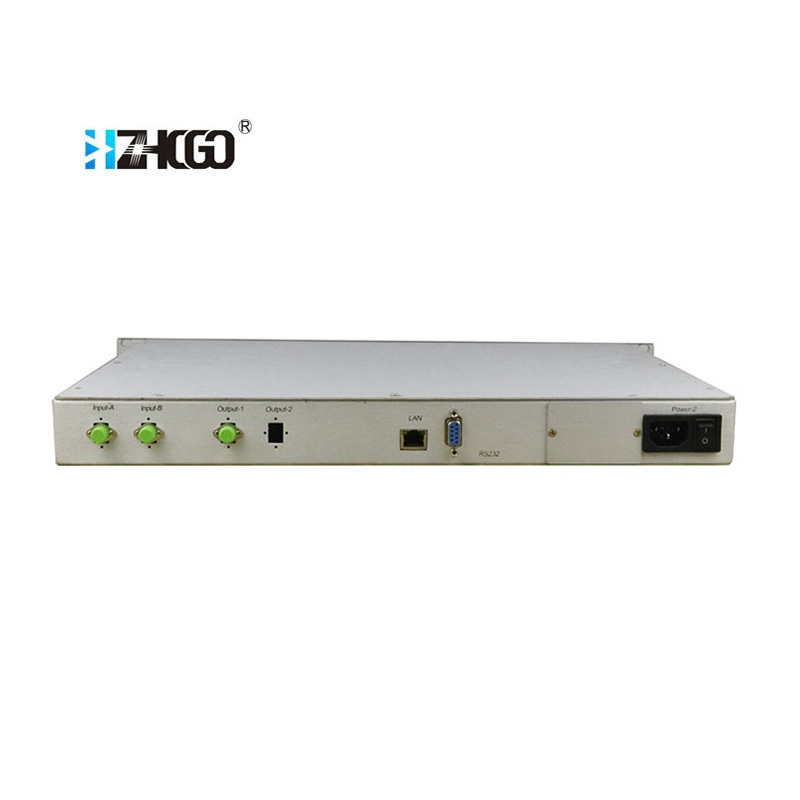

Automatic Switching 2 Port Fiber Optical Switch
HCOS-201 Series are very low insertion loss (typical values less or equal to 0.6db,the maximum value is less less or equal to 1.0db),Performance is at the industry leading level.Can work in 1x1,2x1,(1x2),2x2,three switch mode. 19" standard chassis ,the font panel can be set to automatic or manual switching function.
|
Performance
|
Index
|
|
Working wavelength (nm)
|
1528~1563
|
|
|
1570~1610
|
|
|
1310
|
|
Input optical power range (dBm)
|
-30~ -10
|
|
|
-10~ +10
|
|
|
+10~ +30
|
|
The total insertion loss (dB)
|
2.0
|
|
Switching loss (dB)
|
≤1.0 (type=0.8)
|
|
Optical divide loss (dB)
|
≤0.5
|
|
Optical fiber connector
|
FC/APC SC/APC (or specified by customer)
|
|
Network management interface
|
RJ45(DNMP),RS232 ,RS485
|
|
Connector loss (dB)
|
≤0.5 (2 ports)
|
|
Echo loss (dB)
|
≥55
|
|
Polarization dependent loss (dB)
|
≤0.1
|
|
Repetability (dB)
|
≤±0.02
|
|
Switching time (ms)
|
≤10
|
|
Working voltage (V)
|
AC135-250
|
|
Packing size (mm)
|
55*55*15
|
