Quick Details
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
2800 - 2900 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SUNRISE
-
Voltage:
-
220/380 V
-
Dimension(L*W*H):
-
700*600*1250 mm
-
Weight (KG):
-
130 KG
-
Item:
-

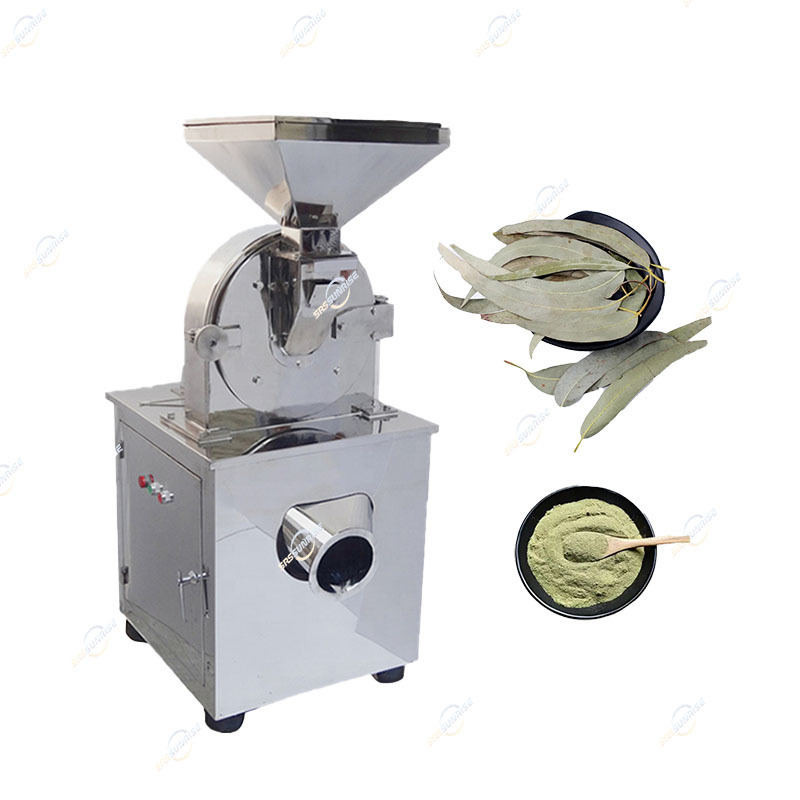

Dry Food Grinding machine
-
Model:
-
SRS-20
-
Capacity:
-
50-100 kg/h
-
Usage:
-
Making Food Powder
-
Function:
-
Make Dry Powder
-
Feature:
-
Multifuction
-
Certification:
-
CE ISO
-
After-sales Service Provided:
-
Video Technical Support Service
Quick Details
-
Output (kg/h):
-
100 - 300 kg/h
-
Feeding Size (mm):
-
1 - 20 mm
-
Output Size (mesh):
-
10 - 120 mesh
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
2800 - 2900 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SUNRISE
-
Voltage:
-
220/380 V
-
Dimension(L*W*H):
-
700*600*1250 mm
-
Weight (KG):
-
130 KG
-
Item:
-
Dry Food Grinding machine
-
Model:
-
SRS-20
-
Capacity:
-
50-100 kg/h
-
Usage:
-
Making Food Powder
-
Function:
-
Make Dry Powder
-
Feature:
-
Multifuction
-
Certification:
-
CE ISO
-
After-sales Service Provided:
-
Video Technical Support Service
Machine Advantage
1.
This machine is suitable for the relative movement between the movable tooth disc and the fixed tooth disc, so that the crushed object can be crushed by tooth impact, friction and impact between materials. The whole machine is made of stainless steel, and the crushing chamber can be equipped with a water cooling jacket, and the machine has reached the international advanced level.
2. All the material of machine is made of food grade materials, t
he processed powder can be safely used in grain, spice, cosmetics and other industries.
3. If you have any detailed needs for the machine, we can support customization, warehouse stock.
Different Grinding Head
In order to meet the needs of our customers more precisely, we develop grinding heads suitable for different materials. Depending on the texture and condition of raw material, you need to adopt the right grinding head for you. It is not that the more complex the structure of the grinding head seems, it is the best choice, and the specific needs need to consult our salesman. They will recommend the most suitable one to you based on your material.
|
Model
|
SRS-20B
|
SRS-30B
|
SRS-40B
|
|
Capacity
|
50-100 kg/hr
|
100-200 kg/hr
|
200-300 kg/hr
|
|
Power
|
4 kw
|
5.5 kw
|
11 kw
|
|
Weight
|
150 kg
|
235 kg
|
350 kg
|
|
Dimension
|
700*600*1250 mm
|
770*750*1380 mm
|
800*900*1500 mm
|
|
Final Size
|
10-120 mesh
|
10-120 mesh
|
10-120 mesh
|
|
Material Of Grinder
|
304 Stainless Steel
|
304 Stainless Steel
|
304 Stainless Steel
|
|
Model
|
SRS-50B
|
SRS-60B
|
SRS-80B
|
|
Capacity
|
300-400 kg/hr
|
400-500 kg/hr
|
500-800 kg/hr
|
|
Power
|
15 kw
|
22 kw
|
37 kw
|
|
Weight
|
450 kg
|
620 kg
|
880 kg
|
|
Dimension
|
850*850*1650 mm
|
1000*950*1680 mm
|
1200*1100*1800 mm
|
|
Final Size
|
10-120 mesh
|
10-120 mesh
|
10-120 mesh
|
|
Material Of Grinder
|
304 Stainless Steel
|
304 Stainless Steel
|
304 Stainless Steel
|
KIND NOTES
Technical Data Just For Reference, It Is Better To Consult Our Salesmen To Find The Most Suitable Model
Q1: What power do you use in your factory?
-V,-Hz, 3 phase or single phase? (Like 220 V , 50 Hz , single or 380 V, 50 Hz , 3phase...etc)
Q2: Can I Put my Logo on the machine?
Yes, Sure .
Q3. How can I trust you for the first-time business?
We can supply the business license and certificates. if you still worry about our company,
we suggest using Alibaba trade assurance service for all transactions to protect your money
and ensure our service for you.
Q4. How can you ensure the machine's quality after we purchase the order?
Before delivery, we will produce the equipment according to the agreed requirements,
and after production, we will provide detailed operating instructions, testing videos,
certification documents, etc. Alternatively, you can arrange a third-party inspector to
do inspection and give you report.
Q5: How about the after-sale service and guarantee period?
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’
after-sale service starts from the date when you receive machine .
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line.
3. English software, user manual and the installation & debugging by our experienced technicians.
