Quick Details
-
MOQ:
-
10 PCS
-
Standard:
-
ANSI BS DIN JIS
-
Certificate:
-
ISO9001:2008 CE
-
Connection Type:
-
Flanged or BW
-
HS CODE:
-
8481804090
-
Type of Port:
-
Full Port/Reduce Port
-
Warranty:
-
18 Months
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Standard or Nonstandard:
-
Standard
-
Body material:
-
Stainless Steel/Carbon Steel
-
MOQ:
-
10 PCS
-
Standard:
-
ANSI BS DIN JIS
-
Certificate:
-
ISO9001:2008 CE
-
Connection Type:
-
Flanged or BW
-
HS CODE:
-
8481804090
-
Type of Port:
-
Full Port/Reduce Port
-
Warranty:
-
18 Months

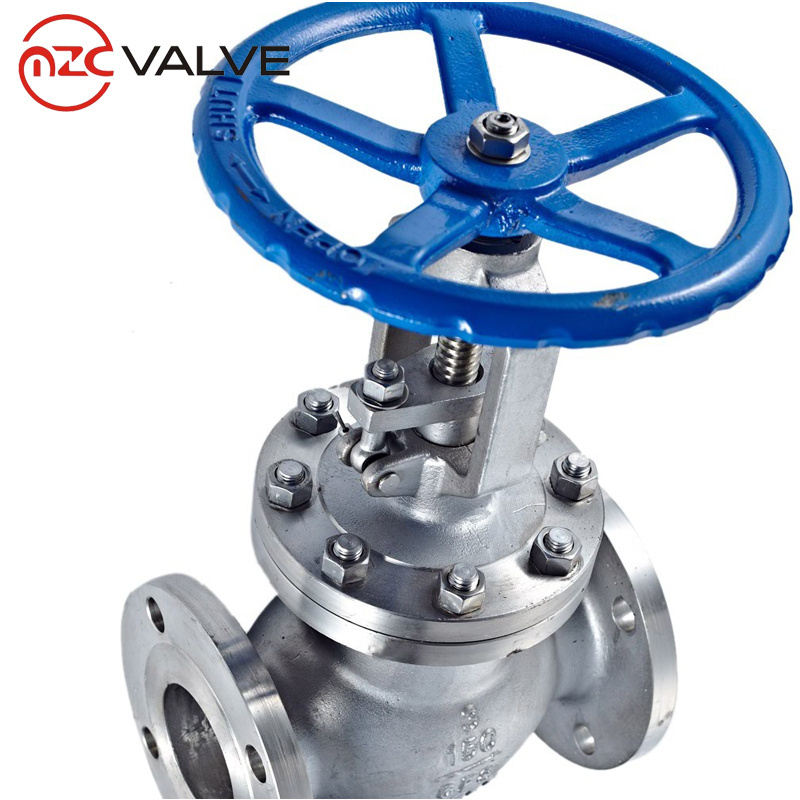

High quality manufacturer stainless steel globe valve
Function Description:
The stem axis and the seat sealing surface is vertical, and it is a very reliable valve to cut off and control.
The characteristics of globe valve:
1. Globe valve's structure is more simple than gate valve's, and it is more convenient in manufacturing and maintenance.
2. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life.
3. When opening and closing, disc's route is small, so the height of globe valve is smaller than gate valve, but the length of structure is longer than gate valve's.
Application:
Applicable Temperature:
≤425
ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: PN10-PN100, 150LB-1500LB
Size Range: 1/2" ~ 12"(DN15-DN300)
Main Material:
| ITEM | PART | MATERIAL | ||
| 1 | BODY | CF8M/CF3M | CF8/CF3 | WCB |
| 2 | DISC | CF8M/CF3M | CF8/CF3 | WCB |
| 3 | HALF RING | 304 | ||
| 4 | DISC COVER | CF8M/CF3M | CF8/CF3 | WCB |
| 5 | BOLT | A193-B8 | ||
| 6 | GASKET | PTFE | ||
| 7 | NUT | A194-8 | ||
| 8 | STEM PACKING | PTFE | ||
| 9 | BONNET | CF8M/CF3M | CF8/CF3 | WCB |
| 10 | STEM | 316 | 304 | 304 |
| 11 | WHEEL HANDLE | FCD | ||
| 12 | STEM NUT | A194-8 | ||
| 13 | WASHER | 301 | ||
| 14 | SMALL BOLT | 301 | ||
| 15 | NUT | A194-8 | ||
| 16 | EYE BOLT | 304 | ||
| 17 | LOCKING PIN | 304 | ||
