Quick Details
-
IP Input:
-
Max 3*128 IP input (MPTS/SPTS)
-
Constellation:
-
16QAM---265QAM
-
RF Out:
-
32 DVBC or 16 ISDBT/ ATSC/ DVBT/ DTMBT
-
RF Frequency:
-
96~864MHz,1kHz step
-
RF Output Level:
-
-35dBm~-5dBm
-
Protocol:
-
UDP, RTP
-
Management:
-
Web-based NMS
-
Power:
-
AC100~240V, 50/60Hz
-
Temperature Range:
-
0~40℃(operation), -20~80℃(storage)
-
Application:
-
IPTV, digital TV
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Yukuan
-
Model Number:
-
YUK903
-
IP Input:
-
Max 3*128 IP input (MPTS/SPTS)
-
Constellation:
-
16QAM---265QAM
-
RF Out:
-
32 DVBC or 16 ISDBT/ ATSC/ DVBT/ DTMBT
-
RF Frequency:
-
96~864MHz,1kHz step
-
RF Output Level:
-
-35dBm~-5dBm
-
Protocol:
-
UDP, RTP
-
Management:
-
Web-based NMS
-
Power:
-
AC100~240V, 50/60Hz
-
Temperature Range:
-
0~40℃(operation), -20~80℃(storage)
-
Application:
-
IPTV, digital TV

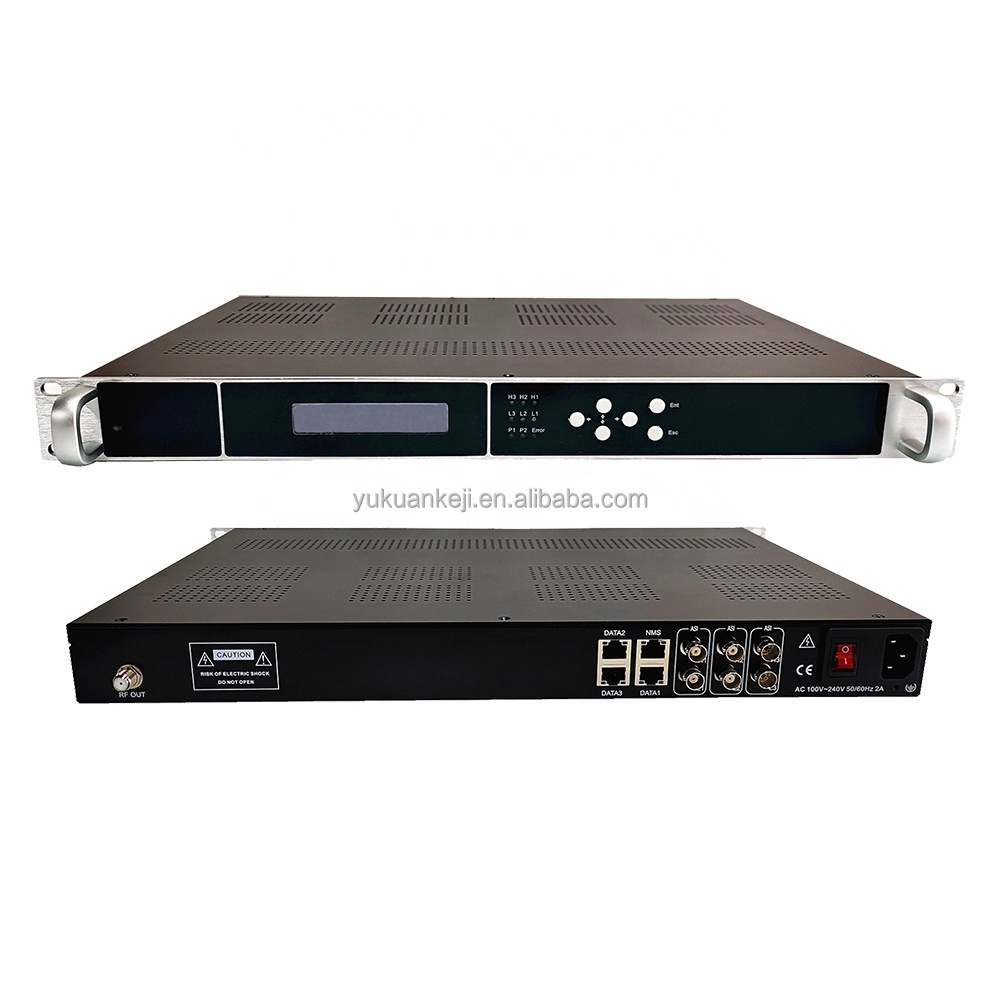

YUK903
16 in 1 IP ASI Input and RF output IP QAM Modulator Digital TV IP QAM Modulator
Product Overview
YUK903 is a cost-effective modulator developed. It has 128*3 IP inputs. After multiplexing and modulating process, it gives 32 carrier DVBC or 16 carrier ISDBT/ ATSC/ DVBT/ DTMBT non-adjacent carriers output through the RF output interface. To meet customers’ various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP. It is very adaptable to newly generation DTV broadcasting system.
Product Feature
* Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol
* Support 8 MPTS Output
* Support 32 carrier DVB-C or 16 carrier ISDBT/ ATSC/ DVBT/ DTMBT modulating
* Support 6 Serial TS Input (Any multiplex)
* Support mux remux and demux function
* Support adjacent and non-adjacent carriers
* Integrated multiplexing and modulating functions
* Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
* Web-based NMS management
Specification
|
Input
|
|
|
||
|
3 channel 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45,1000M/100M, Unicast/Multicast
|
|
|
||
|
6 channel ASI input
|
|
|
||
|
Output
|
|
|
||
|
32 frequency points DVBC or 16 frequency points ISDBT/ ATSC/ DVBT/ DTMBT modulating
|
|
|
||
|
DVB-C Modulation Parameter
|
|
|
||
|
Modulation Channel
|
32 frequency points DVB-C RF output
|
|
||
|
Modulation Standard
|
EN300 429/ITU-T J.83A/B
|
|
||
|
MER
|
≥40dB
|
|
||
|
Frequency Range
|
50 ~ 960MHz, 1KHz step
|
|
||
|
Output Level
|
-26dBm~-1dBm，0.1dB step
|
|
||
|
Symbol Rate
|
5.0~7.0Msps, 1ksps step
|
|
||
|
|
J.83A/C
|
J.83B
|
||
|
Modulation Constellation
|
16/32/64/128/256QAM
|
64/256 QAM
|
||
|
Bandwidth
|
8M
|
6M
|
||
|
DVB-T Modulation Parameter
|
|
|
||
|
Modulation Channel
|
16 frequency points DVB-T RF output
|
|
||
|
Modulation Standard
|
EN300744
|
|
||
|
FFT
|
2K
|
|
||
|
Bandwidth
|
6M,7M,8M
|
|
||
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
||
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
|
||
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
||
|
MER
|
≥42dB
|
|
||
|
Frequency Range
|
50 ~ 960MHz, 1KHz step
|
|
||
|
Output Level
|
-28dBm~-3dBm，0.1dB step
|
|
||
|
ISDBT Modulation Parameter
|
|
|
||
|
Modulation Channel
|
16 frequency points ISDBT RF output
|
|
||
|
Modulation Standard
|
ARIB STD-B31
|
|
||
|
Transmission Mode FFT
|
2K
|
|
||
|
Modulation Constellation
|
DQPSK, QPSK, 16QAM, 64QAM
|
|
||
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
||
|
Hierarchical Mode
|
A
|
|
||
|
Bandwidth
|
6M,7M,8M
|
|
||
|
ATSC Modulation Parameter
|
|
|
||
|
Modulation Channel
|
16 frequency points ATSC RF output
|
|
||
|
Standard
|
ATSC A/53
|
|
||
|
MER
|
≥40dB
|
|
||
|
Frequency Range
|
30 ~ 960MHz, 1KHz step
|
|
||
|
Constellation
|
8VSB
|
|
||
|
System
|
|
|
||
|
Network Management (Web) supports network upgrade
|
|
|
||
|
Chinese/English operation interface
|
|
|
||
|
General
|
|
|
||
|
Power
|
AC100~240V，50/60Hz
|
|
||
|
Power Consumption
|
<90W
|
|
||
|
Temperature Range
|
0~45℃(operation), -20~80℃(storage)
|
|
||
|
Dimension
|
19’’ 1U rack
|
|
||
