Quick Details
-
Production Capacity:
-
2-3m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HongYunTaoJi
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2200*1400*1500mm
-
Weight:
-
450 kg
-
Product name:
-
1200 CNC double-blade multifunctional cutting machine
-
Longitudinal cutting length:
-
1200mm
-
Machinable width:
-
6-20mm
-
Rated power:
-
450kg
-
Material:
-
45#steel
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
After-sales Service Provided:
-
Online support, Video technical support
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
6kw
-
Cutting thickness (max):
-
6-20mm
-
Production Capacity:
-
2-3m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HongYunTaoJi
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2200*1400*1500mm
-
Weight:
-
450 kg
-
Product name:
-
1200 CNC double-blade multifunctional cutting machine
-
Longitudinal cutting length:
-
1200mm
-
Machinable width:
-
6-20mm
-
Rated power:
-
450kg
-
Material:
-
45#steel
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
After-sales Service Provided:
-
Online support, Video technical support

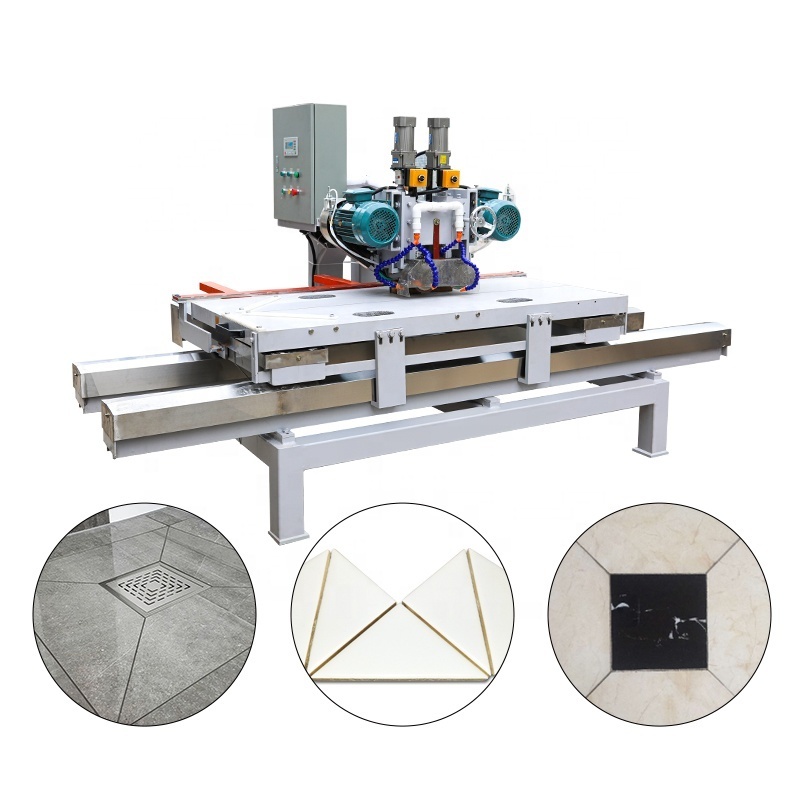

The 1200 CNC manual double-blade cutting machine is improved and developed by our factory on the basis of the CNC manual single blade.It is one of the indispensable products for ceramic tile processing factories.The CNC manual double-blade cutting machine is a supplementary model of the CNC three-blade cutting machine. It improves the manual working mode and can cut triangle, edge material, thin strip and other difficult cutting processes.
A blade (trimming blade) is added on the basis of the CNC manual single blade cutting machine, so that the cut product does not crack or drop the corners, and does not require secondary processing
The support base is made of national standard H steel, and the rigidity and strength life is far beyond that of similar products in the market, and the life span can reach more than 6 years
The guide rail adopts oil-immersed linear guide rail, which greatly improves the accuracy of equipment , and the error is only 0.1mm
We have more options
Foshan Nanhai Hongyun Ceramic Machinery co.,ltd.
Was founded in 2008, with the location at the No. 1, Third Industrial Zone, Baishaqiao Village, Shishan Town,Nanhai District, Foshan City, Guangdong Province,China，Covering an area of 3000 square meters. Our company is a professional supplier of sintered stone porcelain&ceramic tile deep processing equipments,manufacturing in ceramic/porcelain tile cutting machine, 45 degree chamfering machine, arc polishing machine, CNC cutting machine, automatic cutting machine, CNC manual cutting machine, and multifunctional cutting machine and so on.
Before delivery
We would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
Q: What's your quality control system?
A:
All our CNC machines are with CE certificate. Our QC department will do full test of each machine after finish, and send you test video and photos for confirm before delivery.
Q: If I don't know how to use the machine, can you teach me?
A: Yes, sure. There is a U memory disc send together with the machine including machine install video, some video of how to use machine, user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
A: Yes, sure. There is a U memory disc send together with the machine including machine install video, some video of how to use machine, user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime.
Q: Does the machine can be customized according to my requirements?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q: How is your after sales service?
A: Our sales are online for 24-hours. We can also supply overseas install service.
A: Our sales are online for 24-hours. We can also supply overseas install service.
Q: Delivery time
A: 1-3 days, if we have the machine in stock. 5-7 days, if change voltage or special made. 7-15 days, Large quanaitybig production line.
A: 1-3 days, if we have the machine in stock. 5-7 days, if change voltage or special made. 7-15 days, Large quanaitybig production line.
Q: Guarantee terms
A: MachineQuality guarantee term is for one year. Still Provide technical support forever for free. Also supplier the spare parts.
A: MachineQuality guarantee term is for one year. Still Provide technical support forever for free. Also supplier the spare parts.
