Quick Details
-
Place of Origin:
-
Hunan, China
-
Type:
-
Wheel Loader
-
Dimension(Long * Breadth * High):
-
/
-
Machine Weight:
-
5000 kg
-
Bucket capacity:
-
2.7-4.5m3
-
Bucket capacity(m³):
-
2.7-4.5m3
-
Rated load(kg):
-
5000
-
Length*Width*Height(mm):
-
8279*2963*3456 mm
-
Max.dumping height(mm):
-
3150
-
Rated power(kW):
-
162kW
-
Fuel tank capacity(L):
-
300
-
Product name:
-
wheel loader
Quick Details
-
Engine Brand:
-
Famous Brand
-
Power:
-
162kW
-
Brand Name:
-
Chineses Brand
-
Place of Origin:
-
Hunan, China
-
Type:
-
Wheel Loader
-
Dimension(Long * Breadth * High):
-
/
-
Machine Weight:
-
5000 kg
-
Bucket capacity:
-
2.7-4.5m3
-
Bucket capacity(m³):
-
2.7-4.5m3
-
Rated load(kg):
-
5000
-
Length*Width*Height(mm):
-
8279*2963*3456 mm
-
Max.dumping height(mm):
-
3150
-
Rated power(kW):
-
162kW
-
Fuel tank capacity(L):
-
300
-
Product name:
-
wheel loader
Contact me
Alyson Li Sales Manager
Whatsapp/Wechat/Facebook: +8615111175478
E-mail: Alyson5478@outlook.com
Product Details

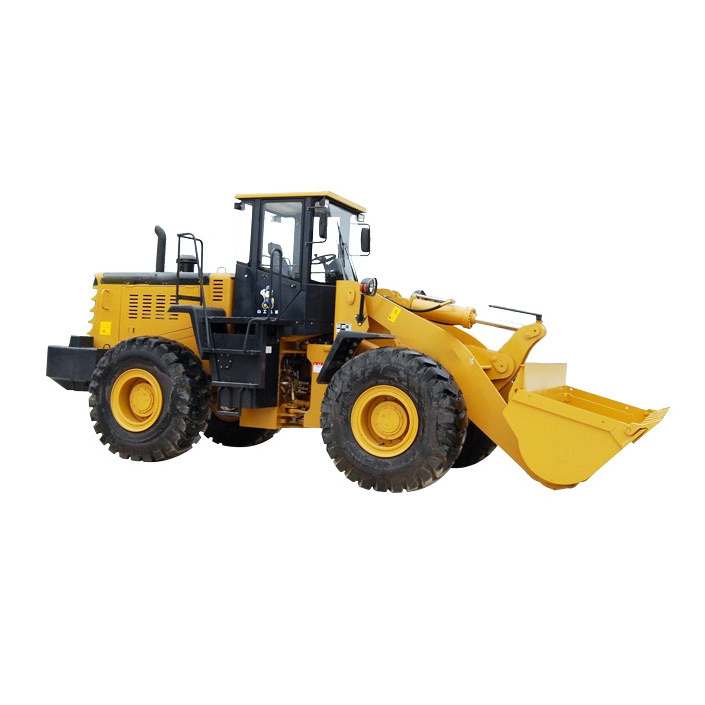

Product Description
Efficient hydraulic system
Full hydraulic load sensing steering system, high efficiency and energy saving
International famous brand hydraulic pump, reliable and durable
Industry-renowned high-pressure tubing
It is more convenient to increase the dedicated pressure measuring point for maintenance
Reliable transmission system
Industry-specific fixed shaft gearbox
Torque converter and gearbox integrated design, compact structure, high reliability
Advanced cooling system
Frame shock absorption
High-performance aluminum cooling package meets 40° environmental capacity
Parallel design of oil bulk and water bulk to effectively balance work and transfer conditions
Sturdy structural parts
Use database information to perform FEA (Finite Element) strength and fatigue life analysis on all structural parts, and check the analysis through OMSA (stress test analysis on the whole machine) test for the stress concentration position, which greatly enhances the structural strength And service life
High structural strength and long service life
Easy maintenance
Fast pressure test connector, large opening of the engine hood design increases maintenance
The water tank protection net can be opened for easy cleaning of the cooling module
Product parameters
|
Main Specifications
|
|
|
|
Rated load capacity (Kg)
|
5000
|
|
|
Operating weight with standard bucket (Kg)
|
16700
|
|
|
Bucket capacities (M3)
|
2.7-4.5
|
|
|
Wheelbase (mm)
|
3200
|
|
|
Overall Dimensions L*W*H (mm)
|
8085×2963×3463
|
|
|
Engine
|
|
|
|
Model
|
6LT9.3
|
|
|
Rated power (kW)
|
162
|
|
|
Rated speed (r/min)
|
2000
|
|
|
Displacement (L)
|
9.242
|
|
|
Operating Specifications
|
|
|
|
Dump clearance (mm)
|
3058
|
|
|
Breakout Force (kN)
|
168
|
|
|
Articulated angle (°)
|
38±1°
|
|
|
Hydraulic system
|
|
|
|
Implement system type
|
Twin pump flow merging hydraulic system
|
|
|
System Pressure setting (Mpa)
|
17
|
|
|
Hydraulic cycle time (s)
|
9.5
|
|
|
Boom Raise time (s)
|
5.13
|
|
|
Axle
|
|
|
|
Main drive type
|
Spiral bevel gear, single stage
|
|
|
Final drive reduction type
|
Planetary type, single stage
|
|
|
Rear - oscillating +/- (°)
|
±11°
|
|
|
Steering system
|
|
|
|
System type
|
Flow amplifying
|
|
|
Steering pump type
|
Gear pump
|
|
|
System pressure setting (MPa)
|
16
|
|
|
Steering angle L/R ( °)
|
38 ±1°
|
|
