Quick Details
-
Brand Name:
-
Bestjades
-
Type:
-
Mixing Valves
Quick Details
-
Port Size:
-
DN20, 3/4''
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
BJ45003
-
Brand Name:
-
Bestjades
-
Type:
-
Mixing Valves
Product details
BASIC INFORMATION
|
Descriptions
|

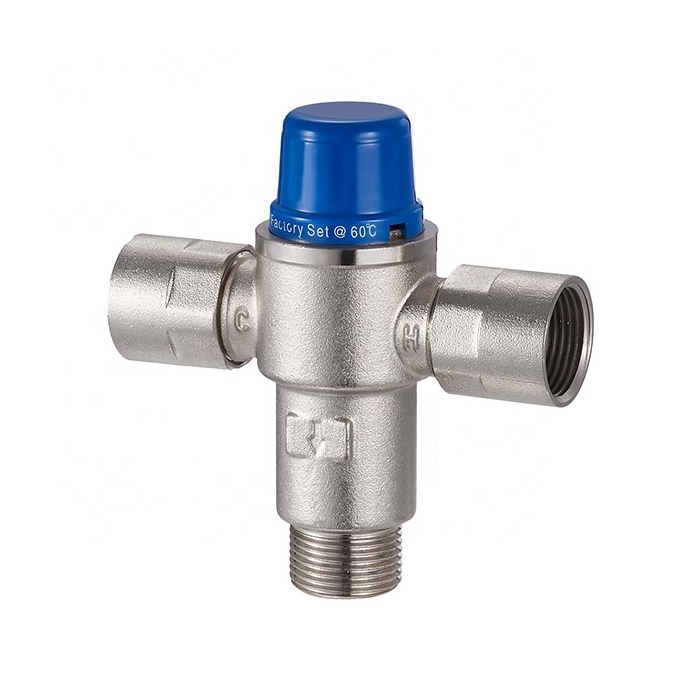

Brass Thermostatic Mixing Valve
|
|
Model No.
|
BJ45003
|
|
Material
|
Brass H58-3 or CW617N
|
|
Processing
|
Forging , CNC Machining
|
|
Surface Treatment
|
Nickel Plated
|
|
Size
|
3/4"
|
|
Working Medium
|
Hot/Cold water
|
|
Cold Water Inlet Temperature
|
4°C-29 °C
|
|
Hot Water Inlet Temperature
|
40 °C -90 °C
|
|
Mixed Outlet Water Temperature
|
30°C -55 °C
|
|
Working Pressure
|
0.03-1Mpa
|
|
Control Precision
|
±2 °C
|
|
Flow Rate(1 kg pressure)
|
26.67 L/min
|
FEATURES & ADVANTAGES
>>
Rapid fail safe on either hot or cold supply failure.
>>
Imported sensor element, delivers stable mixed water temperature.
>>
Extended mix temperature range : 30℃-55℃
>>
Forging process, 100% no leakage
>>
High precision machining, professional engineered designed and produced, to give out
excellent
performance.
>>
Imported sensor element, delivers stable mixed water temperature.
>> Extended mix temperature range : 30℃-55℃
>>
Forging process, 100% no leakage
INSTALLATIONS
1. All installations should be carried out by a Licensed Professional.
2.Install in accordance with markings on valve body. i.e. hot water inlet-marked H, cold water inlet-marked C.
3. After temperature setting, if inlets temperature or pressure fluctuates, outlet temperature variation is within
+/-2 C.
4. The external check valves at inlets prevent cross-flow of hot&cold water when inlets pressure is not the same.
5. If the ratio between two inlets is too large, one flow-limiting valve should be fixed at the side of higher pressure.
6. Prior to installation, provisions should be made to flush the piping of any debris or other foreign materials to ensure proper system operation.
