Automatic dry dog pet food production line pet food processing machine pet kibble production line

Automatic dry dog pet food production line pet food processing machine pet kibble production line

FOB Reference Price: Get Latest Price

≥1 Sets

US $35000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 90/110kw

Weight:: 2000 KG

Dimension(L*W*H):: 20000*5000*4500MM

Product name:: production line pet food processing machine pet kibble production line

Type:: Pet Dog Cat Pellet Food Machine

Advantage:: Easy Operation High Efficiency

Material:: Stainless Steel Food Grade

Energy:: Electricity Diesel Steam Gas

After-sales Service Provided:: Service Machinery Overseas

After Warranty Service:: Video Technical Support Online

Motor:: Simens

Function:: Extrusion Pet Food

Output:: 1-3tons/h

Quick Details

Place of Origin:: Shandong, China

Brand Name:: MT

Voltage:: 380V 50HZ

Power:: 90/110kw

Weight:: 2000 KG

Dimension(L*W*H):: 20000*5000*4500MM

Product name:: production line pet food processing machine pet kibble production line

Type:: Pet Dog Cat Pellet Food Machine

Advantage:: Easy Operation High Efficiency

Material:: Stainless Steel Food Grade

Energy:: Electricity Diesel Steam Gas

After-sales Service Provided:: Service Machinery Overseas

After Warranty Service:: Video Technical Support Online

Motor:: Simens

Function:: Extrusion Pet Food

Output:: 1-3tons/h

Automatic dry dog pet food production line pet food processing machine pet kibble production line

Products Description

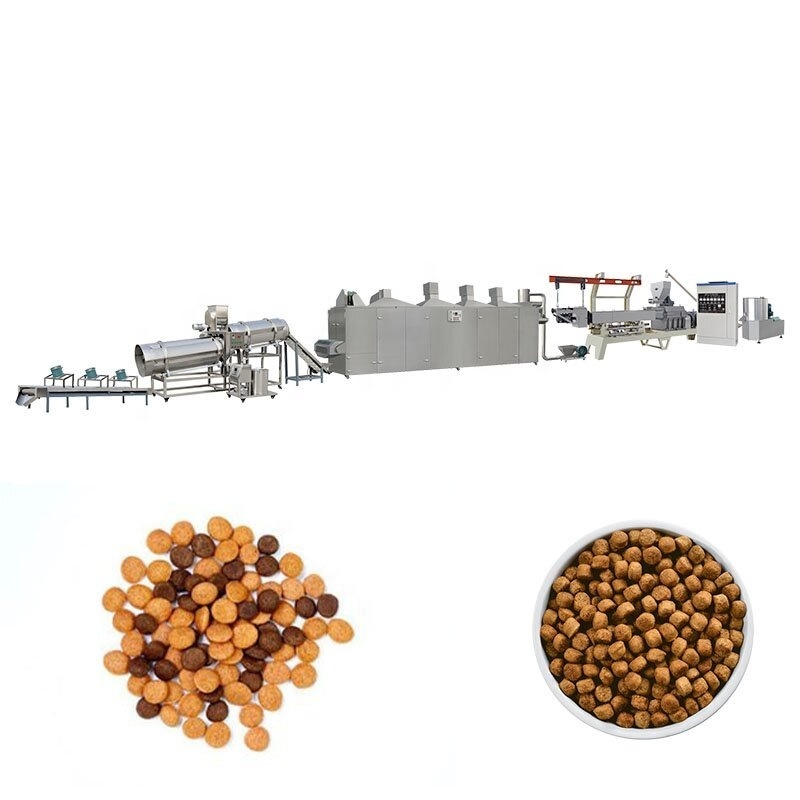

Dry Pet Food Dog Food Production Line .

Raw materials: Usually we will offer our customers some basic formula for dog food, pet food production. The raw materials for dog food production can be corn flour, wheat bran, chicken skin, soybean, bran, oil, salt and vitamin etc.

Application: with strong R & D ability, our engineers offer suitable proposal as customers' requirement, factory size, and local investment. This dog food production line can be used to produce dog food, cat food, floating fish feed, animal feed etc with various shapes and sizes as the moulds or dies changing of Twin Screw Extruder.

Capacity: 100-3000kg/hr

Process Flow

With OEM and ODM design, we promise to offer customers suitable proposal according to his factory size, which includes factory layout, Production line drawing, Turn-key solution from material grinding to final packing system.

Flow Chart of Dog Food Making Machine : Materials preparation--Material blending--Mixing--Extruding--Drying--Coating or flavoring--Cooling--Packing

Model	Dog Food Machine MT70	Dog Food Machine MT85	Dog Food Machine MT100	Dog Food Machine MT135
Installed Power	90KW	145KW	170KW	240KW
Real Consumption	63KW	102KW	120KW	165KW
Capacity	150-200KG/HR	300-500KG/HR	1000-1500KG/HR	2000-3000KG/HR

Sample Pictures

Dog food production line produces dog food products with unique shapes, taste and color, which is rich in scientific nutritional ratio and digestibility. This dog food processing line characterizes with reasonable structural design, special material, self- cleaning performance and stability. Easy operation, accurate parameter. The final dog food products have specific temperature, pressures, humidity and time, which is popular is market.

Machine Details

Grinding Machine.

Grinding raw materials into flour, food touch part is stainless steel 304.

Discharge method: bottom butterfly valve discharge.

Particle fineness: less than 10mm

Production capacity: according to different model.

Batching machine.

Equipment: Vacuum feeder (Qty is decided on main raw materials), weighing silo, platform, dosing weigher, ribbon mixer.

Silo: Qty is according to customer's formular.

Weighing process: The weighing module is matching with matching instruments.

Customization: Provided.

Twin Screw Dog Food Extruder.

This is the main machine of dog food production line, which is used to extruding raw materials. It adopts frequency speed controlling system with high automatic and stable performance.

Automatic lubricating, cooling, which guarantee machine running safely, stable and reliable.

The capacity can be up to 3 ton per hour.

Dog food Roaster machine.

The Heating source can be electric, steam and gas. All can be designed according to customer's local conditions and requirement.

Usag e: drying the moisture of humid air out of extruding products, reducing the heat waste.

Coating machine.

The flavoring machine for dog food can be single drum tumbler or double drum tumblers, or vacuum coating machine.

Usage: for pet food, dog food, cat food flavoring, surface will be sprayed uniformly.

Cooling Machine for pet food production.

Application: air lock, big air intake area, cooling effect is significant.

Swing discharge mechanism, no residual.

Low energy consumption

Easy to operate.

Usage: count flow cooling process procedure

Packing machine.

Process: including automatic weighing, sealing, marking, coding and packing.

Packing forms: bag filling, semi-automatic packing.

Features: high precision, high speed, long service life, good stability, manual bagging.

Automatic measurement, designed for vibration feeding, electronic pad weighing, to overcome the error of measurement caused by the change of material proportion.
