Quick Details
-
Voltage:
-
380V, 220V/380V/440V or can be customized
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
800mm*420mm*1170mm
-
Weight (KG):
-
290
-
Name:
-
Forging air hammer
-
Color:
-
Blue or can be customized
-
Usage:
-
Steel Bar Heading Machine
-
Function:
-
Die Forging
-
Keyword:
-
Air Power Hammer C41-16
-
After-sales Service Provided:
-
Engineers
-
Feature:
-
Easy Operation
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WADJAY, WADJAY
-
Machine Type:
-
Air Hammer, Power hammer
-
Voltage:
-
380V, 220V/380V/440V or can be customized
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
800mm*420mm*1170mm
-
Weight (KG):
-
290
-
Name:
-
Forging air hammer
-
Color:
-
Blue or can be customized
-
Usage:
-
Steel Bar Heading Machine
-
Function:
-
Die Forging
-
Keyword:
-
Air Power Hammer C41-16
-
After-sales Service Provided:
-
Engineers
-
Feature:
-
Easy Operation
Product Description

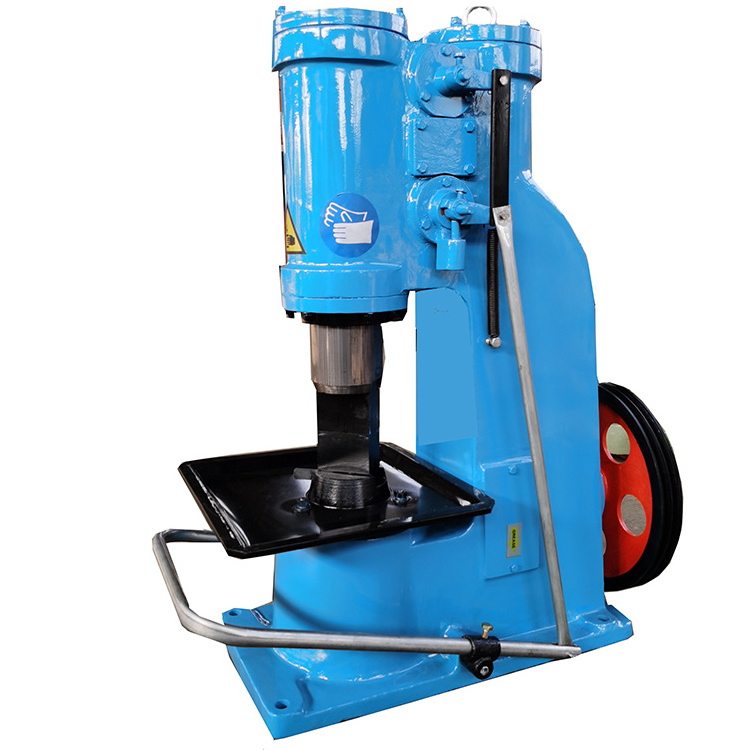

Product Introduction for forging air hammer
Pneumatic Hammer, a kind of free forging machine. Air Hammer Forging Machine The compression cylinder compresses the air and sends it into the working cylinder through the distribution valve, pushing the piston together with the hammer head to move up and down for hammering. Flexible operation, widely used in the production of small and medium forgings. The air hammer is mainly composed of a frame, a transmission mechanism, a compression cylinder and a working cylinder, a compression piston, a falling part, an air distribution mechanism and an anvil.
Product Features for air hammer
1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
4.
Using compressed air as power to meet the needs of safe production, the percussion strength and frequency can be controlled by adjusting the air pressure
5.
The machine body is made of cast iron, and the large-tonnage air hammer anvil is made of cast steel
6.
The mechanism is simple and not easy to damage when operating air hammer
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Specification
|
Item
|
C41-16KG
|
C41-20KG
|
C41-25KG
|
C41-40KG
|
|
Weight of falling parts(KG)
|
16
|
20
|
25
|
40
|
|
Max.hit energy(KJ)
|
0.18
|
0.22
|
0.27
|
0.53
|
|
Height of working area(mm)
|
180
|
200
|
240
|
245
|
|
Hit number(min)
|
258
|
255
|
250
|
245
|
|
Dimension of top and bottom die surface(L*W mm)
|
70*40
|
90*50
|
100*50
|
120*50
|
|
Max. square steel can be forged(Diameter mm)
|
20*20
|
30*30
|
40*40
|
52*52
|
|
Max. round steel can be forged(Diameter mm)
|
Φ 22
|
Φ 35
|
Φ 45
|
Φ 68
|
|
Rate power(kw)
|
1.5
|
2.2
|
3
|
4
|
|
Speed of motor(r.p.m)
|
1440
|
1470
|
1470
|
1440
|
|
Total weight(kg)
|
290
|
460
|
560
|
980
|
|
Overall dimensions(L * W * H mm)
|
800*420*1170
|
970*460*1310
|
980*510*1200
|
1200*600*1630
|
Workshop Overview
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
