Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter
Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter
Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter
Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter
Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter
Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter
Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter
Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter

Toowei 16mm Waterproof Car boat switch waterproof push button on off Horn Engine Starter

FOB Reference Price: Get Latest Price
≥200 Pieces
US $1.39
≥2000 Pieces
US $1.33
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Toowei
Model Number:
4166.8106.18 4166.8206.18
IP level:
IP67
Product name:
Waterproof Car Boat Track Push Button Switch Horn Engine Starter
Part number:
4166.8106.18 4166.8206.18
Rating:
3A 250VAC
Function:
Latching/momentary
Mounting Hole Size:
16MM
Terminal:
2 pins Solder terminal/With wires
Protection level:
IP67
Material:
Plastic/Metal

Quick Details

Protection Level:
IP67
Max. Current:
3A
Max. Voltage:
250V
Place of Origin:
Zhejiang, China
Brand Name:
Toowei
Model Number:
4166.8106.18 4166.8206.18
IP level:
IP67
Product name:
Waterproof Car Boat Track Push Button Switch Horn Engine Starter
Part number:
4166.8106.18 4166.8206.18
Rating:
3A 250VAC
Function:
Latching/momentary
Mounting Hole Size:
16MM
Terminal:
2 pins Solder terminal/With wires
Protection level:
IP67
Material:
Plastic/Metal
Products Description

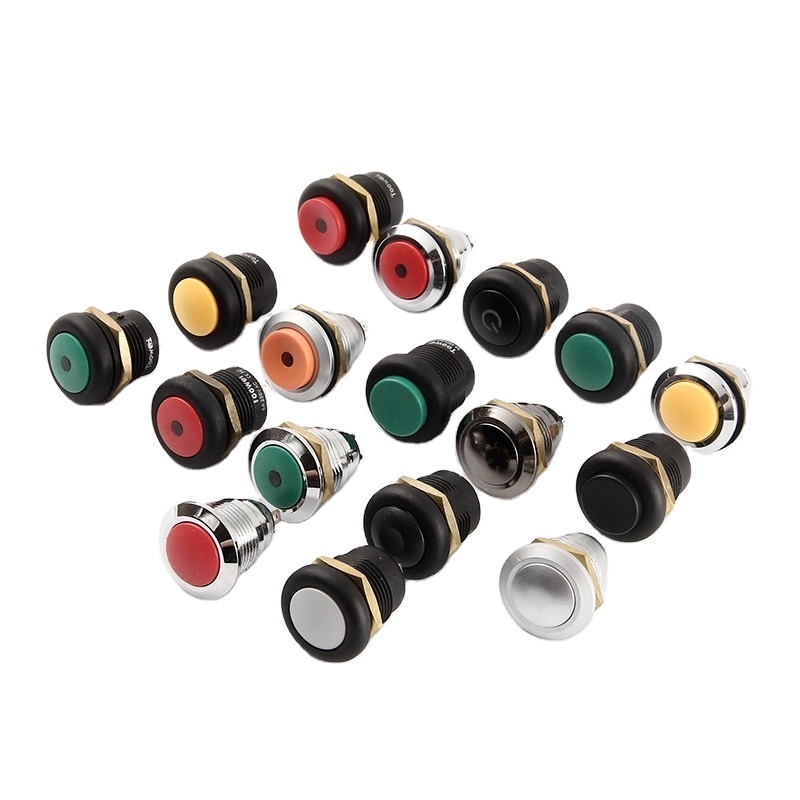

A4166series waterproof push button switch, protection degree reach IP67, installation size is 16mm. According to the material, it has metal push button switch and plastic push button switch. All the switches has self-locking and momentary two different kinds. If equip with LED light, color can be customiZed based on the customer's request. It widely used in beauty equipment, small yacht, lamps, medical equipment, military communication intelligent network equipment and the other instruments.
Product name
Waterproof Car Boat Track Push Button Switch Horn Engine Starter
Part number
4166.8106.18/ 4166.8206.18
Function
latching/momentary
Dimension
16MM
Button Color
Green
Shell material
Black plastic
Details Images
Product Paramenters

Technical Parameter

1. Operating force ≤6Nf, best range is 5Nf~6Nf, Maximum endurance 5kgf
2. Contact resistance ≤50m Ω
3. Rated current 3A, rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10. Base Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 12mm
12. Self-locking, momentary
