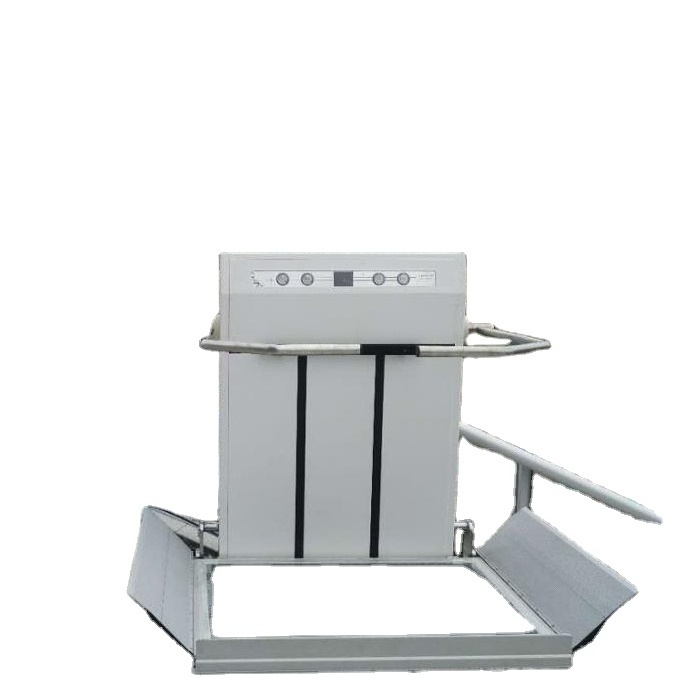

This wheelchair lifting platform helps the disabled and the elderly to move to a higher floor, which is very convenient for passengers to get up and down the stairs. It can be installed on one side of the indoor or outdoor stairs. The platform can be folded and does not occupy space. It is a very convenient device for wheelchair lifting.
Handicapped elevator with chain hydraulic lifts for disabled people
Features
1. The platform control system is easy to operate and equipped with emergency stop switch.
2. Call station operation control; manned closing panel; power lock
3. Surface treatment: durable electrostatic spraying coating, polished stainless steel and standard color can be used.
4. Bending safety arm: 880mm automatic safety arm is installed on the platform.
5. Pedestrian safety warning light: yellow light is emitted at both ends of the floor before and after the platform.
6. Overspeed safety device: installed at the bottom of guide rail, equipped with mechanical overspeed sensor and brake, and electronic drive circuit breaker protection. When someone manipulates the platform, the safety sensor board can detect obstacles and stop running when encountering obstacles.
7. Platform can be lowered manually in emergencies.
Handicapped elevator with chain hydraulic lifts for disabled people
|
Platform size
|
1120mm*800mm(Non-standard size)
|
|
Load capacity
|
250kg
|
|
Speed
|
0~7M/MIN /0-7m/min
|
|
|
Slow down when reaching or leaving platforms
|
|
Drive system
|
1.5KW-VVVFcompact drive system
|
|
Guide rail
|
Independent driving system and rails makes one body, guard rail and posts are made of 304 SS.
|
|
Power
|
AC 220/380V 50Hz-60Hz,15AAC 220/380V 50Hz-60Hz,15A
|
|
communication
|
Carrier communication
|
|
Platform operation
|
Emergency STOP button to bring the lift to an immediate stop,Key switch to enable use of the pendant control buttons,DC24V
|
|
Remote call station buttons
|
Used to call/send the lift and fold/unfold the platform (call send only works with platform folded up)
|
|
Surface
|
Durable static powder coat and stoving varnish, optional color
|
|
Safety arms
|
Automatically safety arms installed 880mm high on the platform
|
|
Safety warning lighting
|
The yellow landing light is mounted in view of each landing and the travel of the lift, either at the middle landing or in the middle of travel The landing light flashes to indicate that the unit is in use.
|
|
Over-speed governor
|
The over-speed governor is a safety device located at the lower end of the rail. It will activate to quickly bring the lift to a stop if it is descending down the stairs too quickly.
|
|
Obstruction sensors
|
Stop working when encounter an obstacle
|
|
Manual toggle key
|
Manual descend the platform and fold the platform in emergency
|
|
Drive system
|
Rope sprocket drive system
|
|
Direction system
|
Modular guide rail system
|
|
Control system
|
PLC control
|
|
Overload protection
|
Relay protection device
|
|
Guard plate
|
Three side, Two side automatic
|
|
Emergency stop
|
Located on the platform control panel can be pressed in an emergency to stop the lift.
|
|
Safety interlock
|
No working if safety devices not in its position
|
|
Safety edge
|
Stop working when encounter an obstacle
|
|
Power-off control
|
Manual folding when power off
|
cheap disabled stair climber electric wheelchair inclined platform lift handicap lifts for stairway
1. Established early
Jinan Honty lift was founded in 2005, which is one of the main manufacturer of hydraulic equipments
2. Mature technology
we took the development on the technology of hydraulic lifting table as well as elevator,We have excellent equipment,advanced technology, perfect detection method and skilled technicians
3. Good reputation
we are also given the honor of “Company with good credit” by the Chinese Government. and
now we are the main number of the manufacturer of Lifting, Transportation, Stocking and Logistics of China as well
4. Many kinds of products
we have 12 series, more than 100 models products, main business is to design and manufacture non-standard product.
5. CE&ISO
Our products approved -CE&ISO,
6. Exported to many countries
Products are exported to Europe ,North America ,South America, Mid-east, Southeast Asia ,Easten Asia,etc.and got good reputation.
7.OEM service
