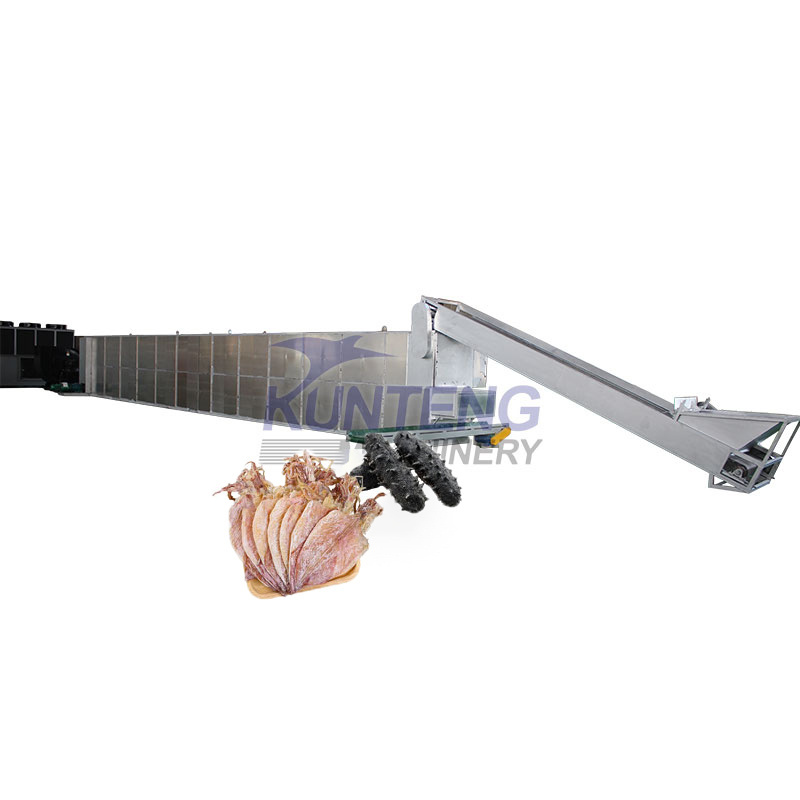

Commercial food drying machine convection dryer sea cucumber dryer machine
Commercial food drying machine convection dryer sea cucumber dryer machine
Commercial food drying machine convection dryer sea cucumber dryer machine
Commercial food drying machine convection dryer sea cucumber dryer machine
Commercial food drying machine convection dryer sea cucumber dryer machine
Commercial food drying machine convection dryer sea cucumber dryer machine
Commercial food drying machine convection dryer sea cucumber dryer machine
Commercial food drying machine convection dryer sea cucumber dryer machine

Commercial food drying machine convection dryer sea cucumber dryer machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $45900
≥5 Sets
US $45700
≥10 Sets
US $45500
≥15 Sets
US $45300
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Type:
sea cucumber dryer machine
Voltage:
220-420V can be customized
Power:
30-95kw
Weight:
5000 KG
Dimension(L*W*H):
10000*2000*2600mm
Year:
2023
Name:
sea cucumber dryer machine
Product name:
convection dryer sea cucumber dryer machine
Heating source:
Electricity,coal, natural gas, diesel oil,wood, biomass particles
Keywords:
sea cucumber dryer machine
Raw material:
vegetables,fruits,grain,maize,rice,fish,biltong,cassava,paddy,mango,
Usage:
Drying sea cucumber
Function:
High Efficiency Drying
Feature:
High Efficiency Low Cost
Advantage:
Low Consumption High Efficiency
Application material:
Wide Application

Quick Details

Marketing Type:
New Product 2023
Place of Origin:
Henan, China
Brand Name:
KUNTENG
Type:
sea cucumber dryer machine
Voltage:
220-420V can be customized
Power:
30-95kw
Weight:
5000 KG
Dimension(L*W*H):
10000*2000*2600mm
Year:
2023
Name:
sea cucumber dryer machine
Product name:
convection dryer sea cucumber dryer machine
Heating source:
Electricity,coal, natural gas, diesel oil,wood, biomass particles
Keywords:
sea cucumber dryer machine
Raw material:
vegetables,fruits,grain,maize,rice,fish,biltong,cassava,paddy,mango,
Usage:
Drying sea cucumber
Function:
High Efficiency Drying
Feature:
High Efficiency Low Cost
Advantage:
Low Consumption High Efficiency
Application material:
Wide Application
PRODUCTION DESCRIPTION
We specialize in producing Commercial food drying machine convection dryer sea cucumber dryer machine . We have completed many design cases for our clients around the world. If you want more information, you can contact us 24 hours a day and a professional engineer will answer your questions. KUNTENG Drying machine has 30 years of rich industry experience and a data base of hundreds of agricultural products drying processes. It can customize production lines and supporting facilities at different prices according to customers' needs for different materials.

Working principle:

Our Commercial food drying machine convection dryer sea cucumber dryer machine adopts continuous components and has a multi-layer structure in the dryer, The inner mesh surface of the oven is made of 304 stainless steel,The oven adopts multi-layer mobile mesh belt transmission, wet materials are conveyed from the first layer to the last layer by conveyor belt,the hot air flow passes through the mesh belt from bottom to top.The final moisture comes out of the top of the dryer. the dried materials are conveyed by a discharge conveyor.
Our Commercial food drying machine convection dryer sea cucumber dryer machine adopts air drying technology, all kinds of materials can be dried without damaging the nutritional value, such as vegetables,fruits,grain,maize,rice,fish,biltong,cassava,paddy,mango,corn,cocoa,tomato,onion,pasta,chips,red chilli,meat,sesame seed,coffee beans,coconut copra,pasta,garlic,hemp,tea leaf,black soldier fly,herbs,alfalfa,charcoal briquette,mushroom,flower,pineapple,static,grapes.etc.
Main components of mesh belt dryer
Conveyor chain
The feeding conveyor and discharge conveyor both equipped with c onveyor chain.
1.Using food grade 304 stainless steel mesh,
2.Wear - resistant and corrosion-resistant,
3.Health and Safety,
4.High tensile strength,solid and durable
Observation door
The Drying box equipped with two observation door.
1.It is easy to opening and cleaning, 2.Convenient to observe and check material inside. 3.Easy maintenance and inspection
Temperature control system
Temperature control system adopts professional temperature control system, it can exact control temperature ±1℃ to ensure drying quality.
1. Fully automatic 2. Stable performance 3. Easy to operate
Fan of mesh belt drying machine
Mesh belt dryer equipped with high quality fan to smoothly transport the hot air into the drying box.
1.high efficiency, 2.low noise, 3.large air volume.
Product parameters
Model
(Width*Length)
KT1.5-6-4
KT2-8-4
KT2-9-4
KT2-10-4
KT2-12-4
Layers
4




Drying area(㎡)
29
45
51
57
69
Spread thickness of material(mm)
50-200




Working temperature(℃)
0-120




Working time(hour)
24




Capacity(t/h)
100-150kg/h
200kg/h
250kg/h
300kg/h
500kg/h
heat exchange furnace(M)
3.2*1*2.7
3.9*1.26*3
3.9*1.26*3
4.7*1.5*3
4.7*1.5*3
Induced draft fan(kw)
11
15
15
22
22
Exhaust fan(kw)
1.5

2.2


Feeding conveyor(kw)
1.5
2.2
2.2
2.2
3
Discharge conveyor(kw)
0.55




Total power(kw)
14.55
19.25
19.95
26.95
27.75
LP gas consumption (90 degree fanrenheit)
20m³/H
25m³/H
28m³/H
30m³/H
36m³/h
Place requirement
(W*L*H)M
4.5*14*2.7
5*19*2.8
4.5*20*2.8
5.5*21*2.8
5.5*23*2.8
Mesh Belt Dryer Heat Source
The heat source:
The heat source of the Commercial food drying machine convection dryer sea cucumber dryer machine can be electric, coal, natural gas, diesel oil,wood, biomass particles, etc.
RELATED PRODUCTS
CUSTOMER SITE
Packing and shipping
COMPANY PROFILE
KUNTENG company was founded in 1999. We have been engaged in manufacturing all kinds of f ruit and vegetable Air drying machine, Commercial food drying machine convection dryer sea cucumber dryer machine , Mesh belt drying machine,Heat pump drying oven for many years.We got more patented technologies and honor. Our machine has passed ISO9001:2000CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.

Our service

1. Three guarantee services ,
2. The equipment is well debugged before leaving the factory,
3. On-site installation and debugging of large-scale equipment technicians,
4. The technician will teach you the operating instructions of the equipment,
5. All the above are free.

FAQ

1. who are we?
We are a professional manufacturer in China, passed Alibaba field certification.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time?? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
