Quick Details
-
Product Name:
-

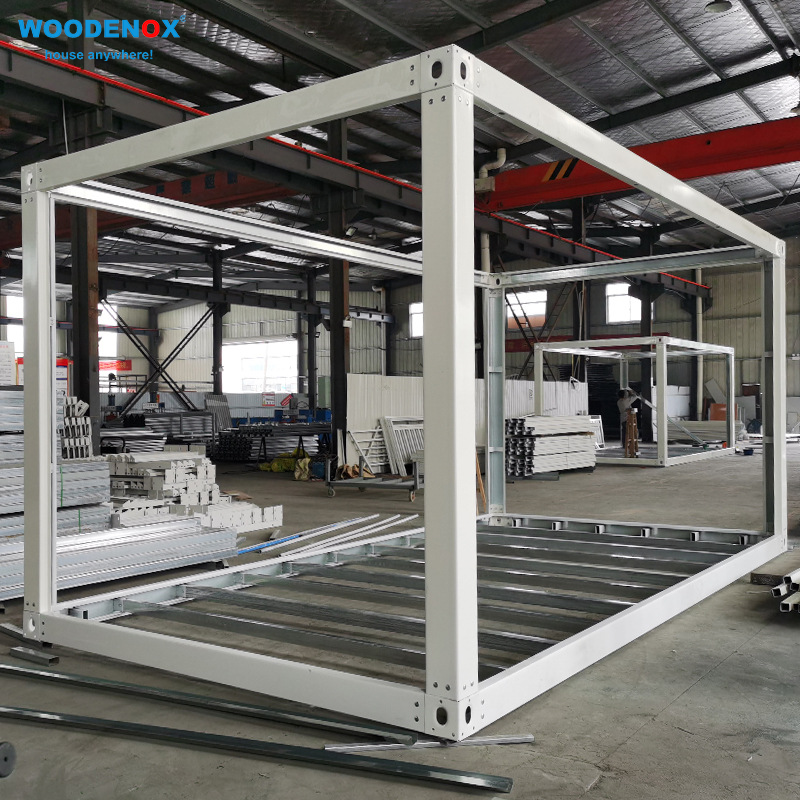

Galvanized Steel Container Frame
-
Container frame size:
-
5950*3000*2800mm or customizable
-
Model Number:
-
WNX230419
-
Top and bottom steel frame:
-
2.3mm Q235B galvanized steel
-
Column:
-
2.3mm Q235B galvanized
-
Corner parts:
-
3.5mm Q235B galvanized
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WOODENOX
-
Material:
-
Steel Structure
-
Product Name:
-
Galvanized Steel Container Frame
-
Container frame size:
-
5950*3000*2800mm or customizable
-
Model Number:
-
WNX230419
-
Top and bottom steel frame:
-
2.3mm Q235B galvanized steel
-
Column:
-
2.3mm Q235B galvanized
-
Corner parts:
-
3.5mm Q235B galvanized
Details Images
Products Description
Remark：
We provide a detailed list of parts that come with the shipment on our invoices. Customers know exactly what they have purchased and what they have received. Our goal is to ensure every order is fully executed to the customer’s standard.
Remark：
The following parameters are for our standard detachable container house.
|
Item
|
Value
|
|
Detachable container house size
|
5950*3000*2800mm(or customized)
|
|
Designed service life
|
10 years
|
|
Top and bottom steel frame
|
Top main beam:
2.3mm
Galvanized Q235B, main beam H 355mm
|
|
|
Top secondary beam:
2.3mm
Galvanized Q235B, secondary beam H 355mm
|
|
|
Bottom main beam:
2.3mm
Galvanized Q235B, main beam H 355mm
|
|
|
Bottom secondary beam:
2.3mm
Galvanized Q235B, secondary beam H 355mm
|
|
|
Column:
2.3mm
Galvanized Q235B, column H 465mm
|
|
Roof system |
Roof skin panel:
0.40mm
Color steel board
|
|
|
Top insulation: 50 mm Glass wool
|
|
|
Roof ceiling:
0.25mm
color steel ceiling tile
|
|
Ground system
|
18mm Mgo board
|
|
Corner parts
|
3.5mm
Galvanized Q235B
|
|
Wall panel
|
50mm/75mm/100mm sandwich panel, grade A fire retardent
|
|
Door
|
80mm high profile steel door, with casement and lock
|
|
Window
|
70 mm UPVC/Aluminum single glass
|
|
Interior decoration
|
Custom requirement
|
|
Accessories material
|
Standard Including all screws, structural adhesive, etc
|
|
Assembly
|
All use bolts, No welding
|
Customer Recommends
Customization
Custom Size:
The size of our standard
detachable container house
can be customized to meet your individual needs. Our standard size is
5950*3000*2800 mm
.
To meet the minimum order quantity of 17 sets, we can customize any size that meets the requirements.
Custom Extra Parts
:
Additions include: stairs, terrace, glass guardrails, triangular roof, glass walls, toilet, canopy, corridor, and/or steel guardrails.
Custom Design
:
Our designers can provide you with free 3D drawing according to your design when the MOQ is met.
Product packaging
Packaging Details：
1.AII of steel columns,beams and plates are maked packaged.
2.All the parts will be filmed by different sides and fixed stablly in the container.
3. According to container size, standard export package.
1.AII of steel columns,beams and plates are maked packaged.
2.All the parts will be filmed by different sides and fixed stablly in the container.
3. According to container size, standard export package.
