Quick Details
-
Input Speed:
-
Max 1450 rpm
-
Output Speed:
-
1.5~1200rpm(customized)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOSEN
-
Model Number:
-
RN
-
Drive Shaft:
-
2 way 3 way 4 way
-
Efficiency::
-
95%
-
Gearing Type:
-
Spiral Bevel Gear
-
Rotate Direction:
-
clockwise anti-clockwise
-
Noise Level:
-
less than 80dB
-
Temperature Level:
-
less than 50 Degrees Celsius
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
Max 5713 N.m
-
Rated Power:
-
Max 251.25Kw
-
Input Speed:
-
Max 1450 rpm
-
Output Speed:
-
1.5~1200rpm(customized)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOSEN
-
Model Number:
-
RN
-
Drive Shaft:
-
2 way 3 way 4 way
-
Efficiency::
-
95%
-
Gearing Type:
-
Spiral Bevel Gear
-
Rotate Direction:
-
clockwise anti-clockwise
-
Noise Level:
-
less than 80dB
-
Temperature Level:
-
less than 50 Degrees Celsius

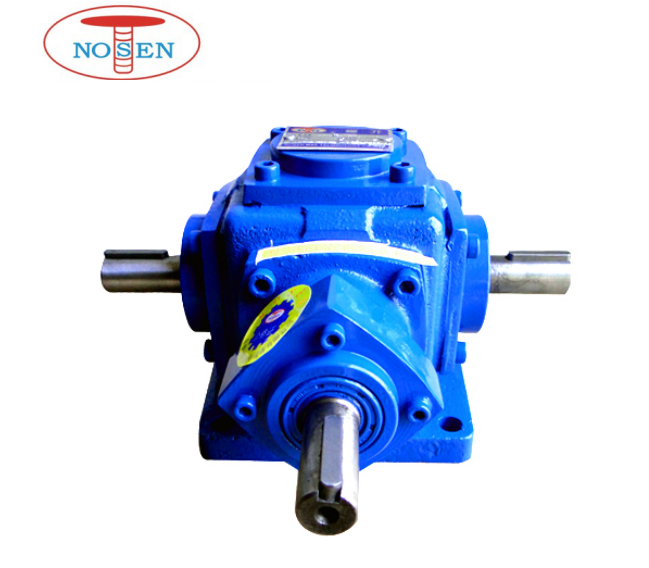

High Efficiency Agricultural Tractor 540 PTO Gearbox
| Features | |
| Model |
RN-2M,RN-4M,RN-6M,RN-8M, RN-10M,RN-12M,RN-16M, RN-20M,RN-25M. |
| Speed Ratio | 1:1,2:1,3:1,4:1,5:1. Special ratio,following clients' orders |
| Input Shaft | 2 ways,3ways,4 ways gearboxes are available |
| Configurations |
spiral bevel gears,bearings,aluminum housing,oil sealing, input and output shafts etc. |
| Material |
Alloy steel spiral bevel gears: , taper roller bearings, cast iron gearbox base; S45C Input&Output shaft |
| Functions | right angles change transmission directions, |
| Compared to worm gear reducer: | |
| spiral bevel gear box is of flexiable operational capacity, | |
| high transmission torque and save more cost. |
For Example:
Model: RN-2M-I-LR-O--1:1
RN---- Nosen brand
2M--- Gearbox base No.
I-LR-O--- Direction code
1:1---- Speed ratio
