Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VATTI GLASS
-
Model Number:
-
Borosilicate Glass
-
Shape:
-
customizable
-
Size:
-
Custom Sizes
-
Edge:
-
Fine Polished Edge
-
Delivery Time:
-
Within 15-20 days after receiving the deposit
-
Packing:
-
Wooden Cases
-
Installation:
-
built-in
-
Surface:
-
Polished,non-polished
-
Corner:
-
Right angle,rounded angle
-
Printing:
-
Customizable
-
Feature:
-
high pressure resistant
Quick Details
-
Application:
-
Workshop
-
Usage:
-
Industrial
-
Thickness:
-
customizable
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VATTI GLASS
-
Model Number:
-
Borosilicate Glass
-
Shape:
-
customizable
-
Size:
-
Custom Sizes
-
Edge:
-
Fine Polished Edge
-
Delivery Time:
-
Within 15-20 days after receiving the deposit
-
Packing:
-
Wooden Cases
-
Installation:
-
built-in
-
Surface:
-
Polished,non-polished
-
Corner:
-
Right angle,rounded angle
-
Printing:
-
Customizable
-
Feature:
-
high pressure resistant
Warm reminder
Please contact us before placing an order. The product price is for reference only and does not represent the specific selling price. Because there are too many product sizes, parameters need to be provided for processing. Outer diameter, thickness, length and quantity. For the length, width, thickness and quantity of square pieces, it is best to provide the drawing mailbox so that we can make an accurate quotation
Please contact us before placing an order. The product price is for reference only and does not represent the specific selling price. Because there are too many product sizes, parameters need to be provided for processing. Outer diameter, thickness, length and quantity. For the length, width, thickness and quantity of square pieces, it is best to provide the drawing mailbox so that we can make an accurate quotation
Product Description

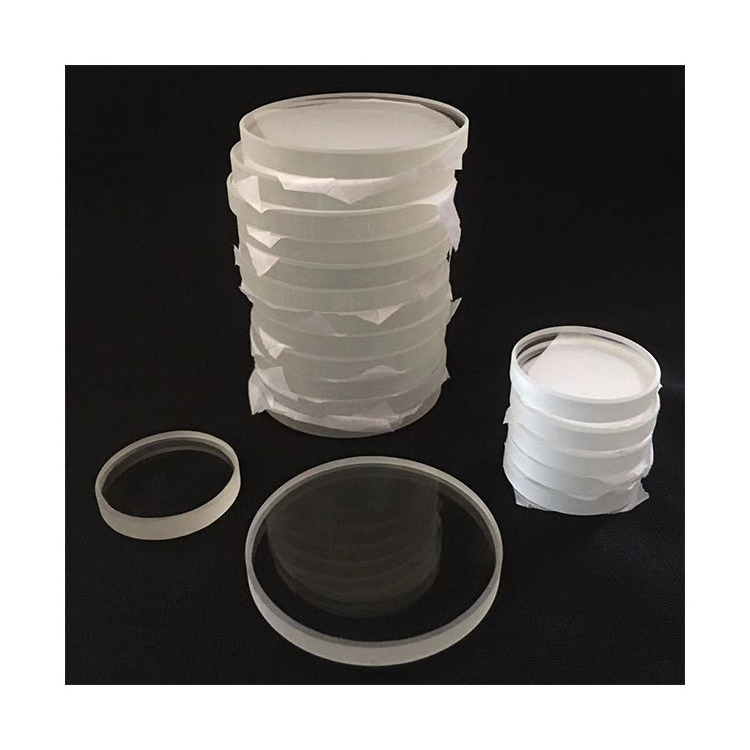

Borosilicate glass is one of transparent colorless glasses, the wavelength is between 350nm to 2500nm, and the transimitance is more than 90%.
It's alkalifast, and the high temperature is up to 400°C,If course handling, the high temperature resiatant can reach 550°C.
It's alkalifast, and the high temperature is up to 400°C,If course handling, the high temperature resiatant can reach 550°C.
Features of borosilicate furnace viewing glass as following:
1. Raw material: Borosilicate glass, Pyrex, Optical glass.
2. Processing: by Molding, Grinding, Polishing.
3. Surface quality: optical surface quality and well controlled tolerance
4. Inside quality: clear and transparent, no mold marks, no inside bubble and dirts.
5. Great heat resistance performance,stable chemical property.
6. Working field :widely used in high-temperature observation windows, lighting (high-power lighting panel), appliances, laboratory containers, solar, lighting and other fields.
1. Raw material: Borosilicate glass, Pyrex, Optical glass.
2. Processing: by Molding, Grinding, Polishing.
3. Surface quality: optical surface quality and well controlled tolerance
4. Inside quality: clear and transparent, no mold marks, no inside bubble and dirts.
5. Great heat resistance performance,stable chemical property.
6. Working field :widely used in high-temperature observation windows, lighting (high-power lighting panel), appliances, laboratory containers, solar, lighting and other fields.
More details, please feel free to contact me.
Specification
High Borosilicate Performance Report
|
SiO2
|
B2O3
|
Al2O3
|
Na2O+K2O
|
|
80±0.5%
|
13±0.2%
|
2.4±0.2%
|
4.3±0.2%
|
|
Characteristics
|
|
|
|
Coefficient of mean linear themal
expansion(20°C/300°C) |
3.3±0.1(10–6K–1)
|
|
|
Softening point
|
820±10°C
|
|
|
Melting point
|
1260±20°C
|
|
|
Transformation temperature
|
525±15°C
|
|
|
Hydrolytic resistance at 98°C
|
ISO719-HGB1
|
|
|
Hydrolytic resistance at 121°C
|
ISO720-HGA1
|
|
|
Acid resistance class
|
ISO1776-1
|
|
|
Alkali resistance class
|
ISO695-A2
|
|
Application
