HM6080 Dynamic characteristic circuit breaker tester for high voltage switch test set circuit breaker CB analyzer

HM6080 Dynamic characteristic circuit breaker tester for high voltage switch test set circuit breaker CB analyzer

FOB Reference Price: Get Latest Price

≥1 Sets

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HMDQ

Model Number:: HM6080

Product name:: CB analyzer

Usage:: Auto Testing Machine

Measurement range()0Time)::: 4000.0ms

Resolution(Time)::: 0.1ms

Measurement range(Speed)::: 20.00m/s

Resolution(Speed)::: 0.01m/s

Measurement range(Current)::: 20.00A

Output power supply:: DC30~250V digital

Dimension:: 360mm (L) *280mm (W) *300mm (H)

Quick Details

Warranty:: 1 year

Power:: Electronic

Place of Origin:: Hubei, China

Brand Name:: HMDQ

Model Number:: HM6080

Product name:: CB analyzer

Usage:: Auto Testing Machine

Measurement range()0Time)::: 4000.0ms

Resolution(Time)::: 0.1ms

Measurement range(Speed)::: 20.00m/s

Resolution(Speed)::: 0.01m/s

Measurement range(Current)::: 20.00A

Output power supply:: DC30~250V digital

Dimension:: 360mm (L) *280mm (W) *300mm (H)

HM6080 Dynamic characteristic circuit breaker tester for high voltage switch test set circuit breaker CB analyzer

Product Description

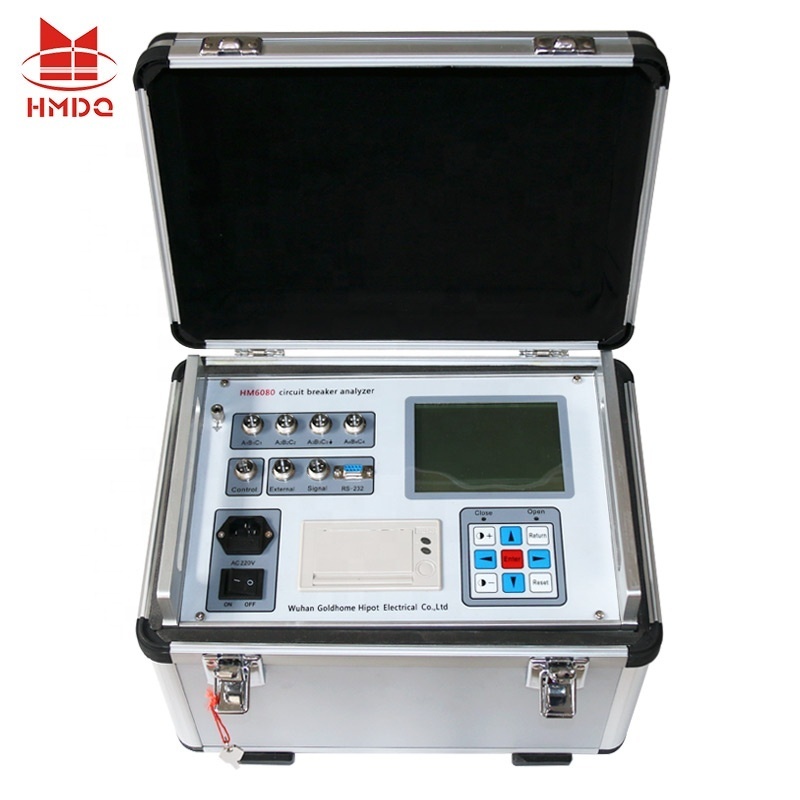

This Circuit breaker analyzer It is suitable for the mechanical characteristic test of SF6 switch, GIS combination, vacuum switch and oil switch produced at home and abroad.

Main Features

1. It is applicable to all the types of SF6 switch, GIS switchgear, vacuum switch and oil switch with metal contact manufactured at home and abroad.

2. With universal speed sensor, linear travel sensor and rotation sensor, it is very convenient and simple to install it.

3. The main frame has a liquid crystal large screen, of directly transmissive type, with background light, and the contrast is adjusted electronically. Menus in English gives prompt for operation. If you carry out on-off action once, then it will display all the data and oscillogram.

4. The main frame can store several sets of switch off and switch on test results, and there is a real-time clock in the device so that it is convenient to file and record the date and specific time of test.

5. Built-in micro-printer of fast speed can print out all the data and illustrations.

6. The instrument is equipped with the software named Windows DB-8001/8001(II) Circuit Breaker Data Analysis Management Software (Chinese Version) connected with a PC, and test results can be either saved in the hard disk directly or sent to all kinds of printers so that test reports can be printed out. This makes field tests computerize.

7. The instrument is provided with strong data analysis function, which is able to effectively analyze each index and parameter of mechanical characteristics of circuit breakers.

8. The instrument is equipped with user-defined additional program of speed so that users can free add all kinds of instantaneous opening speed and instantaneous closing speed as necessary.

Technical parameters

1 .Operating environment

Input power supply: 220V±10% 50Hz±10%
Atmospheric pressure: 86~106kPa
Temperature: -10~40℃
Humidity: ≤80%RH

2. Safety performance

Dielectric strength: Power on power frequency 1.5KV pressure for 1 minutes.,without any arc over.

3. Basic parameters

Time: Measurement range: 4000.0ms
Time:Resolution: 0.1ms
Error: Within 100ms : 0.1ms±1 words ; Above 100ms: 0.1%±1 words; Synchronization ±0.1ms
Speed: Measurement range: 20.00m/s Speed: Resolution: 0.01m/s
Error: Within 0-2m/s ±0.1m/s±1 words
Above 2m/s ±0.2m/s±1 words
Travel:
