Quick Details
-
Model Number:
-
SQ3M
-
Rated Current:
-
125-225A
-
Type:
-
ATS Controller Automatic Transfer Switch
-
Certificates:
-
IEC, CCC, CE
-
Pole:
-
3P,4P
-
Rated current:
-
125-225A
-
Operation:
-
Manual and Auto, or Manual
-
MCB to use:
-
MCB, MCCB
-
Connection:
-
Terminal type, stable working status
-
Frequency:
-
50Hz/60Hz
-
Web:
-
www.chinasuntree.com/index.html
-
Max. Voltage:
-
400V
Quick Details
-
Number of Pole:
-
3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xinchi/OEM
-
Model Number:
-
SQ3M
-
Rated Current:
-
125-225A
-
Type:
-
ATS Controller Automatic Transfer Switch
-
Certificates:
-
IEC, CCC, CE
-
Pole:
-
3P,4P
-
Rated current:
-
125-225A
-
Operation:
-
Manual and Auto, or Manual
-
MCB to use:
-
MCB, MCCB
-
Connection:
-
Terminal type, stable working status
-
Frequency:
-
50Hz/60Hz
-
Web:
-
www.chinasuntree.com/index.html
-
Max. Voltage:
-
400V
Product Description

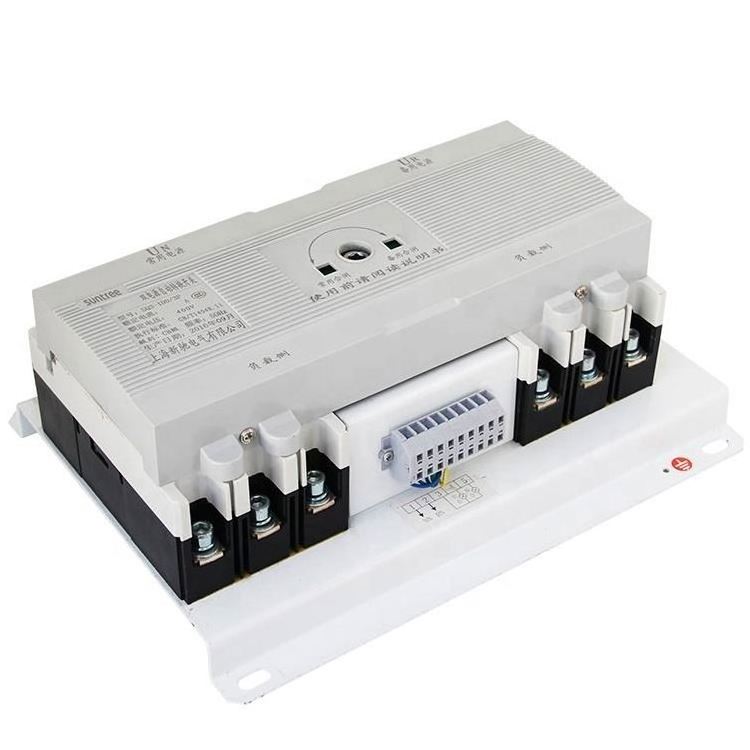

SQ3M
series automatic transfer switch is used for the two-circuit power system of AC 50 Hz and rated voltage up to and including
690V. It is able to actuate the automatic transfer between the normal power and reserve power, requiring no manual operation. This
switch conforms to the clauses stipulated in the GB/T14048.11 Automatic transfer switching equipment. It is operating mechanism
has reliable electric and mechanical interlock to prevent the normal power and reserve power being switched on at the same time.
690V. It is able to actuate the automatic transfer between the normal power and reserve power, requiring no manual operation. This
switch conforms to the clauses stipulated in the GB/T14048.11 Automatic transfer switching equipment. It is operating mechanism
has reliable electric and mechanical interlock to prevent the normal power and reserve power being switched on at the same time.
Specification
|
S3QM Series
|
|
|
|
|
|
|
||||||
|
Type
|
16A-100A
|
125A-225A
|
250A-400A
|
400A-630A
|
630A-800A
|
800A-1000A
|
||||||
|
Pole
|
3p/4p
|
|
|
|
|
|
||||||
|
Specification current Ie(A)
|
16/20/25/32/40/
50/63/80/100 |
125/160/
200/225 |
250/300
/400 |
400/500
/630 |
630/700
/800 |
800/1000
|
||||||
|
Rated operating voltage, Ue (V)
|
AC380V
|
|
|
|
|
|
||||||
|
Rated insulating voltage Ui (V)
|
AC 690V
|
|
|
|
|
|
||||||
|
Rated impulse withstand voltage (KV)
|
6KV
|
|
|
|
|
|
||||||
|
Rated short circuit making capacity
|
31KA
|
48KA
|
77KA
|
77KA
|
100KA
|
110KA
|
||||||
|
Rated short circuit breaking capacity
|
18KA
|
22KA
|
35KA
|
35KA
|
50KA
|
60KA
|
||||||
|
Service life
|
5000 times
|
|
|
|
|
|
||||||
|
Electric equipment grade
|
CB Class
|
|
|
|
|
|
||||||
|
controller
|
Type A(basic type)
|
|
|
|
|
|
||||||
|
Rated control supply voltage,Us(V)
|
230V 50Hz
|
|
|
|
|
|
||||||
|
Operating transfer time
|
≤3s
|
|
|
|
|
|
||||||
