Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
Gaodetec
-
Model Number:
-
BW Series
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
-
-
Outlet Size:
-
-
-
Power:
-
15kw
-
motor:
-
electric, diesel, hydraulic
-
Type:
-
Mud Pump
-
Driving force:
-
electric engine, diesel engine or hydraulic motor
-
Certification:
-
ISO9001 and CE
-
Color:
-
Customers' Requirement
-
MOQ:
-
1 Set
-
Application scope:
-
transfer water, mud, and other flushing fluids
-
Advantage:
-
Energy Efficient
-
Standard or Nonstandard:
-
Standanrd
Quick Details
-
Application:
-
Automotive Industry, Industrial Boilers, Mining industry
-
Pressure:
-
Other
-
Voltage:
-
-, customized
-
Warranty:
-
1year
-
Brand Name:
-
Gaodetec
-
Model Number:
-
BW Series
-
Place of Origin:
-
Henan, China
-
Horsepower:
-
-
-
Outlet Size:
-
-
-
Power:
-
15kw
-
motor:
-
electric, diesel, hydraulic
-
Type:
-
Mud Pump
-
Driving force:
-
electric engine, diesel engine or hydraulic motor
-
Certification:
-
ISO9001 and CE
-
Color:
-
Customers' Requirement
-
MOQ:
-
1 Set
-
Application scope:
-
transfer water, mud, and other flushing fluids
-
Advantage:
-
Energy Efficient
-
Standard or Nonstandard:
-
Standanrd
Products Description

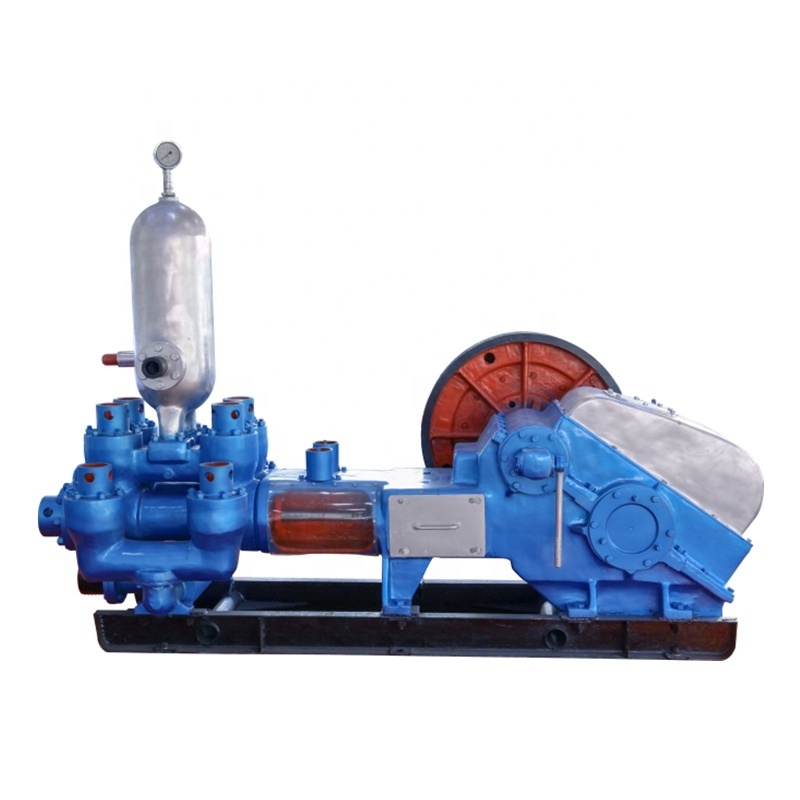

Description of BW Series Mud Pump
BW Series mud pump is one of the principal equipment for drilling. It delivers enough volume circulating mud water of desired characteristics under pressure into the well to bring the rock clastic up to the ground, cool the drill bit lubricate the drill tool, and protect the wall of the well.
BW Series mud pumps can be driven by an
electric motor
,
diesel engine
,
or
hydraulic motor
according to the requirement of the customer in the order. If you need, we can also equip wheels.
Electric engine
:
Hydraulic motor driven
:
Product Paramenters
Hot selling product parameters
|
Type
|
BW150 Horizontal Three Cylinder Reciprocating Single Acting Piston Pump
|
|
|
|
|
|
|
|
||||||||
|
Stroke(mm)
|
70
|
|
|
|
|
|
|
|
||||||||
|
Cylinder diameter(mm)
|
70
|
|
|
|
|
|
|
|
||||||||
|
Pump Speed(times/min)
|
57
|
86
|
130
|
222
|
47
|
71
|
107
|
183
|
||||||||
|
Flow(L/min)
|
38
|
58
|
90
|
150
|
32
|
47
|
42
|
125
|
||||||||
|
Pressure(Mpa)
|
7
|
4.8
|
3.2
|
1.8
|
7
|
6
|
4
|
2.3
|
||||||||
|
Outlet pipe diameter(mm)
|
32
|
|
|
|
|
|
|
|
||||||||
|
Inlet pipe diameter(mm)
|
51
|
|
|
|
|
|
|
|
||||||||
|
Power(Kw)
|
7.5
|
|
|
|
|
|
|
|
||||||||
|
Weight(kg)
|
630 (Diesel power)
560 (Electric power)
|
|
|
|
|
|
|
|
||||||||
|
Overall dimensions(mm)
|
1925*795*1150 (Diesel power)
1840*795*995 (Electric power)
|
|
|
|
|
|
|
|
||||||||
|
Pumps equipped with electric, diesel, or hydraulic motors according to customers' requirements
|
|
|
|
|
|
|
|
|
||||||||
|
Type
|
BW250 Horizontal Triplex Reciprocating Acting piston pump
|
|
|
|
|
|
|
|
||||||||
|
Stroke(mm)
|
100
|
|
|
|
|
|
|
|
||||||||
|
Cylinder diameter(mm)
|
80
|
|
|
|
65
|
|
|
|
||||||||
|
Pump Speed(times/min)
|
200
|
116
|
72
|
42
|
200
|
116
|
72
|
42
|
||||||||
|
Flow(L/min)
|
250
|
145
|
90
|
52
|
166
|
96
|
60
|
35
|
||||||||
|
Pressure(Mpa)
|
2.5
|
4.5
|
6
|
6
|
4
|
6
|
7
|
7
|
||||||||
|
Outlet pipe diameter(mm)
|
51
|
|
|
|
|
|
|
|
||||||||
|
Inlet pipe diameter(mm)
|
76
|
|
|
|
|
|
|
|
||||||||
|
Power(Kw)
|
15
|
|
|
|
|
|
|
|
||||||||
|
Weight(kg)
|
650
|
|
|
|
|
|
|
|
||||||||
|
Overall dimensions(mm)
|
1560*995*650
|
|
|
|
|
|
|
|
||||||||
|
Pumps equipped with electric, diesel, or hydraulic motors according to customers' requirements
|
|
|
|
|
|
|
|
|
||||||||
|
Type
|
BW850/2 Horizontal double cylinder reciprocating double action piston pump
|
|
|
|
|
|
|
|
||||||||
|
Stroke(mm)
|
180
|
|
|
|
|
|
|
|
||||||||
|
Cylinder diameter(mm)
|
150
|
|
|
|
|
|
|
|
||||||||
|
Pump Speed(times/min)
|
82
|
86
|
130
|
222
|
58
|
71
|
107
|
183
|
||||||||
|
Flow(L/min)
|
850
|
58
|
90
|
150
|
600
|
47
|
42
|
125
|
||||||||
|
Pressure(Mpa)
|
2.0
|
4.8
|
3.2
|
1.8
|
3.0
|
6
|
4
|
2.3
|
||||||||
|
Outlet pipe diameter(mm)
|
64
|
|
|
|
|
|
|
|
||||||||
|
Inlet pipe diameter(mm)
|
127
|
|
|
|
|
|
|
|
||||||||
|
Power(Kw)
|
37
|
|
|
|
|
|
|
|
||||||||
|
Weight(kg)
|
1500
|
|
|
|
|
|
|
|
||||||||
|
Overall dimensions(mm)
|
2000*1030*1400
|
|
|
|
|
|
|
|
||||||||
|
Pumps equipped with electric, diesel, or hydraulic motors according to customers' requirements
|
|
|
|
|
|
|
|
|
||||||||
|
Type
|
BW850/5 Horizontal double cylinder reciprocating double action piston pump
|
|
|
|
|
|
|
|
||||||||
|
Stroke(mm)
|
260
|
|
|
|
|
|
|
|
||||||||
|
Pump Speed(times/min)
|
66
|
|
|
|
|
|
|
|
||||||||
|
Cylinder diameter(mm)
|
140
|
|
|
130
|
|
|
95
|
|
||||||||
|
Flow(L/min)
|
850
|
|
|
600
|
|
|
350
|
|
||||||||
|
Pressure(Mpa)
|
5
|
|
|
6
|
|
|
8
|
|
||||||||
|
Outlet pipe diameter(mm)
|
64
|
|
|
|
|
|
|
|
||||||||
|
Inlet pipe diameter(mm)
|
152
|
|
|
|
|
|
|
|
||||||||
|
Power(Kw)
|
90
|
|
|
|
|
|
|
|
||||||||
|
Weight(kg)
|
3100
|
|
|
|
|
|
|
|
||||||||
|
Overall dimensions(mm)
|
3018*1120*2050
|
|
|
|
|
|
|
|
||||||||
|
Pumps equipped with electric, diesel, or hydraulic motors according to customers' requirements
|
|
|
|
|
|
|
|
|
||||||||
Application
Application of BW series mud pump
BW series mud pump is widely used to transfer water, mud, and other flushing fluids when drilling in water well, oil and gas well areas, such as mining, drilling, coal, railway, highway, water conservancy, and hydropower, and bridges. It can be also used for high-rise buildings, and foundation reinforcement works.
Product Display
Packaging&Shipping
In order to protect our mud pump, we normally adopt a plywood box package, the customized package is also provided. For more details, please contact us freely.
