Quick Details
-
Dimensions(L*W*H):
-
3.0*1.3*1.2m
-
Weight:
-
250 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Hydrographic Hydro Dipping tank
-
Gross Power:
-
400W
-
Pump:
-
Stainless Stell Pump
-
working voltage:
-
single phase,220v,50HZ
-
Package:
-
plywood case
-
machine size:
-
2.4x1.2x0.8m
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Canada
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CAMEL
-
Voltage:
-
220V, Single Phase,
-
Dimensions(L*W*H):
-
3.0*1.3*1.2m
-
Weight:
-
250 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Hydrographic Hydro Dipping tank
-
Gross Power:
-
400W
-
Pump:
-
Stainless Stell Pump
-
working voltage:
-
single phase,220v,50HZ
-
Package:
-
plywood case
-
machine size:
-
2.4x1.2x0.8m
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Canada

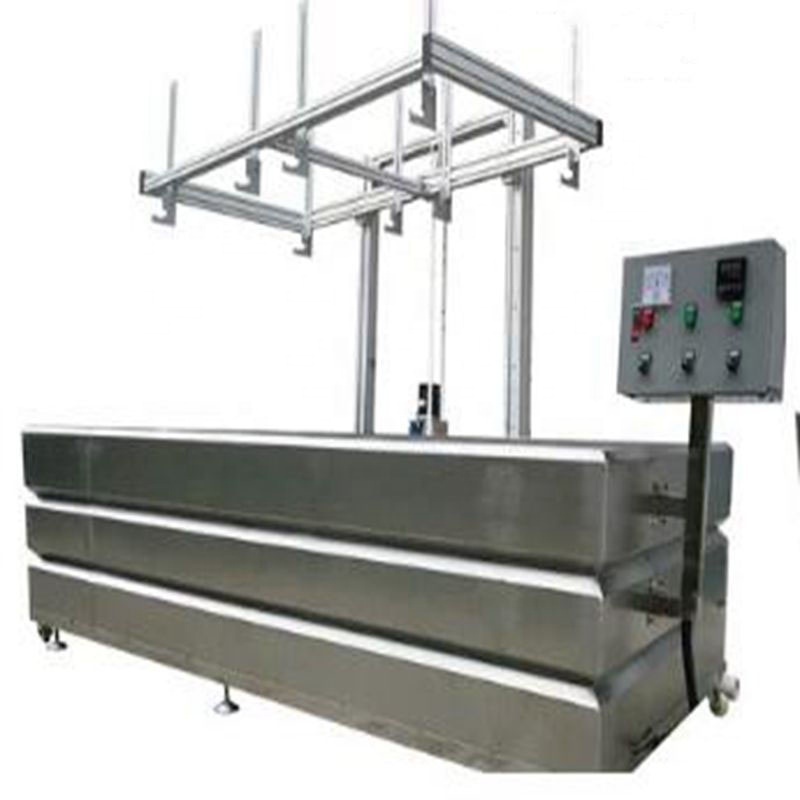

CA-1230 Semi Automatic Hydrographic Hydro Dipping tank/Water Transfer Printing Washing Machine
Feature: Hydrographic printing tank
water transfer printing tank
3d cubic printing machine
hydro dipping machine
|
Overall Dimensions |
L: 300CM X W: 120CM X H: 100CM L: 118.1 Inch X W: 47.2 Inch X H: 39.37 Inch |
|
|
Processing tank dimensions
|
L: 260CM X W: 100CM X H: 85CM L: 102.3 Inch X W: 39.3 Inch X H: 33.4 Inch |
|
|
Material |
Stainless Steel |
T=2.5mm+-0.2mm |
|
Main Components |
Heating Elements |
3 Sets, 220V, Single Phase, 50 HZ, 12000W |
|
Water Recirculation System |
Stainless Pump, 220V, Single Phase, 50 HZ, 750W |
|
|
Control Panel |
|
|
|
Water Capacity |
2.5 Ton |
|
|
Package |
Plywood Case |
|
|
Net WT |
450 KGS |
|
|
Gross WT |
500 KGS |
|
|
Package Size |
L: 310CM X W: 130CM X H: 120CM L: 122.0 Inch X W:51.1 Inch X H: 120CM |
Other materials
1 .Hydro films: more than 4000 designs available
2 . Activator A: 18usd/liter
3 . Activator B: 15usd/liter
4 . Speed shapes: 1usd/pc minimum 50pcs, white/black color available
5 . Printer: A3+ printer(maximum print width 480mm)+600ml inks:1100usd/set
6 . Printable blank hydro film: 1.27*250m/roll, 3.2usd/sqm; A3 and A4 available
Other materials about water transfer printing
1.Hydro films: more than 4000 designs available
2.Activator A:
3.Activator B:
4.Speed shapes: minimum 50pcs, white/black color available
5.Printer: A3+ printer(maximum print width 480mm)+600ml inks
6.Printable blank hydro film: 1.27*250m/roll; A3 and A4 available
Payment Term:
DDP, DDU, CIF, FOB, EXW
Payment Way:
T/T Bank Transfer, Paypal, West Union, Moneygram
