Quick Details
-
Brand Name:
-
HLT
-
Model Number:
-
ID3.2-57mm
-
Size:
-
4-56mm
-
Shape:
-
round
-
Steel grade:
-
300series
-
Thickness of flexible conduit:
-
0.2-0.3mm
-
Coating:
-
clear/grey/white pvc coating
-
Packing of flexible conduit:
-
standard seaworthy package
-
Standard:
-
ASTM, AISI, JIS
-
Application of flexible conduit:
-
Exhaust system, Waterproof, Fire Resistance
-
steel grade:
-
SS304/304L/316L/321/galvanized steel
-
Certification::
-
ISO
Quick Details
-
Type:
-
Flexible
-
Material:
-
stainless steel
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HLT
-
Model Number:
-
ID3.2-57mm
-
Size:
-
4-56mm
-
Shape:
-
round
-
Steel grade:
-
300series
-
Thickness of flexible conduit:
-
0.2-0.3mm
-
Coating:
-
clear/grey/white pvc coating
-
Packing of flexible conduit:
-
standard seaworthy package
-
Standard:
-
ASTM, AISI, JIS
-
Application of flexible conduit:
-
Exhaust system, Waterproof, Fire Resistance
-
steel grade:
-
SS304/304L/316L/321/galvanized steel
-
Certification::
-
ISO

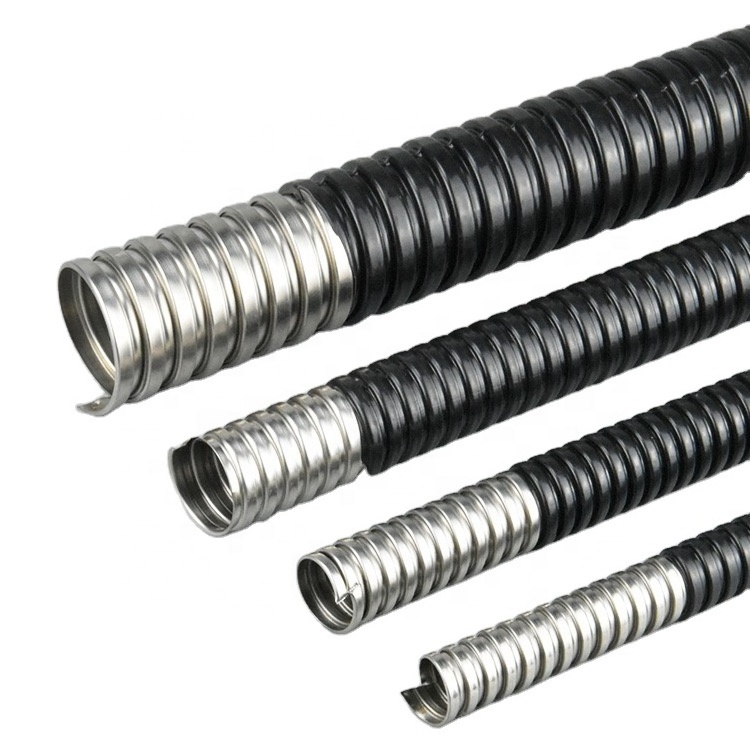

PVC Flexible Interlock/Square lock Cable Conduit Flexible Metal Hose
* Stainless Steel Flexible Conduit Size range: DN4-50mm
* Material: stainless steel and galvanized steel
* Type of hose: interlock and square lock
*
Stainless Steel Flexible Conduit
Temperature range: -40 to 120°C
*
Coating Color: Black, grey, clear, or customized
* Stainless Steel Flexible Conduit Application: wire/cable protection
|
No.
|
Size
|
Inner diameter
|
Outer diameter
|
PVC coated OD
|
Package
|
|
|
(inch)
|
(mm)
|
(mm)
|
(mm)
|
(M)
|
|
W030050S1F1
|
|
3
|
5
|
6
|
100
|
|
W040060S1F1
|
|
4
|
6
|
7
|
100
|
|
W050070S1F1
|
|
5
|
7
|
7.6
|
100
|
|
W060080S1F1
|
|
6
|
8
|
9.2
|
100
|
|
W070090S1F1
|
|
7
|
9
|
9.8
|
100
|
|
W080010S1F1
|
|
8
|
10
|
11
|
100
|
|
W090011S1F1
|
|
9
|
11
|
12
|
100
|
|
W010012S1F1
|
|
10
|
12
|
13
|
100
|
|
W095125S1F1
|
1/4
|
9.5
|
12.5
|
13.2
|
50
|
|
W125157S1F1
|
3/8
|
12.5
|
15.7
|
16.6
|
50
|
|
W030060S1F1
|
1/2
|
16.1
|
19.5
|
20.5
|
50
|
|
W030060S1F1
|
|
19.1
|
22.2
|
23
|
50
|
|
W208255S1F1
|
3/4
|
20.8
|
24.3
|
25.5
|
40
|
|
W220268S1F1
|
|
22
|
25.6
|
26.8
|
40
|
|
W264316S1F1
|
1
|
26.4
|
30
|
31.6
|
30
|
|
W345396S1F1
|
1 1/4
|
34.5
|
38
|
39.6
|
30
|
|
W400468S1F1
|
1 1/2
|
40
|
45
|
46.8
|
20
|
|
W510586S1F2
|
2
|
51
|
57
|
58.6
|
10
|
All sizes of Waterproof interlock flexible metal conduit with PVC coating
Different colors of pvc coating
Packing details: Standard seaworthy package for Liquid tight stainless steel flexible cable conduit
Delivery details: 10 days after your advance payment
Wuxi Longterm Machinery Technologies Co., Ltd
We are lead manufacturer of flex-related products in China. We make all kinds of flex-related products, such as flexible metal conduit, flexible metal hose, expansion joints, braidings, hose fittings, and related machines,such as elastomer hose forming machine, hydraulic forming machine,wire braiding machine, rewinding machine,bellow forming machine, etc..
Our flexible metal conduit is offered in a variety of different alloys that meet or exceed even the most stringent service conditions that industry demands.
Manuafacturing Site
Production site Pvc coating line warehouse
We need to know following information to quote you correct items:
1. ID of hose
2. Material of hose, ss304,321 or 316L?
3. Shape of hose: Round or polygonal?
4. Length
5. Quantity
