- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Road Traffic Safety
-
Visible distance:
-
Above 300 meters
-
Waterproof:
-
IP54
-
Size:
-
76*60*17cm
-
Working Voltage:
-
DC12/24V AC220V can be choose
-
Weight:
-
16kg
-
Material:
-
3M Diamond Grade Reflective Film
-
Detection distance::
-
Standard 200Meters)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NO
-
Product name:
-
Vehicle Speed Feedback Sign with Speed Radar Detector Built in
-
Application:
-
Road Traffic Safety
-
Visible distance:
-
Above 300 meters
-
Waterproof:
-
IP54
-
Size:
-
76*60*17cm
-
Working Voltage:
-
DC12/24V AC220V can be choose
-
Weight:
-
16kg
-
Material:
-
3M Diamond Grade Reflective Film
-
Detection distance::
-
Standard 200Meters)

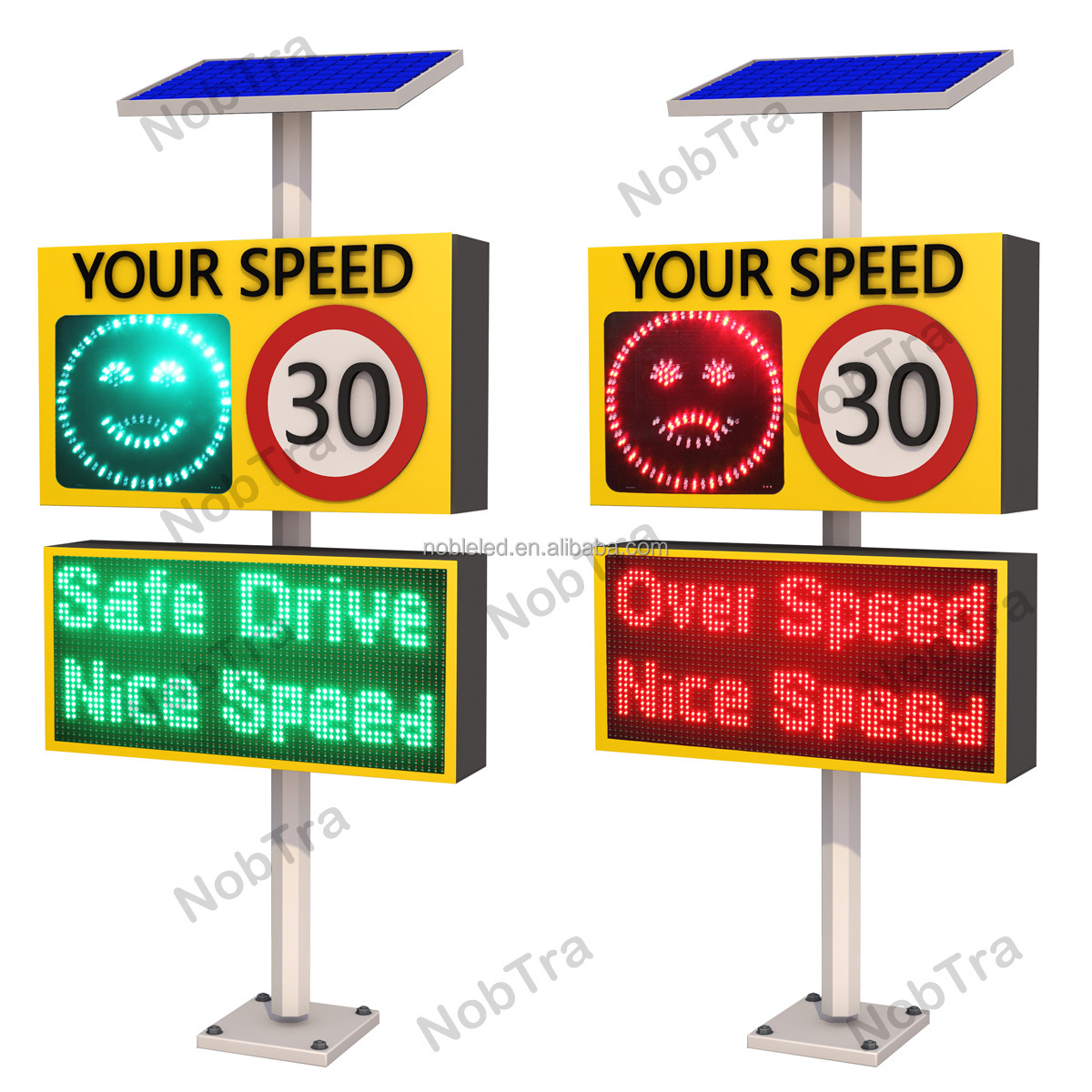

Beautiful Design High Waterproof Radar Speed Limit Sign with Face Light for Road Safety
Product Photos
Product Description
The LPR radar Speed System uses the principle of radar speed measurement, combined with LED technology, to display the speed of the vehicle to the driver in time. Generally speaking, the speed feedback sign consists of three parts: 1) Speed limit sign; 2)Radar speed measuring device; 3) Electronic display board; The display board will show the speed of the vehicle, and if there are multiple vehicles driving in the area at the same time, the electronic display board will show the speed of the fastest vehicle among these vehicles.
The vehicle speed feedback sign is a device equipped with a speed limit sign and can display the speed of passing vehicles in the detection area on the LED screen in real-time. The vehicle speed feedback sign is widely used in the subsequent radar speed measurement for traffic speed measurement.
The LPR radar speed system displays the speed of the vehicle on the LED screen through radar speed measurement. The advanced speed feedback sign can also display the green speed value for average speed, and the read speed value for Overspeed to warn the driver. Drivers pay attention to controlling their speed. Surveys have shown that vehicle feedback signs can be effective in reducing vehicle speed. The power supply mode of the vehicle speed feedback sign can be a 220V mains power supply, or it can be combined with a solar panel and battery power supply. In other remote speed-limited sections such as highways where it is inconvenient to draw electricity, the solar power supply is efficient.
In addition, the speed feedback sign can also be equipped with a speeding camera, and the vehicle can take a photo of the speeding vehicle when it is speeding, and send it back to the control center.
The LPR radar speed system displays the speed of the vehicle on the LED screen through radar speed measurement. The advanced speed feedback sign can also display the green speed value for average speed, and the read speed value for Overspeed to warn the driver. Drivers pay attention to controlling their speed. Surveys have shown that vehicle feedback signs can be effective in reducing vehicle speed. The power supply mode of the vehicle speed feedback sign can be a 220V mains power supply, or it can be combined with a solar panel and battery power supply. In other remote speed-limited sections such as highways where it is inconvenient to draw electricity, the solar power supply is efficient.
In addition, the speed feedback sign can also be equipped with a speeding camera, and the vehicle can take a photo of the speeding vehicle when it is speeding, and send it back to the control center.
Specification
|
Type:
|
YS-FL30
|
|
Working temperature:
|
-40℃~+60℃
|
|
Overspeed record:
|
Need work with LPR camera
|
|
Quality warranty:
|
2 years
|
|
Application:
|
Used for the intersection, highway or school entrance
|
|
Working voltage:
|
Solar powered DC12/24V AC220V can be chose
|
|
Modulation mode:
|
CW detection of moving vehicles,detection distance≥150 meters
|
|
Measuring range:
|
1KM/H~250KM/H
|
|
Speed measurement error:
|
<±1KM/H
|
|
Parameter settings:
|
Phone APP
|
|
Multi-device linkage
|
433 wireless communication
|
|
Waterproof:
|
IP54
|
|
Installation method:
|
Hoop install
|
Product Advantages
1.
The NobTra radar speed measurement system can use the mobile phone APP to set parameters within 10 meters, and can support Apple,Android and Hongmeng operating systems. Simple, convenient and easy to set up.
2. The NobTra radar speed system can use the mobile phone APP to adjust the sensitivity,there are ten levels of sensitivity.Where 1 is the highest sensitivity and 10 is the lowest sensitivity.The sensitivity can be adjusted according to the environment in which the product is used,meet the needs of various projects.
2. The NobTra radar speed system can use the mobile phone APP to adjust the sensitivity,there are ten levels of sensitivity.Where 1 is the highest sensitivity and 10 is the lowest sensitivity.The sensitivity can be adjusted according to the environment in which the product is used,meet the needs of various projects.
3.
The Nobtra radar speed system can adjust the brightness using the mobile APP,and there are ten levels of brightness.1 is the darkest and 10 is the brightest.The brightness can be adjusted according to the environment in which the product is used,which is flexible and adaptable
4.
,Imported raw materials（including Taiwan-made) high-brightness light-emitting diodes(LEDs),higher brightness and longer life, the lamp beads are eye-catching and distinct in color, and have good visibility both during the day and at night. LED modules and LED lamp beads style are optional.
5.
The Nobtra radar speed system is made of high-quality cold-rolled steel,which is 2mm thick galvanized cold-rolled open-rolled board,with overall baking paint inside and outside, beautiful appearance design, impact resistance,anti-aging,corrosion resistance,waterproof and dust-proof.
6.
The NobTra radar speed measurement system adopts professional traffic radar imported from Germany,with high-precision vehicle speed real-time display function,accurate and reliable speed measurement results,strong anti-interference ability and high precision.Divided into built-in models and external models,you can choose the style you like
7.
All-day snapshot function,the system has a large capacity, can store 20,000 illegal speeding records,and supports mobile APP to view the snapshot records.The license plate captured by the camera will display the license plate number on the display
8.
The LPR camera matching the NobTra radar speed measurement system has maximum resolution of up to 2 million pixels, outputs real-time images, supports SD card, up to 256G, and is suitable for day and night. The multi-layer optical lens makes the picture quality clear and restores the scene realistically. The reserved 4G port can be connected to the control center later.The LPR camera perfectly recognizes many countries and regions: the recognition rate can reach 99%.
9.
The speed limit panel of the NobTra radar speed limit card supports customization,which are 30,40,50,60....or other customized values.
10.
NobTra independently develops screen display control, supports multiple protocols, and has rich interfaces to meet customer customization needs. Flexible working mode, multi-task work, suitable for different application fields.
11.
The NobTra radar speed limit sign is sealed and waterproof, and can adapt to all kinds of bad weather. The use of silicone three-proof paint, evenly brushed on one side of the PCB circuit,can effectively prevent moisture,salt spray, anti-static, anti-mildew, and other characteristics.
12.
The NobTra radar speed measurement sign display model can support custom warning characters and languages, but the warning characters are required to be short and too long to be displayed.
Packing & Delivery
1 Carton /1 Set
Carton dimension (cm): 76*60*17cm
G.W/Carton: 17kg
