Quick Details
-
Power:
-
1.5kw
-
Min. Lifting Height:
-
1.5m
-
Table Size:
-
2100*930mm
-
Overall Dimensions:
-
4CBM
-
Weight:
-
970 kg
-
Product name:
-
mobile scissor lift
-
After-sales Service Provided:
-
online support&video technical support
-
Color:
-
Blue, yellow
-
Material:
-
Steel steel
-
Voltage:
-
220v 1phase 50hz/380 3phase 50hz
-
Usage:
-
for man lift and aerial work
-
Type:
-
Hydraulic Cylinder Drive
-
Extension platform:
-
Optional (180USD)
-
Batteries:
-
Optional (250USD 2 pcs)
-
Tire:
-
inflated wheel
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BEACON
-
Power:
-
1.5kw
-
Min. Lifting Height:
-
1.5m
-
Table Size:
-
2100*930mm
-
Overall Dimensions:
-
4CBM
-
Weight:
-
970 kg
-
Product name:
-
mobile scissor lift
-
After-sales Service Provided:
-
online support&video technical support
-
Color:
-
Blue, yellow
-
Material:
-
Steel steel
-
Voltage:
-
220v 1phase 50hz/380 3phase 50hz
-
Usage:
-
for man lift and aerial work
-
Type:
-
Hydraulic Cylinder Drive
-
Extension platform:
-
Optional (180USD)
-
Batteries:
-
Optional (250USD 2 pcs)
-
Tire:
-
inflated wheel
mobile scissor lift 8m platform height MSL0.5-8 aerial platform:

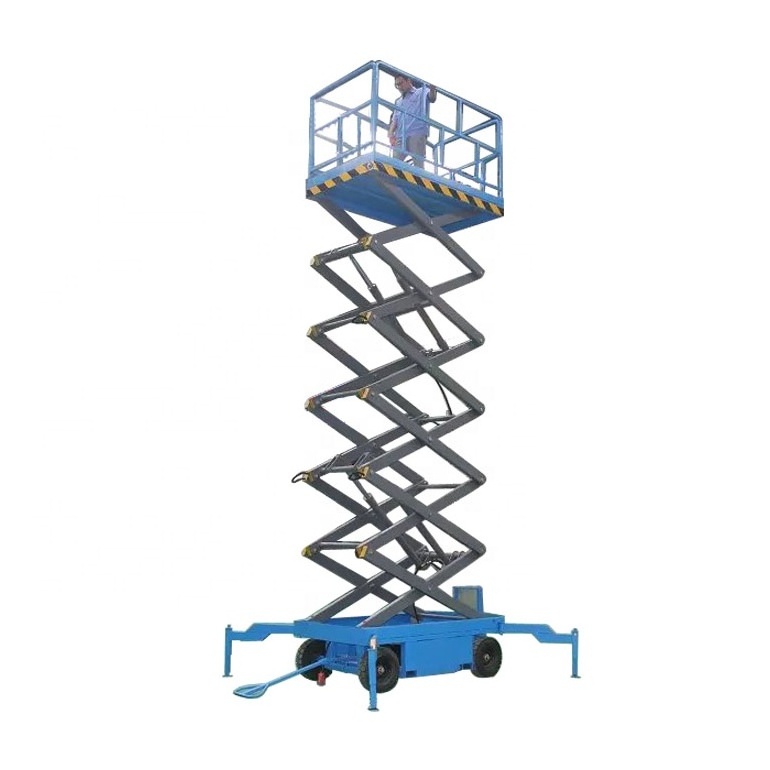

Introduction of mobile scissor lift 8m platform height MSL0.5-8 aerial platform
:
Our Mobile Scissor Lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don’t need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Product feature of mobile scissor lift 8m platform height MSL0.5-8 aerial platform:
1.The mobile scissor lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation ect.
2.An ideal equipment of safety operation.
3.It is characterized by great loading capacity, can be designed as your request.
4.Move convenient, work easy and raise & fall stable.
5.Local voltage can be customized.(110v,220v.380v,415v)
6.Lift power: AC,DC or diesel available
Safety device of mobile scissor lift 8m platform height MSL0.5-8 aerial platform:
1.Sensitive overload protection device and locking device for falling down
2.Explosion –proof valve: prevent the hydro oil pipe from cracking.
3.Overflow valve: it will prevent the pressure too high when the machine rises up.
4.Emergency decline valve: it can let the machine falls down when power is off.
5.Safety lock: the lift machine can’t work if your operation is wrong.
Specification of mobile scissor lift 8m platform height MSL0.5-8 aerial platform:
Model | Table Size (mm) | Load Capacity (kg) | Lifting Height (m) | Overall Dimension (mm) | Overall Weight (kg) |
MSL 0.5-4 | 2100*820 | 500 | 4 | 2200*950*1100 | 750 |
MSL 0.5-6 | 2100*820 | 500 | 6 | 2200*950*1200 | 850 |
MSL 0.5-7 | 2100*820 | 500 | 7 | 2200*950*1280 | 900 |
MSL 0.5-8 | 2100*900 | 500 | 8 | 2200*1060*1380 | 1050 |
MSL 0.5-9 | 2100*900 | 500 | 9 | 2200*1060*1500 | 1200 |
MSL 0.5-10 | 2100*1200 | 500 | 10 | 2200*1350*1530 | 1450 |
MSL 0.5-11 | 2100*1200 | 500 | 11 | 2200*1400*1650 | 1650 |
MSL 0.5-12 | 2550*1500 | 500 | 12 | 2720*1670*1750 | 2400 |
MSL 0.5-14 | 2550*1500 | 500 | 14 | 2800*1800*1950 | 2750 |
MSL 0.3-16 | 3070*1600 | 300 | 16 | 3250*1800*1920 | 3400 |
MSL 0.3-18 | 3070*1600 | 300 | 18 | 3250*1800*2080 | 3600 |
THE SHIPMENT COST WILL BE REQUOTE AFTER WE KNOW YOUR DESTINATION SEAPORT. MAYBE LOWER THAN THE ABOVE QUOTATION.
