- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1000 kg
-
Product name:
-
crack sealing machine
-
fuel type::
-
liquefied gas
-
Temperature control range::
-
0-220°
-
Output capacity::
-
0-12L/MIN
-
Rated voltage::
-
220V 380V
-
Product name::
-
road seam filling machine
-
Walking mode::
-
hand push
-
Heating medium::
-
320# mineral heat transfer oil
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
China
-
Brand Name:
-
sinoroader
-
Weight:
-
1000 kg
-
Product name:
-
crack sealing machine
-
fuel type::
-
liquefied gas
-
Temperature control range::
-
0-220°
-
Output capacity::
-
0-12L/MIN
-
Rated voltage::
-
220V 380V
-
Product name::
-
road seam filling machine
-
Walking mode::
-
hand push
-
Heating medium::
-
320# mineral heat transfer oil
Product Overview
|
Model
|
SD-100
|
SD-200
|
|
Size(L*W*H)
|
2000*1000*1300mmmm
|
2100*1200*1350mm
|
|
Weight
|
450kg
|
650kg
|
|
Volume
|
100L
|
200L
|
|
Heat Condition Oil Volume
|
45L
|
45L
|
|
Shaft Length
|
Standard4.5m(6moptional)
|
EL3600CX/2.8KW
|
|
Control System
|
ECC
|
ECC
|
|
Heating Source
|
Diesel Combust
|
Diesel Combust
|
|
Molten Material Time
|
45minutes
|
45minutes
|
|
Sealing Speed
|
0-25m/min
|
0-25m/min
|
|
Applicable Material
|
Asphalt, crack sealing material
|
Asphalt, crack sealing material
|
|
Ferry Way
|
Trailer Type
|
Trailer Type
|
|
Pattern of Movement
|
Hand Push
|
Hand Push
|
Product Introduction

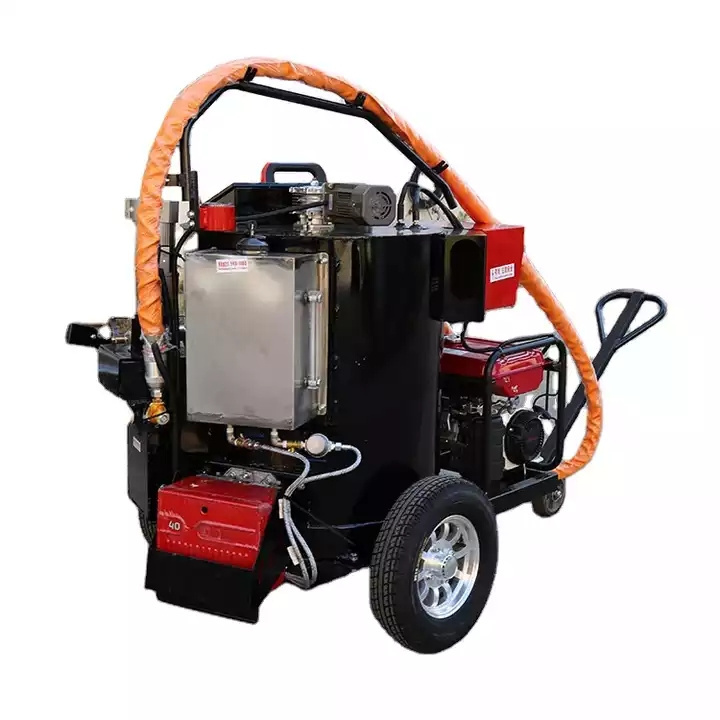

crack sealing machine ，It is used for sealing concrete and asphalt road crack.stable performance.Liquefied gas heating, practical and easy to operate;Large asphalt tank;All the working process heating,avoid blocking.
it is used for sealing concrete and asphalt road crack.
completely self-contained, meaning it is capable of heating, melting, and applying all grades of rubberized asphalt crack sealer, joint sealants, and waterproofing compounds without the need for additional equipment. Our Crack Sealing Kettles are designed for high output jobs.
Feature：
1. High heat utilization rate: the use of "preheating + melting" double structure, heat utilization rate is fully efficient.
2. Easy to operate: digital display automatic temperature control system, stable and reliable sealant quality.
3. Overhead fixed load agitator, overload automatic separation, optional multiple sewing device, to meet the simultaneous operation of many people.
4. The asphalt pump is placed in the upper part of the preheating box, which is heated by waste heat, saving time and avoiding additional energy consumption.
2. Easy to operate: digital display automatic temperature control system, stable and reliable sealant quality.
3. Overhead fixed load agitator, overload automatic separation, optional multiple sewing device, to meet the simultaneous operation of many people.
4. The asphalt pump is placed in the upper part of the preheating box, which is heated by waste heat, saving time and avoiding additional energy consumption.
.
Application Scenarios：
crack-sealing-machine Road construction site
Founded in 1997, Sinoroader has grown to become a leading provider of technological developments and has been a pioneer in its sector with its innovation departments and became the first China manufacturer of “Crack sealing machine”, “Bitumen sprayer”,“Bitumen decanter”, “Bitumen emulsion plant” ,"Asphalt plant"ect road building and maintenance machine. Sinoroader provides an unparalleled, single-source solution for all of their clients’ aggregate-based facilities. owadays,asphalt mixing plant, and road maintenance equipment produced by Sinoroader have been widely used in more than 120 countries and regions.
other hot sale product：
* Asphalt Mixing Plant:
Asphalt batch mix plant,drum mix asphalt plant,container type asphalt plant,mobile asphalt mixing plant,hot recycling asphalt mixing plant.
* Bitumen Plant:
Polymer modified bitumen plant(PMB),suitable for SBS,SBR,MAC,EVA,PE modifier;Emulsion bitumen plant,crumb rubber bitumen plant.Also have bitumen decanter/ bitumen melting machine;
FAQ
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketiing for over 20 years.
Q2. What markets do your machine export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose quantity etc. The more info. you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the machine ?
Totally acceptable as you wish.We can produce according to your requirements,the size, color, materials, logo etc.
Q5. How can I get the price of your machine ?
You can connect with us through any of the following contact information. Our personalized service person will respond you within24 hours.
Q6. What is your after-sale service?
12 month warranty.Provision with relevant technical support.Available spare parts after ordering.
Yes, we have been in special vehicle manufacturing and marketiing for over 20 years.
Q2. What markets do your machine export to?
Europe, North & South America, South-East Asia,Africa, Oceanica, Middle East countries etc.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the your purpose quantity etc. The more info. you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the machine ?
Totally acceptable as you wish.We can produce according to your requirements,the size, color, materials, logo etc.
Q5. How can I get the price of your machine ?
You can connect with us through any of the following contact information. Our personalized service person will respond you within24 hours.
Q6. What is your after-sale service?
12 month warranty.Provision with relevant technical support.Available spare parts after ordering.
Q7.
What kind terms of payment can be accepted?
T/T, L/C, Western Union is available.
