Quick Details
-
Cabinet material:
-
Mild steel
-
Cabinet color:
-
Orange/yellow/green/grey/golden
-
Speed:
-
0.9Sec-8Sec(Adjustable)
-
Package:
-
Carton box
-
Certificates:
-
CE
-
Warranty:
-
2 years
-
Application:
-
Indoor/outdoor
-
Bomm type:
-
straight, folding, fenceing boom
-
Direction:
-
Can be exchanged
-
Rated power:
-
200W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINOMATIC
-
Model Number:
-
SN-BG-1380
-
Cabinet material:
-
Mild steel
-
Cabinet color:
-
Orange/yellow/green/grey/golden
-
Speed:
-
0.9Sec-8Sec(Adjustable)
-
Package:
-
Carton box
-
Certificates:
-
CE
-
Warranty:
-
2 years
-
Application:
-
Indoor/outdoor
-
Bomm type:
-
straight, folding, fenceing boom
-
Direction:
-
Can be exchanged
-
Rated power:
-
200W
Production description

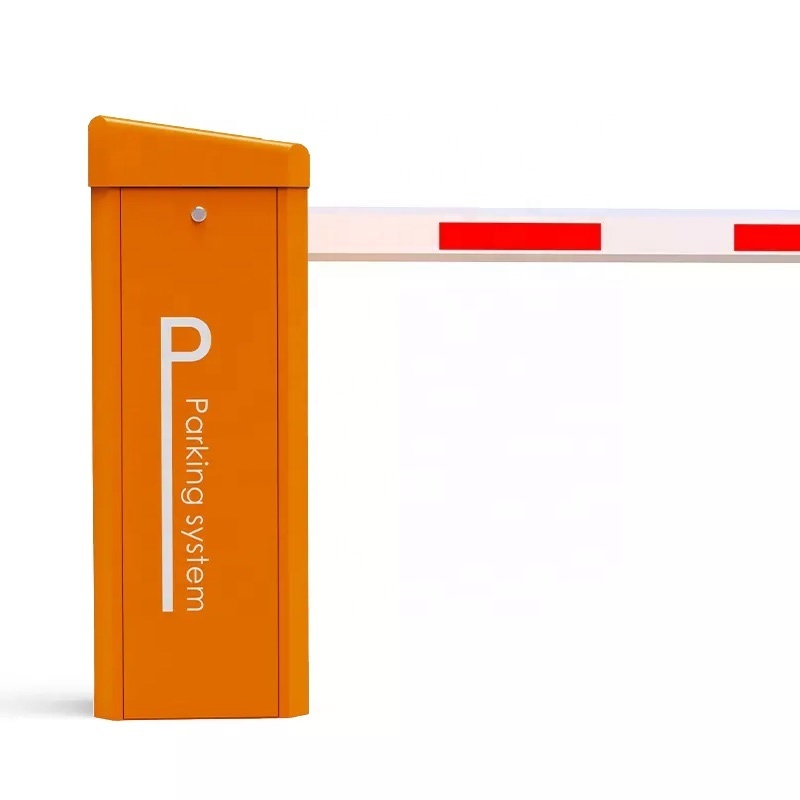

This 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology,compact structure, high precision, high consistency and standardization, and use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise, the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc., using digital signal processor (DSP) As the control core, it can realize more complex algorithms, realize network and intelligence, (IPM) internal integrated drive circuit can detect faults and display fault codes to quickly solve fault problems. The three-bar linkage design of the machine core makes rapid rise and stable fall. Using solar charging applications, it is suitable for unmanned occasions such as railway crossings, fire passages, oil stations, mine tunnels, etc., without electricity, and fully realizes automatic operation control.
Product details
Functions & Features
1. Open and close speed adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close the limit signal output
11. Counting (fleet) input RS485 communication input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto-reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms are required)
18.RS485 communication output
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close the limit signal output
11. Counting (fleet) input RS485 communication input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto-reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms are required)
18.RS485 communication output
Product Specs
|
Power supply
|
AC100V ~ AC264V, DC24V, 50Hz ~60Hz
|
|
Open/close Speed
|
0.9Sec-8Sec(Adjustable)
|
|
Rated Power
|
200W
|
|
Driving Method
|
Servo motor
|
|
Boom type
|
straight, folding, fencing boom
|
|
Working temperature
|
-30℃~+70℃
|
|
Humidity
|
≤90%
|
|
Protection grade
|
IP54
|
|
Motor No-load speed
|
3000r/min
|
|
Max boom lenght
|
6 meters
|
|
Housing material
|
2.0mm steel plate
|
|
Housing size
|
335*335*925mm
|
|
Housing color
|
Orange, yellow etc
|
|
Housing treatment
|
Outdoor metal powder electrostatic spraying
|
