- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
GM510
-
Product Name:
-
Battery powered Digital differential pressure gauge pressure manometer
-
Measuring Range:
-
10kPa
-
Accuracy:
-
±0. 3% FSO( 25℃)
-
Power supply:
-
1. 5V AAA battery* 4
-
Working conditions:
-
temperature of 0~50℃
-
Stability:
-
±0. 2%(Maximum+/-0. 5% FSO)
-
Response:
-
Typical 0.5 s
-
Linearity/hysteresis:
-
±0. 29% FSO
-
Application:
-
Widely
-
Type:
-
Gas Pressure Manometer
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
easemind
-
Model Number:
-
GM510
-
Product Name:
-
Battery powered Digital differential pressure gauge pressure manometer
-
Measuring Range:
-
10kPa
-
Accuracy:
-
±0. 3% FSO( 25℃)
-
Power supply:
-
1. 5V AAA battery* 4
-
Working conditions:
-
temperature of 0~50℃
-
Stability:
-
±0. 2%(Maximum+/-0. 5% FSO)
-
Response:
-
Typical 0.5 s
-
Linearity/hysteresis:
-
±0. 29% FSO
-
Application:
-
Widely
-
Type:
-
Gas Pressure Manometer
Product Description

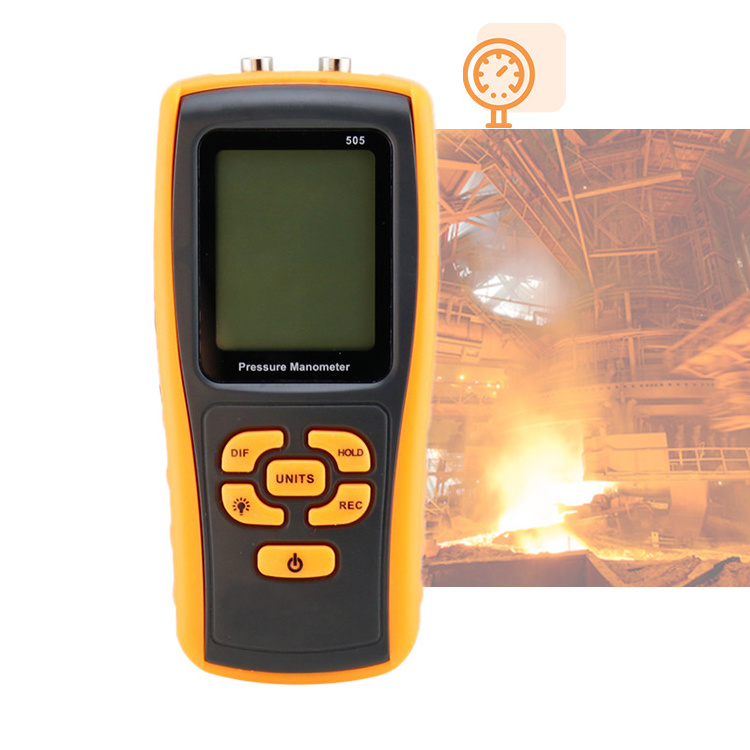

Battery powered Digital differential pressure gauge pressure manometer
There are following 11 selectable pressure units: bar、mbar、kPa、kgf/cm²、mmHg、cmH2O、Ozf/in²、psi、inHg、inH2O、ftH2O. This unit features data save and adjustment, automatic turn-off, connecting with PC to read and export the data with a USB wire.
Details Images
Specification
|
product name
|
Battery powered Digital differential pressure gauge pressure manometer
|
|
Power supply
|
1. 5V AAA battery* 4
|
|
Measuring Range
|
l 10kPa
|
|
Accuracy
|
±0. 3% FSO( 25℃)
|
|
Stability
|
±0. 2%(Maximum＋/－0. 5% FSO)
|
|
Working conditions
|
temperature of 0~50℃
|
|
Linearity/hysteresis
|
±0. 29% FSO
|
|
Response
|
Typical 0.5 s
|
|
Storage temperature
|
l - 10~60℃
|
Main features
1.Large LCD
2. Data hold
3. With differential mode and record mode
4. USB port
5. Reset and data adjustment
6. Low battery indication and automatic power off
1.Large LCD
2. Data hold
3. With differential mode and record mode
4. USB port
5. Reset and data adjustment
6. Low battery indication and automatic power off
A
pplication
- -Widely applied in measuring the pressure of fans,
--resistance/wind velocity/oven pressure/differential
--pressure of filter, and monitoring the gas content in the
--air in process of combustion.
- -Widely applied in measuring the pressure of fans,
--resistance/wind velocity/oven pressure/differential
--pressure of filter, and monitoring the gas content in the
--air in process of combustion.
Related Products
Product1：GSX8+ Differential pressure gas transmitter
GSX8 data logger
connected Differential pressure gas transmitter, which can collect data of differential pressure gas, through the setup software to set high and low alarm range, when meet the alarm value can be sent sms alarm messages to the user alarm phone via wireless mobile phone network.
GSX8 data logger connected Differential pressure gas transmitter data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power. Programmable data logging interval starts from 1 minute up to 24 hours.
GSX8 data logger is a data collector with temperature, humidity, analog, pulse and digital channels. Data send to the server
software via 4G mobile and Ethernet network，Premier Server software statistics and analysis the data, the user can login the premier client software (Windows 10、IOS and Android app）to check the live、history 、alarm data anytime and anywhere.
GSX8 data logger is a data collector with temperature, humidity, analog, pulse and digital channels. Data send to the server
software via 4G mobile and Ethernet network，Premier Server software statistics and analysis the data, the user can login the premier client software (Windows 10、IOS and Android app）to check the live、history 、alarm data anytime and anywhere.
Product2: G7-AD+ Differential pressure gas transmitter
G7-AD wireless analog sensor and Base Station connected differential pressure gas transmitter, which can collect data of
differential pressure gas, you can start monitoring sensor measurement online remotely.
Wireless sensor G7-AD transmits measurement of any industrial analog sensor with 4-20mA/0-5VDC signal to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol. Up to 64 or 96 wireless sensors are supported by one Base Station. Temperature, Humidity, Analog Sensor or Digital Alarm Input can be used in one single system.
G7-Centre App receives data from Base Station over Internet or LAN.
G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2
differential pressure gas, you can start monitoring sensor measurement online remotely.
Wireless sensor G7-AD transmits measurement of any industrial analog sensor with 4-20mA/0-5VDC signal to Base Station via wireless signal. Base Station collects all the wireless sensors readings and uploads to central server in interval via Modbus TCP protocol. Up to 64 or 96 wireless sensors are supported by one Base Station. Temperature, Humidity, Analog Sensor or Digital Alarm Input can be used in one single system.
G7-Centre App receives data from Base Station over Internet or LAN.
G7 Client App for Windows10, iOS, Android displays and stores all the incoming data in computer/tablet/smartphone for data analysis. By monitoring and understanding how measurement changes, user can be alerted by high or low level of sensor reading e.g. air pressure, water level, load cell or CO2
Packing & Delivery
Packaging Details: Carton Box
Delivery Detail: 14 days
