Quick Details
-
Filling Accuracy:
-
±≤0.02%
-
Voltage:
-
220/380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TS
-
Dimension(L*W*H):
-
460*650*730mm
-
Weight:
-
50 KG
-
Name:
-
Split tube valveless plunger ceramic pump precision filling machine
-
Power supply:
-
AC220V 50/60Hz 450W
-
Materials:
-
Plunger, Pump Chamber Sleeve (99.99% Alumina))
-
Filling accuracy:
-
±≤0.02%
-
Speed:
-
0-200RPM
-
Throughput pressure:
-
0.5MPa
-
Maximum suction lift height:
-
4mm (data measurement using water as medium)
-
Maximum output:
-
870ml/min
-
Discharge volume per revolution:
-
2.9ml/rev (single head)
-
Filling times per minute:
-
0-50times/min
-
Marketing Type:
-
New Product 2022
Quick Details
-
Machinery Capacity:
-
6000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Milk, Water, Oil
-
Filling Accuracy:
-
±≤0.02%
-
Voltage:
-
220/380v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TS
-
Dimension(L*W*H):
-
460*650*730mm
-
Weight:
-
50 KG
-
Name:
-
Split tube valveless plunger ceramic pump precision filling machine
-
Power supply:
-
AC220V 50/60Hz 450W
-
Materials:
-
Plunger, Pump Chamber Sleeve (99.99% Alumina))
-
Filling accuracy:
-
±≤0.02%
-
Speed:
-
0-200RPM
-
Throughput pressure:
-
0.5MPa
-
Maximum suction lift height:
-
4mm (data measurement using water as medium)
-
Maximum output:
-
870ml/min
-
Discharge volume per revolution:
-
2.9ml/rev (single head)
-
Filling times per minute:
-
0-50times/min
-
Marketing Type:
-
New Product 2022
Product Description

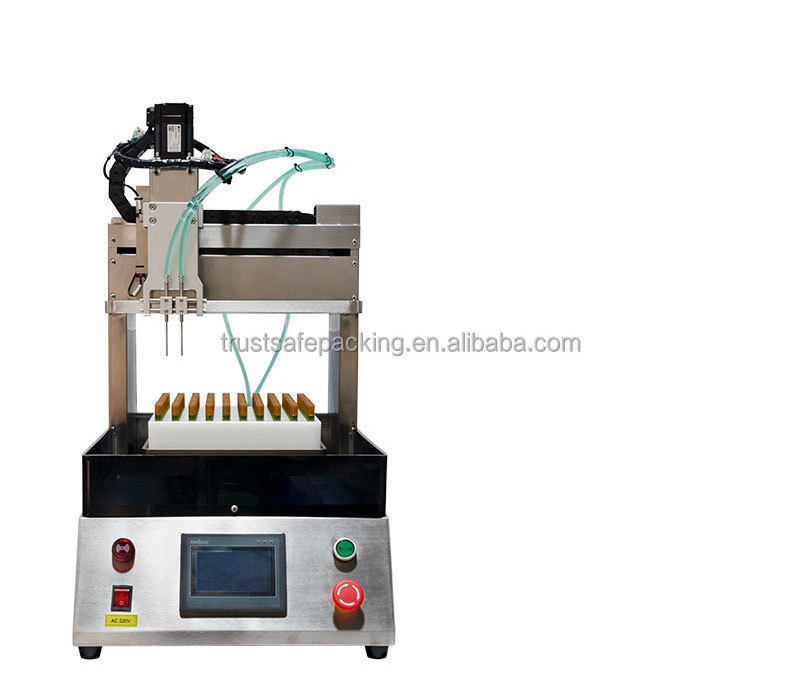

Valveless Plunger Ceramic Pump Precision Filling Machine
Product advantages:
1. Five-channel displacement type precision filling, using precision ceramic pump, filling is accurate, stable and reliable.
2. The filling volume can be adjusted independently within the filling range of the machine according to the needs, and the filling precision is high.
3. All the contact materials are made of PTFE, PU and high-purity ceramics, which have good acid and alkali resistance and corrosion resistance.
Features:
1. Highest hygiene and health standards in the biopharmaceutical, food and cosmetic industries.
2. The material is dense, the water absorption rate is as low as zero, the surface finish is extremely high, and the friction force is extremely small, so the material residue is extremely small.
3. Very lazy chemical stability, corrosion resistance, acid and alkali resistance, high temperature resistance.
4. The thermal expansion coefficient is extremely small, the piston clearance is better, and the filling accuracy is higher, which can realize online cleaning and sterilization.
5. Super-hard, wear-resistant, extremely small particle release, long service life.
Scope of application:
1. Laboratories, universities, pharmaceutical factories, hospitals, cosmetics industry.
2. Widely used in precision quantitative filling in medicine, pharmaceutical, food, chemical, cosmetic and other industries.
3. It is used for precise quantitative filling of liquids/pastes such as blood, biological test machines, injections, advanced cosmetics, essences, fungicides, etc.
4. Precise quantitative filling of various caustic alkali corrosive liquids.
Applicable to a variety of bottle types: ampoule vials, vials, vials, vials
Including: FOB reagent tube, split tube, conjoined tube, extraction tube, PCR reagent tube
Can be used for filling a variety of liquids:
Oral solution Pharmacy preservation solution Essence Oil freezing solution Nucleic acid detection reagent Vaccine reagent
Product Parameter
Name: Split tube valveless plunger ceramic pump precision filling machine
Model: X51
Power supply: AC220V 50/60Hz 450W
Materials: Plunger, Pump Chamber Sleeve (99.99% Alumina))
Filling accuracy: ±≤0.02%
Speed: 0-200RPM
Placement angle: 20°
Throughput pressure: 0.5MPa
Maximum suction lift height: 4mm (data measurement using water as medium)
Maximum output: 870ml/min
Discharge volume per revolution: 2.9ml/rev (single head)
Filling times per minute: 0-50times/min
Machine weight: 50kg
Size: 460*650*730mm
Product Details
Packing & Delivery
Export wooden case
