Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
HengBiao
-
Model Number:
-
ISG
-
Place of Origin:
-
Hebei, China
-
Structure:
-
Centrifugal pump, Single-stage Pump
-
Cable Length:
-
Depending on the type
-
Outlet Size:
-
25-500mm
-
Power:
-
0.75-355kw
-
motor:
-
Explosion Proof Or Not
-
Material:
-
Cast iron/ss304/316/316L
-
Type:
-
Centrifugal pump
-
Sealing:
-
Packing Gland/Mechanical Sealing
-
Max fluid temperature:
-
120°C
-
Usage:
-
water pump
-
Type of connection:
-
Flange, Thread, Quick Coupled
-
Certification:
-
ISO 9001
Quick Details
-
Application:
-
Commercial Buildings, Industrial Utilities, Irrigation and Agriculture
-
Pressure:
-
High Pressure
-
Voltage:
-
110V/ 220V/380V/415v/480v, 220V/380V or customized
-
Warranty:
-
1 years
-
Brand Name:
-
HengBiao
-
Model Number:
-
ISG
-
Place of Origin:
-
Hebei, China
-
Structure:
-
Centrifugal pump, Single-stage Pump
-
Cable Length:
-
Depending on the type
-
Outlet Size:
-
25-500mm
-
Power:
-
0.75-355kw
-
motor:
-
Explosion Proof Or Not
-
Material:
-
Cast iron/ss304/316/316L
-
Type:
-
Centrifugal pump
-
Sealing:
-
Packing Gland/Mechanical Sealing
-
Max fluid temperature:
-
120°C
-
Usage:
-
water pump
-
Type of connection:
-
Flange, Thread, Quick Coupled
-
Certification:
-
ISO 9001
Product Description

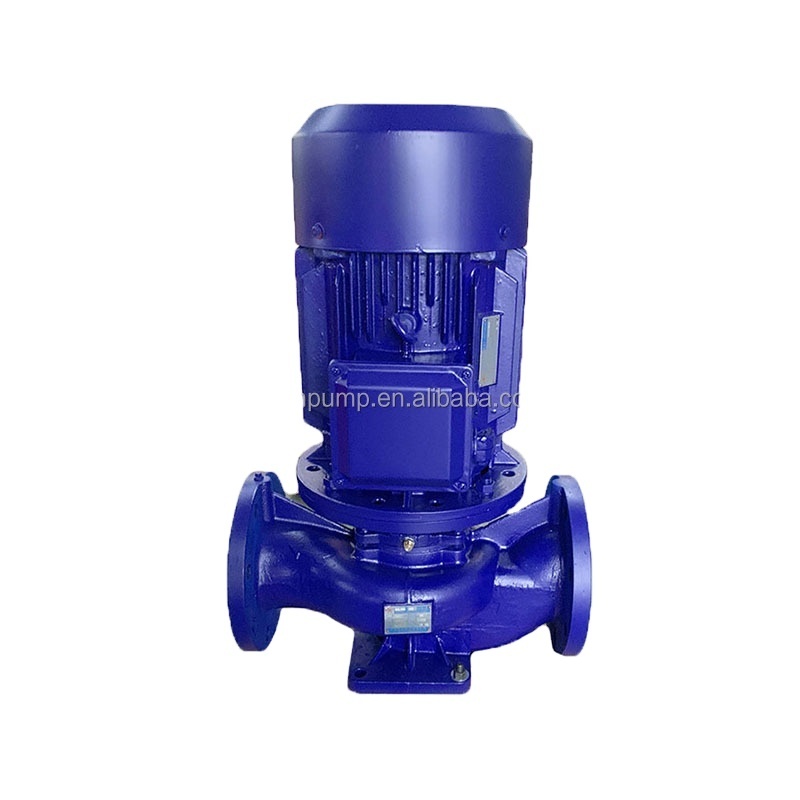

ISG Horizontal Centrifugal Sea Water Transfer Pump is a high-effective energy-saving product designed by Shenghui Pump. Stable running, low noise, high concentricity of components. Bearings of low noise are used for the motor, the impellers are of best dynamic and static balance, no vibration at running and the environment thus being improved. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump and extending the duration and ensuring the operation place clean and tidy.
The centrifugal water pump specially deliver clean water and other clean liquid with physical nature.
|
Model Number:
|
ISG
|
|
Type:
|
Centrifugal Pump
|
|
Main applications:
|
Water (oil, chemical,...)
|
|
Driver:
|
Electric motor
|
|
Power Specs:
|
220V/240V380/415V 3phase; 50hz/60hz
|
|
Max.permissible fluid temperature:
|
120℃ (212°F)
|
|
Type of connection:
|
Flange
|
|
Casing:
|
Cast iron, Stainless steel
|
|
Impeller:
|
Cast iron, Stainless steel, Bronze
|
|
Shaft seal type:
|
Mechanical seal
|
|
Maximum drive rating:
|
250KW(340HP)
|
|
Maximum caliber:
|
500mm(20inch)
|
|
Maximum discharge-side pressure:
|
1.6MPa(16bar)
|
|
Maximum head:
|
160m(524.8ft)
|
|
Flow rate range:
|
1.1-2400m3/h(4.8-10560US.GPM)
|
|
Pump type:
|
Water, Hot water type, oil type, chemical type
|
Details Images
Product Paramenters
(The above data is for reference,if you have any questions,please contact us directly)
Application
Generally used in
ISG type horizontal pipeline pump is used for transferring clear water and other liquids with physical and chemical properties similar to clear water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire-fighting pressurization, long-distance transportation, heating and ventilation refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment matching, and the service temperature is T < 80 ℃.
ISG type horizontal pipeline pump is used for transferring clear water and other liquids with physical and chemical properties similar to clear water. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire-fighting pressurization, long-distance transportation, heating and ventilation refrigeration cycle, bathroom and other cold and warm water circulation pressurization and equipment matching, and the service temperature is T < 80 ℃.
