Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Material:
-
Stainless Steel
-
Product name:
-
mushroom Push Button Switch
-
Function:
-
Push Button Switch
-
Application:
-
General-Purpose
-
Electric Life:
-
200000 Operations Minimum
-
Name:
-
19mm mushroom Push Button Switch
-
Size:
-
Mini
-
Feature:
-
switch
-
Protection class:
-
IP65
-
Product type:
-
Emergency STOP Push Button Switch
Quick Details
-
Protection Level:
-
Waterproof
-
Max. Current:
-
5A
-
Max. Voltage:
-
24V 12V 110V 220V
-
Place of Origin:
-
Zhejiang, China
-
Material:
-
Stainless Steel
-
Product name:
-
mushroom Push Button Switch
-
Function:
-
Push Button Switch
-
Application:
-
General-Purpose
-
Electric Life:
-
200000 Operations Minimum
-
Name:
-
19mm mushroom Push Button Switch
-
Size:
-
Mini
-
Feature:
-
switch
-
Protection class:
-
IP65
-
Product type:
-
Emergency STOP Push Button Switch
1.) parameter
| NAME | Emergency Stop Push Button Switch |
Product Name : Push Button Switch;
Action Type : Lacthing;
Contact Type : 1 NO + 1 NC;
Poles : DPST
Ui : 660V;Ith : 10A;Terminals Quanlity : 4 Pins
Button Diameter : 40mm/ 1.6";
Mount Hole Diameter : 22mm / 7/8";
Fit Panel Thickness(adjustable) : 6mm / 15/64"(max.)
Size : 60 x 70mm/ 2.4" x 2.8" (Max.D*H);
Cap Lamp : Red;
Material : Plastic,Metal
Color : As Picture Shown;Weight : 46g;Package Content : 1 x Push Button Switch Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A
* Features: 4 terminals, 22mm mounting hole, 1NO+1NC contact type, red mushroom emergency stop latching push button switch with yellow cap.
* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.

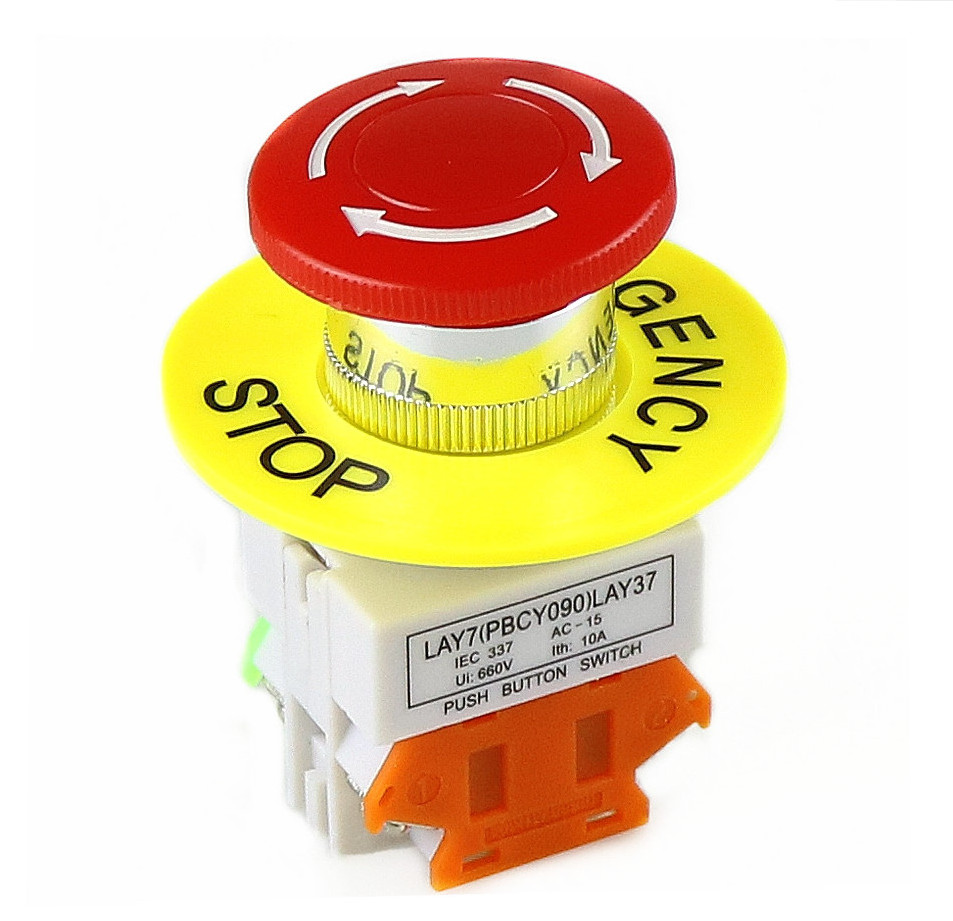

2.) product display
