Quick Details
-
Model Number:
-
ISO356-50-20
-
Brand Name:
-
YA
-

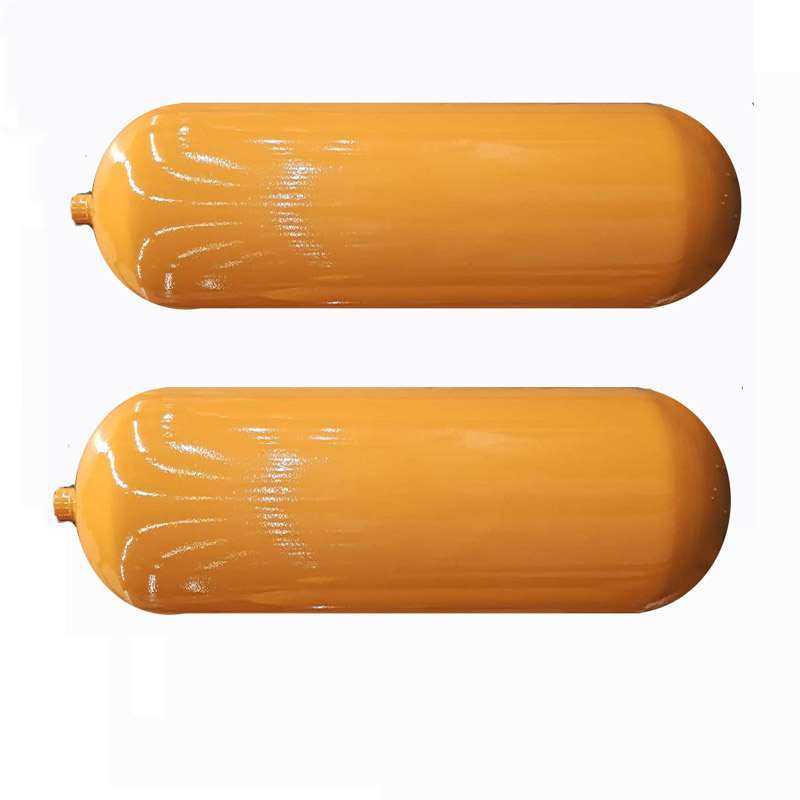

Product name:
-
CNG Cylinder
-
Working Pressure:
-
200bar Cng Cylinders
-
Water Capacity:
-
5L/10L/15L/40L/47L/50L
-
Color:
-
Customer's Requirement
-
Certification:
-
TPED/ISO9809/CE/TUV
-
Test Pressure:
-
300 Bar
-
Application:
-
Gas Storage
-
Weight:
-
8.8kg/14kg/17.7kg/48kg/55kg
-
Standard:
-
ISO 11439
Quick Details
-
Material:
-
37CrMo4
-
Use:
-
CNG
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
ISO356-50-20
-
Brand Name:
-
YA
-
Product name:
-
CNG Cylinder
-
Working Pressure:
-
200bar Cng Cylinders
-
Water Capacity:
-
5L/10L/15L/40L/47L/50L
-
Color:
-
Customer's Requirement
-
Certification:
-
TPED/ISO9809/CE/TUV
-
Test Pressure:
-
300 Bar
-
Application:
-
Gas Storage
-
Weight:
-
8.8kg/14kg/17.7kg/48kg/55kg
-
Standard:
-
ISO 11439
Industrial Welding 50L Empty Seamless Steel Argon Gas Bottle
|
40L Oxygen Gas Cylinder | |
| Cylinder Standard | ISO11439 | |
| Outside diametor | 356mm | |
| Water capacity | 50L | |
| Height(without valve) | 845mm | |
| Weight(without valve/cap) | 67Kg | |
| Service pressure | 200Bar | |
| Test pressure | 300Bar | |
| Design wall thickness | 7.7mm | |
| material | 34CrMo4 | |
|
IS11439 Standard Gas Cylinders |
||||||||
| Type |
Outside Diameter
(mm) |
Water Capacity
(L) |
Height
(Without Valve) |
Weight
(kg) |
Service Pressure
(Bar) |
Test
Pressure (Bar) |
Design Wall Thickness
(mm) |
Material |
| ISO356-50-20 | 356 | 50 | 735 | 61 | 200 | 300 | 7.7 | 34CrMo4 |
| ISO356-55-20 | 356 | 55 | 790 | 65 | 7.7 | |||
| ISO356-60-20 | 356 | 60 | 845 | 69 | 7.7 | |||
| ISO356-65-20 | 356 | 65 | 900 | 73 | 7.7 | |||
| ISO356-70-20 | 356 | 70 | 955 | 77 | 7.7 | |||
| ISO356-75-20 | 356 | 75 | 1010 | 81 | 7.7 | |||
| ISO356-80-20 | 356 | 80 | 1065 | 85 | 7.7 | |||
| ISO356-85-20 | 356 | 85 | 1120 | 89 | 7.7 | |||
| ISO356-90-20 | 356 | 90 | 1175 | 93 | 7.7 | |||
| ISO356-95-20 | 356 | 95 | 1230 | 97 | 200 | 300 | 7.7 | |
| ISO356-100-20 | 356 | 100 | 1285 | 101 | 200 | 300 | 7.7 | |
| ISO356-105-20 | 356 | 105 | 1340 | 105 | 200 | 300 | 7.7 | |
All kinds of o xygen c ylinders have ISO TPED TESO TUV standard and other authority quality certification, the bottle body adopts the most advanced 34CrMo4 steel seamless manufacturing process, high strength and durable. The valve adopts QF-2 series of manual detachable national standard strip steel printing, GB/8 standard air outlet, safe and leakproof. The color of the bottle body can be customized. Adequate inventory of various types of cylinders can be delivered quickly.
