Quick Details
-
Brand Name:
-
BORUI
-
Year:
-
2023
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
2920x1850x3850mm
-
Weight (T):
-
4.5 T
-
Motor Power (kw):
-
11 kw
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
No overseas service provided
-
Power(W):
-
1.5kw-7.5kw
-
Weight:
-
7500kg
-
Product name:
-
high speed 200ton hydraulic press
-
Color:
-
Customizable
-
Keyword:
-
Mechanical Metal Punching Machine
-
Nominal Pressure:
-
2000 KN/200T
-
Max.Working Pressure:
-
25MPA
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Return Force (kN):
-
2000 kN
-
Place of Origin:
-
Other Country
-
Brand Name:
-
BORUI
-
Year:
-
2023
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
2920x1850x3850mm
-
Weight (T):
-
4.5 T
-
Motor Power (kw):
-
11 kw
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
No overseas service provided
-
Power(W):
-
1.5kw-7.5kw
-
Weight:
-
7500kg
-
Product name:
-
high speed 200ton hydraulic press
-
Color:
-
Customizable
-
Keyword:
-
Mechanical Metal Punching Machine
-
Nominal Pressure:
-
2000 KN/200T
-
Max.Working Pressure:
-
25MPA

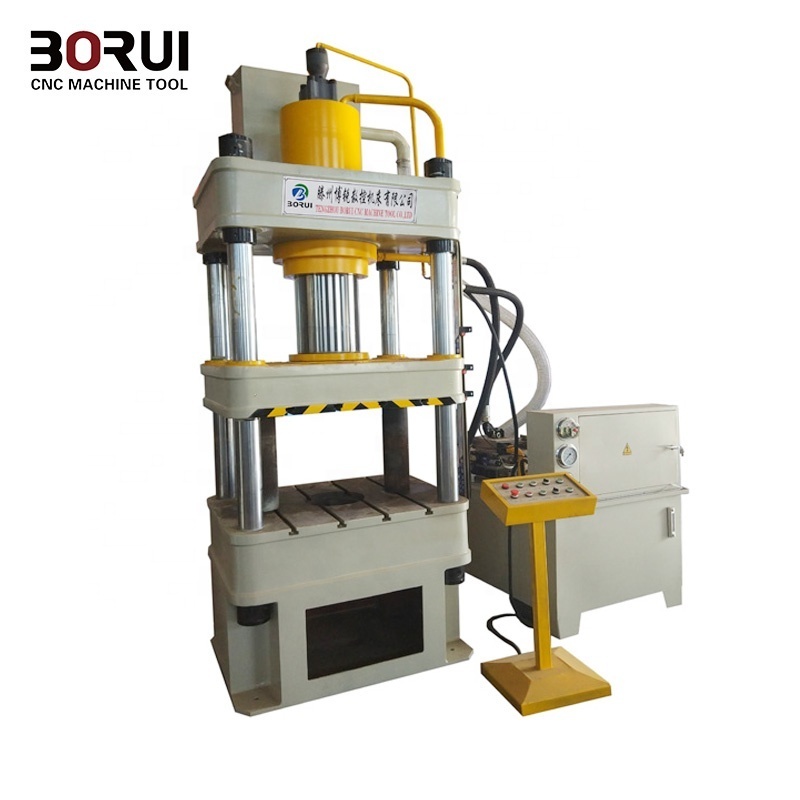

High speed 200 ton hydraulic press for track chain hydraulic press machine price 200 ton
Main feature
1. Three beam four-column structures, after the computer optimized design, economic, and apply.
2. Hydraulic control system uses an integrated cartridge valve systems and reliability, long life.
3. Hydraulic shock is small, reduces piping and leak-point links.
4. Stand-alone electrical control system which is reliable, intuitive motion, easy for maintenance.
5. Centralized control design, two kinds of mode of operation for choose.
6. Setting process can be realized easily.
7. Working pressure, stroke according to the technical needs within the limits prescribed adjustable.
Main Technical Data
|
Specification |
Nominal Pressure |
Ejector Pressure |
Maximum Hydraulic Work Force |
Maximum Slide of Stroke |
Maximum Stroke of Ejector Piston |
Maximum Distance Between Slide and Worktable |
Dimension of Machine (L-R) |
Dimension of Machine (B-A) |
Motor Power |
| Y32-63 | 630 | 190 | 25 | 500 | 150 | 800 | 2000 | 1500 | 7.5 |
| Y32-100 | 1000 | 190 | 25 | 600 | 200 | 900 | 2160 | 1504 | 7.5 |
| Y32-200 | 2000 | 350 | 25 | 700 | 250 | 1100 | 2825 | 2060 | 15 |
| Y32-315 | 3150 | 630 | 25 | 800 | 250 | 1250 | 3200 | 2100 | 22 |
| Y32-500 | 5000 | 1000 | 25 | 900 | 350 | 1500 | 4060 | 3525 |
30 |
