Quick Details
-
Core Components:
-
inquiry
-
Function:
-
glue dispensing
-
Voltage:
-
220V / 110V
-
Model:
-
JL-DB01
-
Air source:
-
<0.99MPa
-
Spit pressure:
-
0.05MPa-0.99MPa
-
Spit time:
-
Can adjust DIP program switch
-
Weight:
-
2.2KG
-
Spit:
-
>0.01ml
-
Size:
-
157*235*58MM
-
warranty:
-
1year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JULI
-
Weight (KG):
-
3.5
-
Core Components:
-
inquiry
-
Function:
-
glue dispensing
-
Voltage:
-
220V / 110V
-
Model:
-
JL-DB01
-
Air source:
-
<0.99MPa
-
Spit pressure:
-
0.05MPa-0.99MPa
-
Spit time:
-
Can adjust DIP program switch
-
Weight:
-
2.2KG
-
Spit:
-
>0.01ml
-
Size:
-
157*235*58MM
-
warranty:
-
1year
|
Model |
JL-DB01 |
|
Power supply |
AC220V 50HZ |
|
Air source |
<0.99MPa |
|
Spit pressure |
0.05MPa-0.99MPa |
|
Spit time |
Can adjust DIP program switch |
|
Function mode |
Manual mode / semi-automatic mode (quantitative dispensing) |
|
Vacuum back suction function |
Adjustable negative pressure control to 600 mm |
|
Repeat accuracy |
Accuracy plus or minus 0.05%, flat rate 600 times / minute |
|
Spit |
>0.01ml |
|

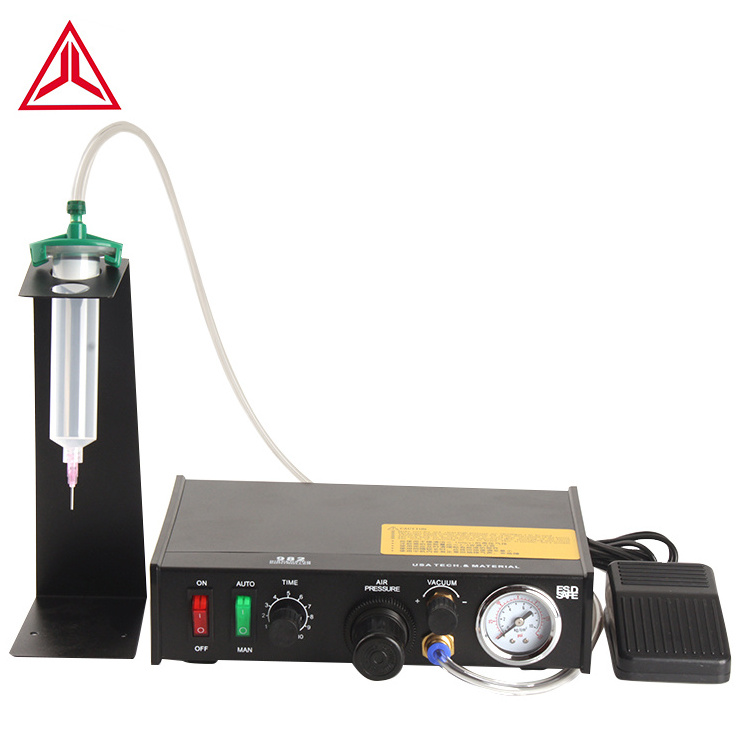

Parts description |
|
|
1. Power switch: Turn on the power, and the indicator light will show “ON” position. |
|
|
2.Air pressure regulator and barometer: control and indicate the air pressure added to the machine (adjust the air handle before adjusting it). |
|
|
3.Mode switch: put the control circuit in automatic or manual drip injection mode. |
|
|
4, timing control: adjust the duration of drip injection. |
|
|
5. Vacuum control: Adjust the vacuum back-pumping intensity applied to the air circuit. |
|
|
6. Breathing light: Quickly linked breathing thunder hole. |
|
|
7, foot switch socket: access to the foot switch. |
|
|
8. Intake pipe: high pressure air inlet. |
|
|
9, injection drip volume bins: divide the injection drip duration into four blocks. |
|
