Quick Details
-
Dimension(L*W*H):
-
4345*1750*2215mm
-
Name:
-

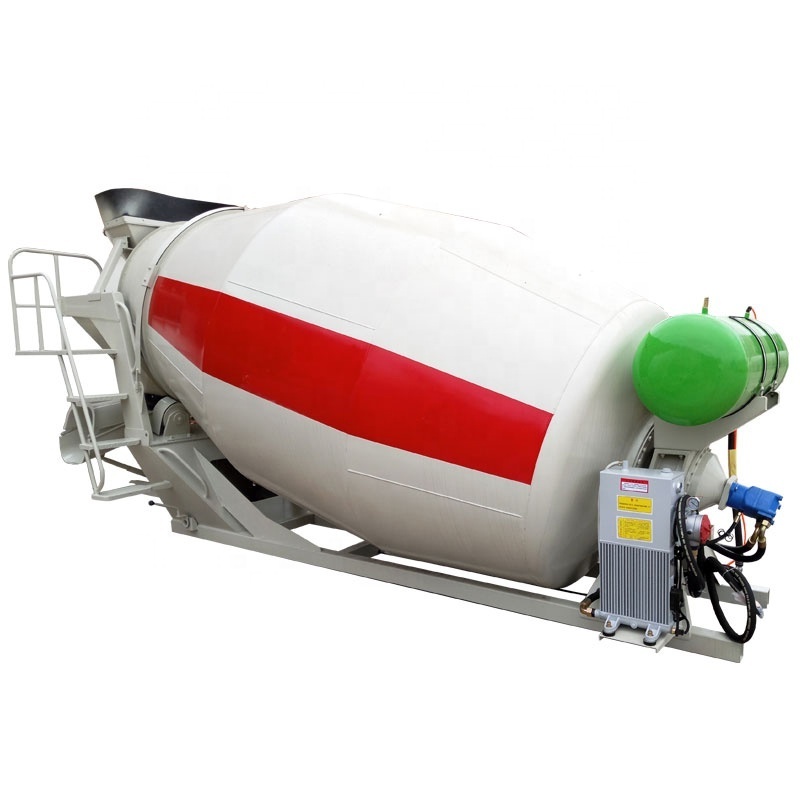

4cbm Concrete mixing tank
-
Mixing drum transmission capacity:
-
4m3
-
Stir mixing tube geometry capacity:
-
6.1m3
-
Filling ratio:
-
0.67
-
Rotating Speed:
-
0-10r/min
-
Tilting Angle:
-
16°
-
Material:
-
Manganese steel plate
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huaning
-
Weight:
-
4567 kg
-
Dimension(L*W*H):
-
4345*1750*2215mm
-
Name:
-
4cbm Concrete mixing tank
-
Mixing drum transmission capacity:
-
4m3
-
Stir mixing tube geometry capacity:
-
6.1m3
-
Filling ratio:
-
0.67
-
Rotating Speed:
-
0-10r/min
-
Tilting Angle:
-
16°
-
Material:
-
Manganese steel plate
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
1.Low energy consumption and environmental protection.
2.T he hydraulic system has the feature of lower energy consumption.
3.Simple quick-change construction can meet multipurpose operation of users.
4.The integrated multi-functional control handle makes operation simple.
Concrete truck can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate and stone.
| Parameter | HJGY.3 | HJGY.4 | HJGY.6 |
| Mixing drum transmission capacity (m³ ) | 3 | 4 | 6 |
| Stir mixing tube geometry capacity(m³) | 5.05 | 6.5 | 9.1 |
| Filling ratio | 0.67 | 0.67 | 0.67 |
| Feed rate(m³/min) | 3 | 3 | 3 |
| The feed rate(m³/min) | 1 | 1 | 1 |
| Axis titl(r/min) | 16°±15′ | 16°±15′ | 16°±15′ |
| Mixing drum speed(r/min) | 0-12 | 0-12 | 0-12 |
| Inlet height(mm) | 3300 | 3300 | 3300 |
| The minimum height of the discharge port(mm) | 1000 | 1000 | 1000 |
| Mixing tube specifications(mm) | φ1750x2700 | φ1755x3000 | φ2000x3000 |
| Dimensions(LxWxH) | 4000x1750x2100 | 4200x1800x2100 | 5600x2000x2600 |
