Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
50kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWEEK
-
Voltage:
-
110V/220V/380V/480V
-
Dimension(L*W*H):
-
2000mm*3000mm*1600mm
-
Weight (KG):
-
2500
-
Keywords:
-
aluminium plate poster board routing wood carving cnc router machine
-
Feeding height:
-
Can be 200~300mm
-
Work holding:
-
By clamps
-
Drive system:
-
Stepper motor, Lead shine driver 860
-
Control System:
-
Ncstudio card (DSP is optional)
-
Oiling system:
-
Automatic
-
Working Voltage:
-
AC380V±30V, 50HZ (22V 50Hz)
-
Command Code:
-
G Code, (*.nc*.mmg, *.u00,etc), *.eng
-
running environment temperature:
-
0 degree ~45 degree
-
relative humidity:
-
30~75%
Quick Details
-
Working Table Size(mm):
-
600*900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
50kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NEWEEK
-
Voltage:
-
110V/220V/380V/480V
-
Dimension(L*W*H):
-
2000mm*3000mm*1600mm
-
Weight (KG):
-
2500
-
Keywords:
-
aluminium plate poster board routing wood carving cnc router machine
-
Feeding height:
-
Can be 200~300mm
-
Work holding:
-
By clamps
-
Drive system:
-
Stepper motor, Lead shine driver 860
-
Control System:
-
Ncstudio card (DSP is optional)
-
Oiling system:
-
Automatic
-
Working Voltage:
-
AC380V±30V, 50HZ (22V 50Hz)
-
Command Code:
-
G Code, (*.nc*.mmg, *.u00,etc), *.eng
-
running environment temperature:
-
0 degree ~45 degree
-
relative humidity:
-
30~75%
Products Description

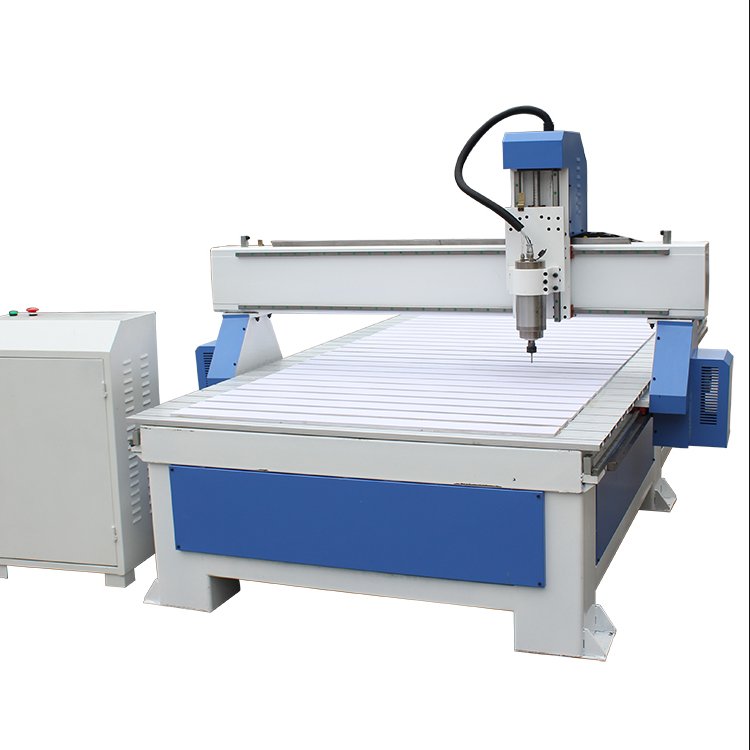

NEWEEK Customized 1325 vacuum table aluminium plate poster board routing wood carving cnc router machine
CNC Wood Routers are used for woodworking such as hollow wood caving, relief wood carving,
plane wood carving, 3D wood carving, Furniture production, etc.
1. engaged in arts, gifts, crafts, signs, marks, logos, moulds, models, boxes, etc. for advertising, home using or school
teaching, .
2. wood production, such as solid wood door, Craft wood door, MDF door, screens, windows, table and chairs, Cabinet, Room
decoration, etc.
3.some woodworking works like customized panel furniture production, we also have Intelligent CNC Routers with auto nesting
software, it has full functions of automatically uploading and downloading, automatically nesting, labeling, optimizing, vertical
drilling, slotting, grooving, cutting, carving and engraving, etc.
4. This machine is perfect for 3d engraving and flat objects at the same time. it is widely used in 3D carved plates with wave
patterns, cabinet door, solid wooden door, craft wooden door, non-painting wooden door, screen, craft windows, computer desk and
the panel furniture auxiliary processing etc.
5. Suitable for woodworking, stone, soft metal, plastic, PPE, PPR, advertising and other industries
teaching, .
2. wood production, such as solid wood door, Craft wood door, MDF door, screens, windows, table and chairs, Cabinet, Room
decoration, etc.
3.some woodworking works like customized panel furniture production, we also have Intelligent CNC Routers with auto nesting
software, it has full functions of automatically uploading and downloading, automatically nesting, labeling, optimizing, vertical
drilling, slotting, grooving, cutting, carving and engraving, etc.
4. This machine is perfect for 3d engraving and flat objects at the same time. it is widely used in 3D carved plates with wave
patterns, cabinet door, solid wooden door, craft wooden door, non-painting wooden door, screen, craft windows, computer desk and
the panel furniture auxiliary processing etc.
5. Suitable for woodworking, stone, soft metal, plastic, PPE, PPR, advertising and other industries
Product Paramenters
|
Model
|
|
1325
|
||
|
X*Y* Z Working size
|
|
1300*2500*200mm
|
||
|
Feeding height
|
|
Can be 200~300mm
|
||
|
Repositioning Accuracy
|
|
<0.01mm
|
||
|
Spindle Running Speed
|
|
0-24000rpm
|
||
|
Machine body and working table
|
|
Steel structure lathe bed, T-slot table of sectional material
body thickness is 3.5mm, 4.5mm, 6mm. 8~12mm. |
||
|
Work holding
|
|
By clamps
|
||
|
Transmission system
|
X
|
HAWIN Square rail,helical rack and pinion
|
||
|
|
Y
|
HAWIN Square rail,helical rack and pinion
|
||
|
|
Z
|
HAWIN square rail on Z,Germany Imported double-net ball screw
|
||
|
Spindle |
Power
|
3.0~3.5 KW water cooling spindle (air cooling is optional)
|
||
|
|
Inverter
|
Fuling
|
||
|
|
Collet diameter
|
Ø3.175-Ø12.7mm
|
||
|
Drive system
|
|
Stepper motor, Lead shine driver 860
|
||
|
Control System
|
|
Ncstudio card (DSP is optional)
|
||
|
Oiling system
|
|
Automatic
|
||
|
Working Voltage
|
|
AC380V±30V, 50HZ (22V 50Hz)
|
||
|
Command Code
|
|
G Code, (*.nc*.mmg, *.u00,etc), *.eng
|
||
|
running environment temperature
|
|
0 degree ~45 degree
|
||
|
relative humidity
|
|
30~75%
|
||
|
Working Software
|
|
Windows98/xp/7
|
||
|
Compatible Software
|
|
Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad
|
||
|
As the product improves, the parameters change
|
|
|
||
