Quick Details
-
Description:
-

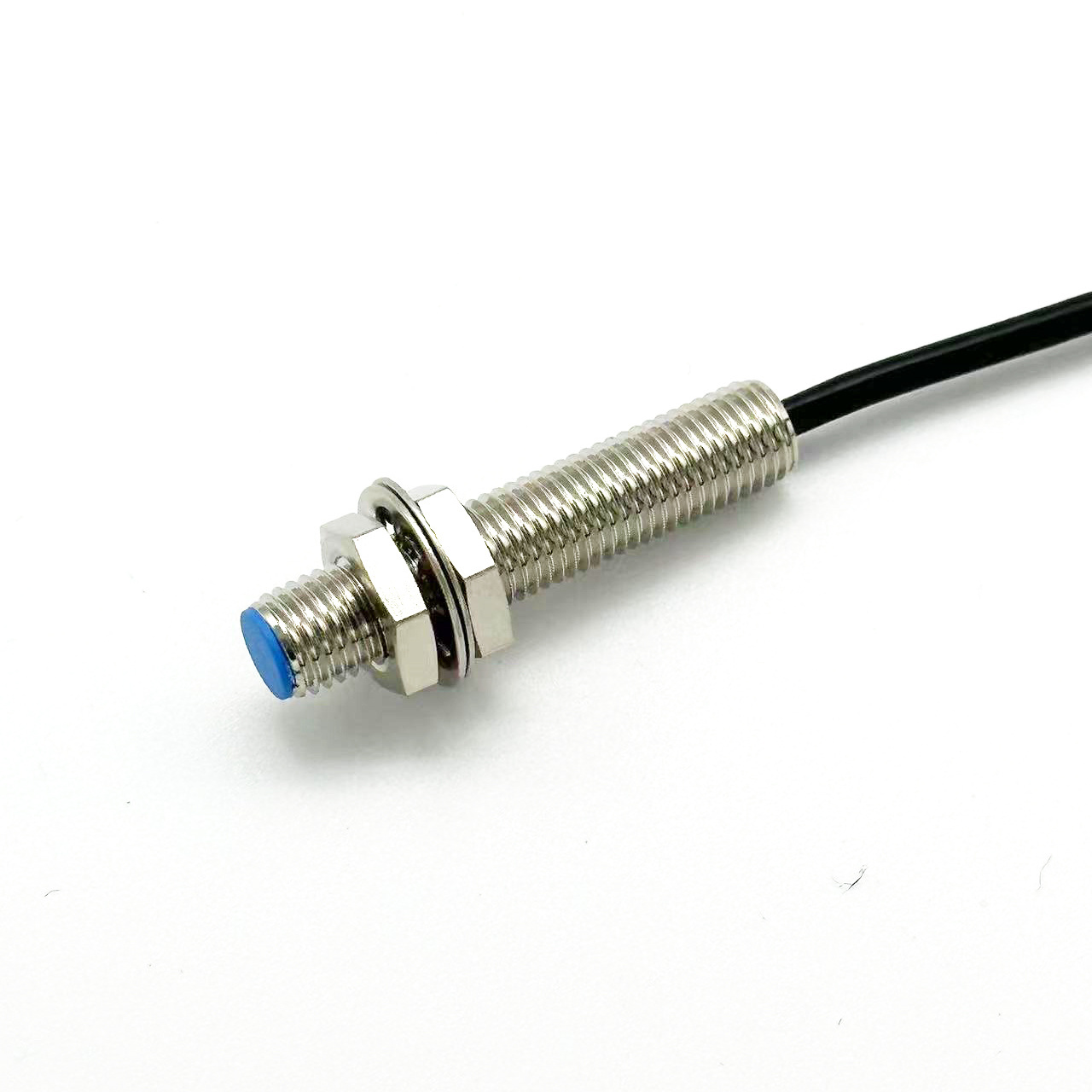

M8 Inductive Sensor, M8 Inductive Proximity Sensor
-
Model Number:
-
ITC08-F01DNO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DGKJ
-
Theory:
-
Inductive Proximity Sensor
-
Output:
-
NPN/PNP NO/NC(Digital signal)
-
Installation:
-
Flush
-
Voltage - Supply:
-
12-24VDC
-
Sensing Range:
-
1mm/customizable
-
Size / Dimension:
-
M8*40mm cylinder
-
Ambient temperature:
-
-20~70℃
-
Housing material:
-
Nickel-copper alloy
-
Sensing face:
-
PBT
-
Protection class:
-
IP67
-
Electrical connection:
-
2m PVC cable
Quick Details
-
Use:
-
Position Sensor
-
Series:
-
ITC08 Series
-
Mounting Type:
-
Flush
-
Description:
-
M8 Inductive Sensor, M8 Inductive Proximity Sensor
-
Model Number:
-
ITC08-F01DNO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DGKJ
-
Theory:
-
Inductive Proximity Sensor
-
Output:
-
NPN/PNP NO/NC(Digital signal)
-
Installation:
-
Flush
-
Voltage - Supply:
-
12-24VDC
-
Sensing Range:
-
1mm/customizable
-
Size / Dimension:
-
M8*40mm cylinder
-
Ambient temperature:
-
-20~70℃
-
Housing material:
-
Nickel-copper alloy
-
Sensing face:
-
PBT
-
Protection class:
-
IP67
-
Electrical connection:
-
2m PVC cable
Product Description
Specification
|
Part number
|
|
|
|
NPN NO
|
ITC08-F01DNO
|
|
|
NPN NC
|
ITC08-F01DNC
|
|
|
PNP NO
|
ITC08-F01DPO
|
|
|
PNP NC
|
ITC08-F01DPC
|
|
|
Technical specifications
|
|
|
|
Mounting type
|
Flush
|
|
|
Rated distance(Sn)
|
1mm
|
|
|
Dimensions
|
M8*40mm
|
|
|
Output
|
NO/NC(Depends on above part number)
|
|
|
Supply voltage
|
12...24VDC
|
|
|
Standard target
|
Fe 12*12*1t
|
|
|
Switch point drifts(%/Sr)
|
≤±10%
|
|
|
Hysteresis range(%/Sr)
|
1...10%
|
|
|
Repeat accuracy(R)
|
≤1%
|
|
|
Load current
|
≤200mA
|
|
|
Residual voltage
|
≤1.5V(DC 3 wires)
|
|
|
Consumption current
|
≤10mA(DC 3 wires)
|
|
|
Protection circuit
|
Short-circuit, overload, reverse polarity
|
|
|
Indicator
|
Red LED
|
|
|
Ambient temperature
|
-20ºC...70 ºC
|
|
|
Ambient humidity
|
35-95%RH
|
|
|
Switching frequency(F)
|
1500Hz(DC 3 wires)
|
|
|
Insulation resistance
|
≥500MΩ(500VDC)
|
|
|
Vibration resistance
|
10...50Hz(1.5mm)
|
|
|
Protection class
|
IP67
|
|
|
Connection type
|
2m PVC cable
|
|
|
Housing material
|
Nickel-copper alloy
|
|
.
