Quick Details
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
JARAY
-
Model Number:
-
T568
-
Warranty:
-
12 Months
-
Product name:
-
Truck Tire Changer
-
Color:
-
Red Blue
-
Certification:
-
CE / ISO9001
Quick Details
-
Motor Power:
-
1.5kw
-
Operating Pressure:
-
--
-
Power Supply:
-
220V/400V 50/60HZ1P/3P Optional
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
JARAY
-
Model Number:
-
T568
-
Warranty:
-
12 Months
-
Product name:
-
Truck Tire Changer
-
Color:
-
Red Blue
-
Certification:
-
CE / ISO9001

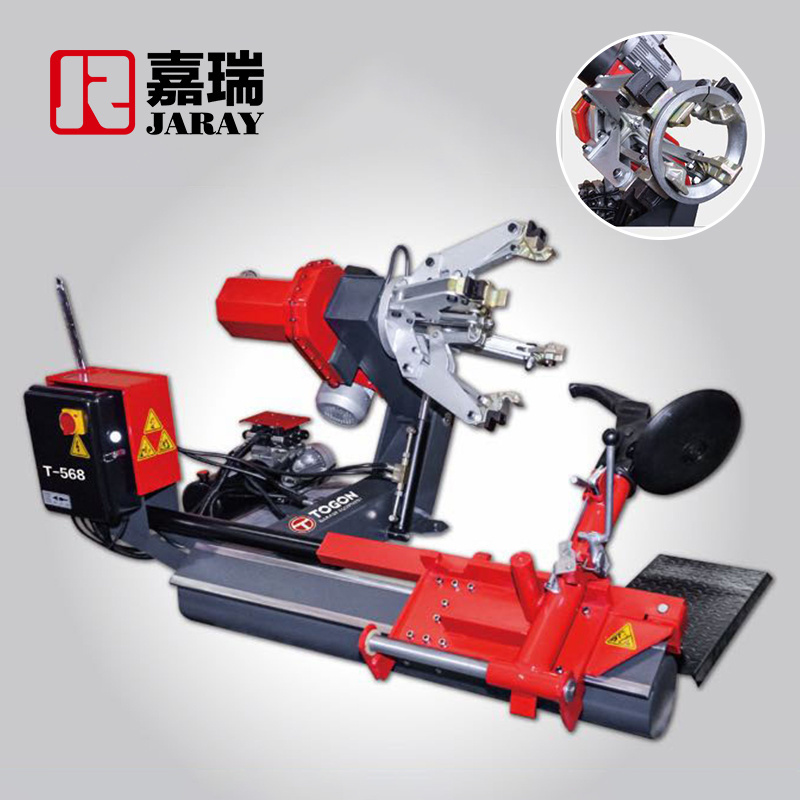

PRODUCTS INTRODUCTION：
◊ Semi-automatic truck tyre changer T568 universal self-centering chuck rim capacity 14" -26;
◊ Clockwise and anticlockwise rotation of chuck;
◊ Italian pump optional.
|
TECHNICAL DATA
|
|
|
|
Product Name
|
Truck tire changer
|
|
|
Product Model
|
T568
|
|
|
Rim Diameter
|
14''-26''
|
|
|
Max.Wheel Weight
|
500 kg
|
|
|
Max.Wheel Width
|
780 mm
|
|
|
Max.Wheel Diameter
|
1600 mm
|
|
|
Hydraulic Pump Motor
|
1.5kw 380v-3ph（220v optional）
|
|
|
Gearbox Motor
|
2.2kw 380v-3ph（220v optional）
|
|
|
Bead Breaker Force
|
2500 kg
|
|
|
Max. Torque
|
6457Nm
|
|
|
Operating Control Voltage
|
24 v
|
|
|
Machine Weight Approx
|
517 kg
|
|
|
Overall Dimensions Approx
|
2500*2000 mm
|
|
|
Power
|
220/400v 50/60HZ1P/3P Optional
|
|
PRODUCTS INTRODUCTION：
◊
Hydraulic motor system lets operation much more powerfu;
◊
Automatic hydraulic mounting arm finds precise angle;
◊
Double pressing roller suitable for different sizes of tubeless tyre;
◊
This vertical version truck tyre changer saves more space and works more efficiency.
|
TECHNICAL DATA
|
|
|
|
Product Name
|
Vertical Truck tire changer
|
|
|
Product Model
|
T588
|
|
|
Rim Diameter
|
19''-26''
|
|
|
Max.Wheel Weight
|
380 kg
|
|
|
Max.Wheel Width
|
470 mm
|
|
|
Max.Wheel Diameter
|
1400mm
|
|
|
Hydraulic Pump Motor
|
3.3kw 380v-3ph-50hz
|
|
|
Machine Weight Approx
|
485 kg
|
|
PRODUCTS INTRODUCTION：
◊
T980 super truck tyre changer has been specifically designed to mount and demount tyres from trucks, buses, tractors and earthmoving vehicles;
◊
Rim capacity 14" - 56";
◊
Bi-directional chuck with 2 rotational speeds;
◊
Italian pump optional.
|
TECHNICAL DATA
|
|
|
|
Product Name
|
Truck tire changer
|
|
|
Product Model
|
T980
|
|
|
Rim Diameter
|
14''-46''
|
|
|
Rim Capacity
|
14''-56''
|
|
|
Max.Wheel Weight
|
2000 kg
|
|
|
Max.Wheel Width
|
1200 mm
|
|
|
Max.Wheel Diameter
|
2500 mm
|
|
|
Hydraulic Pump Motor
|
3.3/4.0kw
|
|
|
Gearbox Motor
|
3.3/4.0kw
|
|
|
Machine Weight Approx
|
1175 kg
|
|
|
Power
|
400v 50HZ 3P
|
|
