- Product Details
- {{item.text}}
Quick Details
-
Product Name:
-

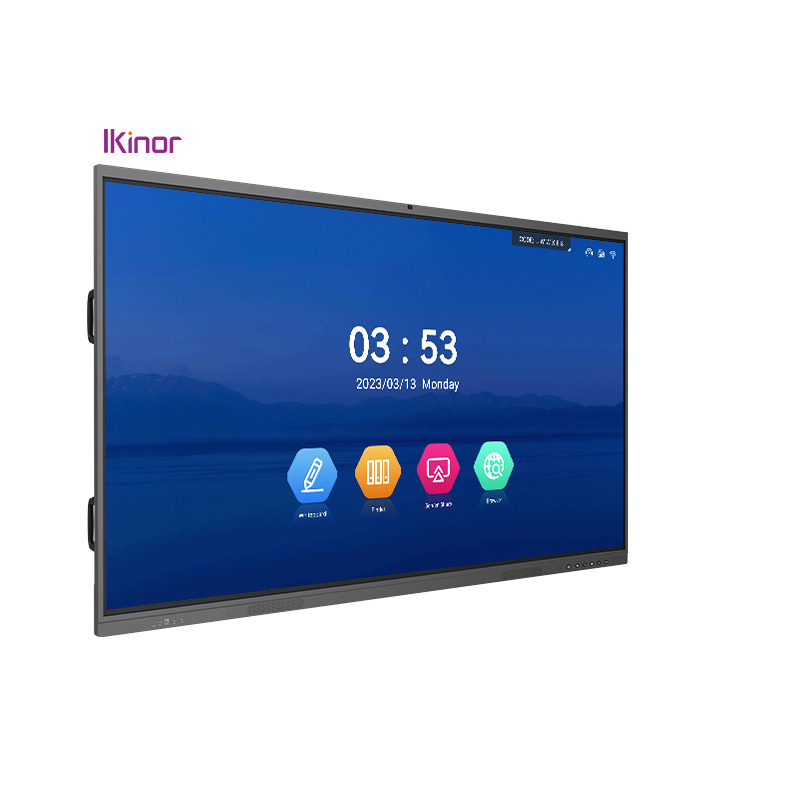

Interactive Flat Panel
-
Bezel color:
-
Aluminum frame(Black color)
-
Aspect Ratio:
-
16:9
-
Contrast Ratio:
-
1200:1
-
Brightness:
-
350cd/m2
-
System support:
-
Win10/Win8/Win7/Mac OS /Android/Chrome OS/Linux
-
Installation:
-
Wall Mountable
-
Services:
-
OEM ODM
-
MOQ:
-
1 Set
-
Certification:
-
CE FCC ROHS
Quick Details
-
Brand Name:
-
IKinor
-
Model Number:
-
IK98
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Interactive Flat Panel
-
Bezel color:
-
Aluminum frame(Black color)
-
Aspect Ratio:
-
16:9
-
Contrast Ratio:
-
1200:1
-
Brightness:
-
350cd/m2
-
System support:
-
Win10/Win8/Win7/Mac OS /Android/Chrome OS/Linux
-
Installation:
-
Wall Mountable
-
Services:
-
OEM ODM
-
MOQ:
-
1 Set
-
Certification:
-
CE FCC ROHS
Products Description
Product Paramenters
|
Display specification
|
|
|
|
|
|
|||||
|
Diagonal display size
|
|
65"
|
75"
|
86"
|
98"
|
|||||
|
Bezel color
|
Aluminum frame(Black color)
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Back Light
|
Direct type LED
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Active area (mm)
|
(H) * (V)
|
1428.48 * 803.52
|
1649.66 * 927.93
|
1895.04 * 1066.9
|
2159 * 1214
|
|||||
|
Resolution
|
3840*2160 /UHD
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Aspect Ratio
|
16:9
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Contrast Ratio
|
|
1200:1
|
1200:1
|
1200:1
|
1200:1
|
|||||
|
Colors
|
1.07 billion colors
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Brightness
|
350cd/m2
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Viewing angle
|
178°
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Glass hardness
|
Mohs-7 level
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Screen surface
|
4mm thickness Anti-Glare glass
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Panel Interactivity
|
|
|
|
|
|
|||||
|
Touch technology
|
IR touch
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Touch points
|
20 points writing / 20 points touch
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Touch accuracy
|
±1mm(Windows)
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Recognition
|
Finger or passive stylus
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Response Rate
|
<4ms(single touch)
<10ms(max touch inputs) |
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Minimum object size
|
2mm
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Response Time
|
<8 ms
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
System support
|
Win10/Win8/Win7/Mac OS
/Android/Chrome OS/Linux |
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Front side Connectivity
|
|
|
|
|
|
|||||
|
Front ports
|
USB3.0 * 3 lines (Public for both Android & PC) ; Touch out USB A type * 1 line; HDMI in 2.0 * 1 line.
|
|
|
|
|
|||||
|
Front Button
|
Power on/off
|
|
|
|
|
|||||
|
Front speaker
|
15W*2
|
|
|
|
|
|||||
|
Rear side Connectivity
|
|
|
|
|
|
|||||
|
HD-MI in
|
2
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
VGA in
|
1
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
VGA audio in
|
1
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
AV in
|
1
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Earephone out
|
1
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
SPDIF out
|
1
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
RJ45 in & out
(public for Android & PC) |
1
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Touch out USB B type
|
1
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
USB 2.0
|
2
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
TF card
|
1
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Windows OPS Slot
|
OPS & OPS-C Intel standard
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Hotspot
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
BT version
|
5
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
WiFi
|
802.11 a/b/g/n/ac embedded
(2.4G/5G Dual module) |
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Operating system
|
|
|
|
|
|
|||||
|
Android Version
|
Android 8.0
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
CPU
|
Dual-core A73 and dual-core A53 ，1.5GHz
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
GPU
|
Quad-core MaliG51
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
RAM
|
3GB
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
ROM
|
32GB
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Compliant with
|
Windows; Mac; Linux; Chrome OS
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Physical specifications
|
|
|
|
|
|
|||||
|
Net Weight
|
(kg±2)
|
39
|
56
|
64
|
98
|
|||||
|
Gross Weight
|
(kg±2)
|
49
|
68
|
83
|
143
|
|||||
|
Overall size(mm)
(with OPS depth) |
(L*W*H)
|
1485.74*90.5*909.9
|
1707.9*97.7*1035.1
|
1954.1*90.7*1173.7
|
2225 * 99.9 * 1330.9
|
|||||
|
Carton size(mm)
|
(L*W*H)
|
1640*215*1058
|
1865*220*1195
|
2115*240*1332
|
2410 *350 *1660
|
|||||
|
VESA
|
(mm)
|
500*400
|
600*400
|
800*400
|
800*600
|
|||||
|
Electrical
|
|
|
|
|
|
|||||
|
Input Voltage
|
100-240V AC
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Power Consumption(Standby)
|
<0.5W
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Power Consumption
|
|
Maximun< 210W
|
Maximun< 300W
|
Maximun< 380W
|
Maximun< 400W
|
|||||
|
Environmental
|
|
|
|
|
|
|||||
|
Working
Temperature |
0℃ ~ 40℃
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Storage
Temperature |
一10℃ ~ 50℃
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Working Humidity
|
20% ~ 80% RH
Non-Condensing |
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Storage Humidity
|
10% ~ 60% RH
Non-Condensing |
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Camera(Optional)
|
|
|
|
|
|
|||||
|
Optical Zoom
|
Focus
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Viewing angle
|
102°
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Sensor pixel
|
8.0M
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Whitebalance
|
Automatic
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Resolution
|
3840*2160
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
8 Microphone array(Optional)
|
|
|
|
|
|
|||||
|
Sound collection distance
|
10m
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Voice tracking
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Noice suppression
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Accessories
|
|
|
|
|
|
|||||
|
Accessories
|
Pen * 1pcs, Remote control *1pcs, 1.5m power cord *1pcs,
1.5m HDMI cable *1pcs, wall mount kit;
Wireless dongle(Optional); Mobile trolley cart(Optional); Smart Pen (Optional) |
|
|
|
|
|||||
