Quick Details
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOION
-
Special:
-
Dim, Dual White, RGB, RGBW 4 in 1
-
Protection:
-
Short Circuit Protection
-
Certifications:
-
CE,ROHS
-
Sync Control pcs:
-
No limited quantity
-
DMX/RDM signal:
-
DMX/RDM Signal
-
Supply voltage:
-
DC12V~24V
-
Max. Output power:
-
72W*4CHs/12V; 144W*4CHs/24V
-
Output current:
-
PWM<=2KHz: 6A/CH PWM=4KHz: 5A/CH PWM=7.8KHz: 4A/CH PWM=15.6KHz: 3A/CH
-
Gamma curve:
-
0.1,0.5,1,1.5,2.2
-
memory function:
-
Yes
Quick Details
-
Warranty(Year):
-
3-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
144W
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOION
-
Special:
-
Dim, Dual White, RGB, RGBW 4 in 1
-
Protection:
-
Short Circuit Protection
-
Certifications:
-
CE,ROHS
-
Sync Control pcs:
-
No limited quantity
-
DMX/RDM signal:
-
DMX/RDM Signal
-
Supply voltage:
-
DC12V~24V
-
Max. Output power:
-
72W*4CHs/12V; 144W*4CHs/24V
-
Output current:
-
PWM<=2KHz: 6A/CH PWM=4KHz: 5A/CH PWM=7.8KHz: 4A/CH PWM=15.6KHz: 3A/CH
-
Gamma curve:
-
0.1,0.5,1,1.5,2.2
-
memory function:
-
Yes
Product Description

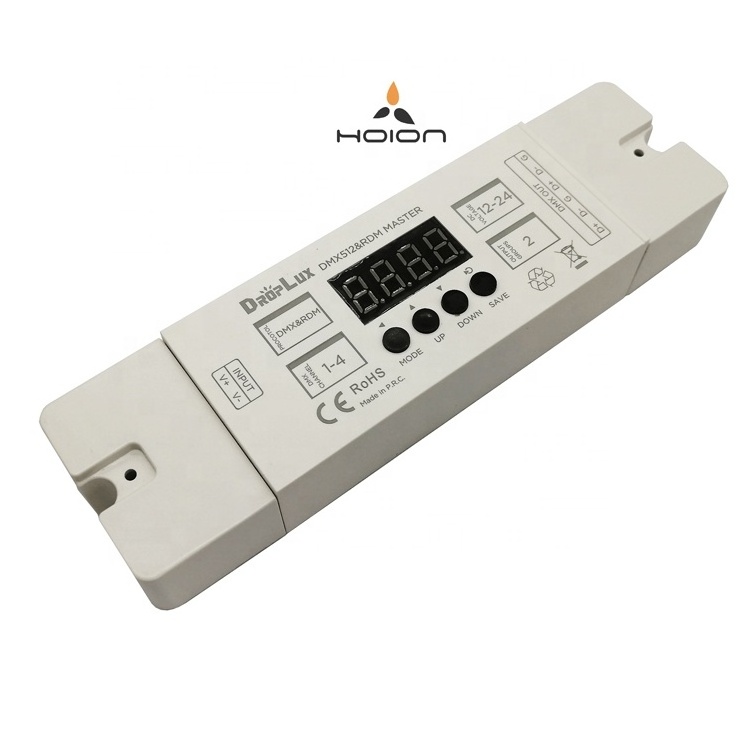

HX-DR02
DMX512/RDM Master
HX-DR02 is the DMX / RDM master control, supports DMX512 and RDM protocols, and outputs DMX / RDM signals to DMX / RDM decoders;
supports the selection of 4 modes: Single color / CCT / RGB / RGBW; users can choose different change mode and change speed for different output types, also can identify the number of devices and change the device address through the RDM function of the controller.
HX-DR02 is the DMX / RDM master control, supports DMX512 and RDM protocols, and outputs DMX / RDM signals to DMX / RDM decoders;
supports the selection of 4 modes: Single color / CCT / RGB / RGBW; users can choose different change mode and change speed for different output types, also can identify the number of devices and change the device address through the RDM function of the controller.
Detailed Images
1. Installation
2. Demension
3. Product feature
(1) Short Circuit Protection
(2)
Variable Dimmer Response (Gamma) Curve
(3)
RDM-Capable
Product Presentation
Technical Parameters
|
Working temperature
|
-20-60℃
|
|
Supply voltage
|
DC12V~24V
|
|
DMX profiles
|
4 profiles
PH01 for RGB LED(3 CH) PH02 for RGBW LED(4 CH) PH03 for CCT LED(3 CH) PH04 for Single color LED(1 CH) |
|
Static power consumption
|
<1W
|
|
Output signal
|
DMX512/RDM
|
|
Output gray
|
100 levels
|
|
Speed of modes
|
100 levels
|
Application
Certificate
CE Certification
RoHS Certification
