Quick Details
-
Warranty of core components:
-
3 Year
-
Weight (KG):
-
1150
-
Motor Power (kW):
-
15
-
Single line processing capability:
-
Round steel 4-10mm; screw thread steel 4-8mm
-
Double line processing capability:
-
Round steel 4-6mm; screw thread steel 4-6mm
-
Maximum bending angle:
-
180 Positive
-
Maximum bending speed:
-
800 /sec
-
maximum towing speed:
-
60m/min
-
Average power consumption:
-
4.5kw/h
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Chuangneng
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
3 Year
-
Weight (KG):
-
1150
-
Motor Power (kW):
-
15
-
Single line processing capability:
-
Round steel 4-10mm; screw thread steel 4-8mm
-
Double line processing capability:
-
Round steel 4-6mm; screw thread steel 4-6mm
-
Maximum bending angle:
-
180 Positive
-
Maximum bending speed:
-
800 /sec
-
maximum towing speed:
-
60m/min
-
Average power consumption:
-
4.5kw/h
Product Description

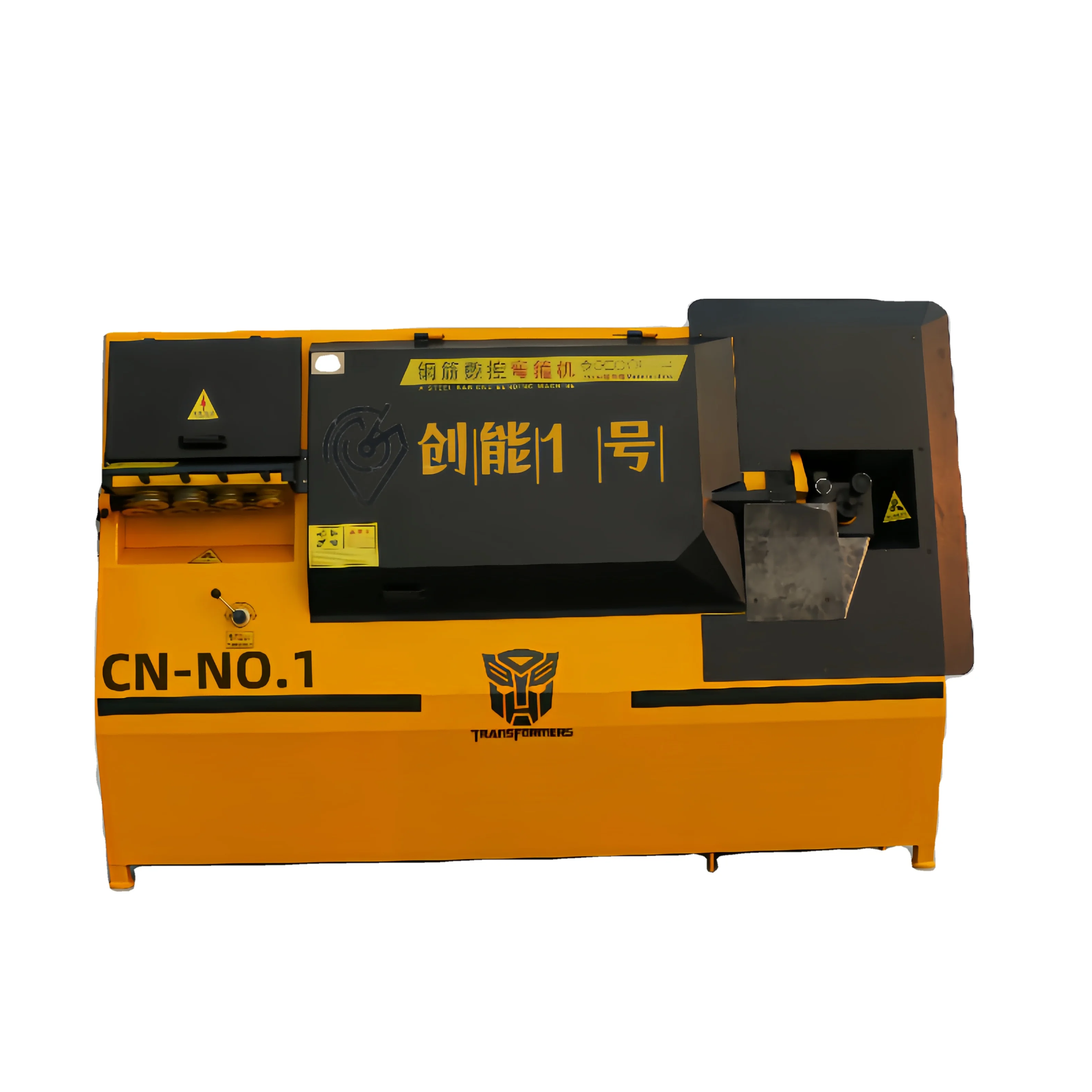

The stirrup machine molds wire rod raw materials to stirrup products in one go. It can process cold and hot-rolled high-strength wire rod steel bars. It adopts intelligent control and occupies a small area. It can process square, jumbo, diamond, and other shapes of various sizes and specifications. Polygons, etc., equipped with an automatic material receiving device, and also has a straightening function, making one machine multi-purpose.
Specification
|
|
|
|
|
Round steel 4-10mm
|
|
|
Screw thread steel 4-8mm
|
|
|
Round steel 4-6mm
|
|
|
Screw thread steel 4-8mm
|
|
Bending angle
|
180°
|
|
Maximum bending speed
|
800°/sec
|
|
Maximum towing speed
|
60m/min
|
|
Precise length
|
±1mm
|
|
Precise angle
|
±1°
|
|
Power
|
14kw
|
|
Average power consumption
|
4.5kw/h
|
|
Gross weight
|
1150kg
|
|
Size
|
2600*800*1700mm
|
|
Optional
|
Automatic mechanical arm
|
Packing & Delivery
Wooden packaging for stirrup bending machine.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
